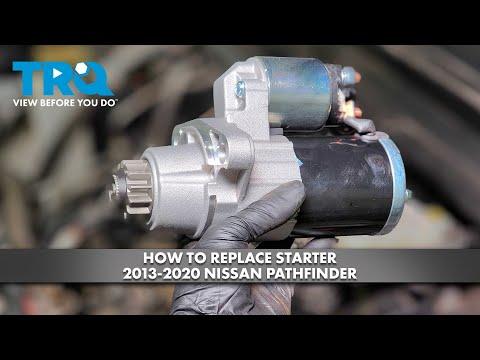

🔧 Pathfinder - Starter Motor Replacement

The starter motor cranks your engine when you turn the key (or press Start). If it’s failing, you may get a single click, slow cranking, or no crank at all even with a good battery.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching the starter wiring (the main cable is always “hot”).
• ⚠️ If you raise your Pathfinder, support it on jack stands—never rely on a floor jack alone.
• ⚠️ Let the exhaust cool completely if you’ll be working underneath.
• ⚠️ Keep keys/fob away from the vehicle so it can’t crank unexpectedly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Ratchet (3/8" drive)
• Ratchet (1/2" drive)
• Socket set (8mm-19mm)
• 10mm socket
• 12mm socket
• 14mm socket
• 6" extension (3/8" drive)
• 12" extension (3/8" drive)
• Universal swivel joint (3/8" drive)
• Torque wrench (10-100 ft-lbs)
• Trim clip remover
• Flathead screwdriver
• Needle-nose pliers
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Starter solenoid terminal nut (if damaged) - Qty: 1
• Electrical contact cleaner - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park your Pathfinder on level ground and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Open the hood and disconnect the battery: use a 10mm socket to remove the negative (-) terminal first, then secure it so it can’t spring back.
• If you’ll work from below, raise the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine undercover (if equipped)

• Use a trim clip remover for plastic clips and a 10mm socket for small bolts to remove the lower splash shield.
• Set the clips/bolts aside in a tray so they don’t get lost.

Step 2: Create access to the starter area

• From above, remove the intake snorkel/ducting if it blocks access: loosen hose clamps using a flathead screwdriver and remove any bolts with a 10mm socket.
• Use a work light to locate the starter at the transmission bellhousing area (rear of engine).
• Take a quick photo of wiring first.

Step 3: Disconnect the starter electrical connections

• Unplug the small starter signal connector by hand; if it’s stubborn, use needle-nose pliers gently on the tab (don’t pull on the wires).
• Remove the rubber boot covering the main battery cable stud on the starter.
• Use a 12mm socket to remove the nut for the main cable, then lift the cable off the stud.
• Spray light electrical contact cleaner on dirty terminals and let dry.

Step 4: Remove the starter mounting bolts

• Support the starter with one hand.
• Use a 14mm socket with a 12" extension (3/8" drive) and universal swivel joint (3/8" drive) as needed to remove the starter mounting bolts.
• Remove the starter from the bellhousing area and guide it out carefully.

Step 5: Install the new starter

• Compare the new starter to the old one (mounting ears, connector, cable stud position).
• Position the starter and hand-thread the mounting bolts to avoid cross-threading.
• Tighten the mounting bolts with a 14mm socket, then finish with a torque wrench (10-100 ft-lbs): Torque to 44 Nm (32 ft-lbs).

Step 6: Reconnect the wiring

• Install the main battery cable onto the stud and tighten the nut with a 12mm socket: Torque to 9 Nm (80 in-lbs).
• Apply a thin film of dielectric grease to help prevent corrosion, then refit the rubber boot.
• Reconnect the small signal connector until it clicks.

Step 7: Reinstall intake ducting and undercover

• Reinstall any intake ducting removed using a 10mm socket and tighten hose clamps with a flathead screwdriver.
• Reinstall the lower splash shield using a 10mm socket and trim clip remover (for clips).

Step 8: Reconnect the battery

• Reconnect the negative (-) terminal using a 10mm socket: Torque to 5 Nm (44 in-lbs).

---

✅ After Repair

• Start your Pathfinder and confirm it cranks strongly and starts normally.
• Listen for abnormal grinding or whining (can indicate misalignment or a loose mount).
• Check that no warning lights appear and that your intake ducting is fully seated (no hissing/air leaks).
• If the battery was weak, consider charging/testing it—low voltage can mimic starter problems.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$1,050 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $370-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
