🔧 Sportage - Starter Motor Replacement

The starter motor cranks your engine when you turn the key/push the start button. On your Sportage, it’s mounted to the transmission bellhousing, so the job is mostly about safe access from underneath and carefully reconnecting the wiring.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery terminal first to prevent an electrical short.
• ⚠️ Support the Sportage with jack stands—never rely on a floor jack alone.
• ⚠️ Let the exhaust/catalyst cool fully before working near it.
• ⚠️ Keep the key/fob away from the vehicle while the battery is connected.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–100 Nm range)
• 6" socket extension
• 12" socket extension
• 3/8" universal joint swivel (specialty)
• Trim clip removal tool
• Flathead screwdriver
• Needle-nose pliers
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter electrical terminal nut (if damaged) - Qty: 1
• Starter solenoid signal connector clip (if damaged) - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• 🧱 Chock the rear wheels using wheel chocks.
• 🔋 Open the hood and disconnect the battery negative terminal using a 10mm socket. Tuck the cable aside so it can’t spring back.
• 🛠️ If equipped, remove the lower engine under cover/splash shield for access.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the Sportage

• Use a floor jack (rated 3-ton minimum) to lift the front of the vehicle at the proper front jacking point.
• Place jack stands (rated 3-ton minimum) under the front support points and lower the vehicle onto them.
• Shake-test the vehicle lightly to confirm it’s stable before going underneath.

Step 2: Remove the lower splash shield (if equipped)

• Use a trim clip removal tool and flathead screwdriver to remove plastic clips.
• Use a 10mm socket to remove any small bolts holding the cover on.
• Set the shield and hardware aside in a tray.

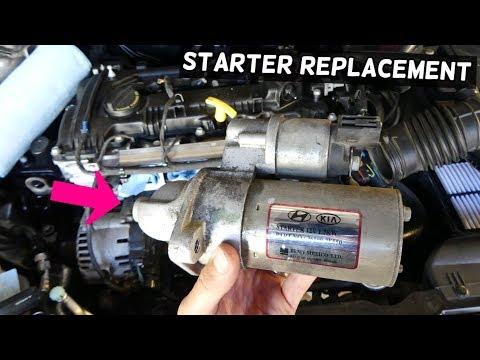

Step 3: Locate the starter

• Use a work light and look where the engine meets the transmission (bellhousing area).
• You’ll see the starter body and a smaller cylinder on it (the solenoid) with a thick battery cable attached.
• Take a photo before unplugging anything.

Step 4: Disconnect the starter electrical connections

• Remove any protective rubber boot from the large battery cable stud on the starter.
• Use a 12mm socket to remove the nut on the large B+ cable and pull the cable off the stud.
• Press the tab and unplug the smaller solenoid signal connector. Use needle-nose pliers only if needed (don’t crush the connector).
• Keep wiring away from the exhaust.

Step 5: Remove the starter mounting bolts

• Support the starter with one hand.
• Use a 14mm socket, 3/8" drive ratchet, and a 6" or 12" socket extension to remove the starter mounting bolts.
• If access is tight, use a 3/8" universal joint swivel (specialty). (A swivel lets the socket bend slightly to reach a bolt.)
• Remove the starter from the bellhousing and guide it out carefully.

Step 6: Compare the old and new starter

• Confirm the mounting holes match and the electrical connections are in the same positions.
• Clean the mounting surface on the transmission with a dry rag (no oil).

Step 7: Install the new starter

• Position the starter into place by hand and start the mounting bolts by hand first (prevents cross-threading).
• Tighten the mounting bolts using a 14mm socket and 3/8" drive ratchet.
• Final tighten with a 3/8" drive torque wrench: Torque to 44–54 Nm (32–40 ft-lbs).
• (A torque wrench is a tool that clicks at the exact tightness so you don’t strip threads.)

Step 8: Reconnect the electrical connections

• Install the large B+ cable onto the starter stud and thread the nut on by hand.
• Tighten the nut using a 12mm socket: Torque to 9–12 Nm (80–106 in-lbs).
• Plug in the solenoid signal connector until it clicks.
• Reinstall the protective rubber boot over the B+ terminal.

Step 9: Reinstall the splash shield and lower the vehicle

• Reinstall the under cover using the 10mm socket and the trim clip removal tool for clips.
• Use the floor jack (rated 3-ton minimum) to lift slightly, remove jack stands, then lower to the ground.

Step 10: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.
• Torque to 5–6 Nm (44–53 in-lbs).

---

✅ After Repair

• 🔍 Start the engine and confirm it cranks strongly with no clicking.
• 🔊 Listen for abnormal grinding right after start (can indicate misalignment).
• 🧯 Check that the B+ terminal boot is fully covering the stud.
• 🛑 If you get a no-crank, recheck: battery tightness, solenoid connector fully clicked, and the B+ nut tight.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
