🔧 Grand Cherokee - Starter Motor Replacement

Your Grand Cherokee’s starter motor cranks the engine when you turn the key/push the button. If it’s failing, you may get a single click, slow/no crank, or intermittent starting. Replacement is mostly an access job from underneath on the 3.6L.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable first to prevent an electrical short.
• ⚠️ Support your Grand Cherokee on jack stands; never rely on a jack alone.
• ⚠️ Let the exhaust cool; the starter area can be near hot components.
• ⚠️ Keep the key fob away from the vehicle while working to avoid accidental wake-up.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 22mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• 3/8" drive extension set (3", 6", 12")
• 3/8" drive universal joint swivel (specialty)
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• Torque wrench (10–150 ft-lbs range)
• Trim clip tool
• Flathead screwdriver
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Battery terminal anti-corrosion pads (optional) - Qty: 1
• Dielectric grease (optional) - Qty: 1

---

📋 Before You Begin

• Park on level ground, turn the ignition off, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and locate the battery in the engine bay.
• Plan to keep hardware organized by area (skid plate, liner, starter bolts).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative (–) battery terminal clamp.
• Remove the negative cable and tuck it aside so it can’t spring back to the post.
• Torque to 9 Nm (80 in-lbs) when reinstalling the terminal clamp.

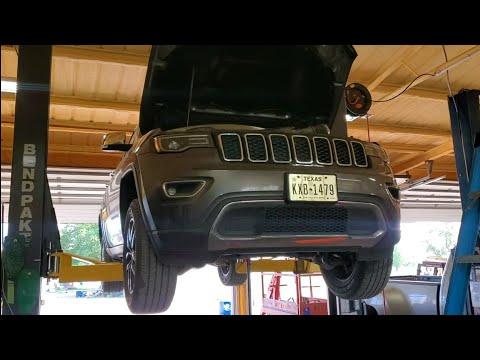

Step 2: Raise and support your Grand Cherokee

• Use a floor jack (rated 3-ton minimum) to lift the front of the vehicle at the proper front jacking point.
• Set it down securely on jack stands (rated 3-ton minimum).
• Shake the vehicle gently to confirm it’s stable before going underneath.

Step 3: Remove the right front wheel (for access)

• Use a 22mm socket and 1/2" drive breaker bar to loosen lug nuts, then remove them.
• Remove the wheel and set it aside.
• Torque to 135 Nm (100 ft-lbs) when reinstalling the lug nuts.

Step 4: Remove the right front inner splash shield (as needed)

• Use a trim clip tool to pop out plastic push-clips.
• Use an 8mm socket to remove any small screws holding the liner edge.
• Pull the liner back enough to reach toward the starter area.
• Work slowly to avoid breaking clips.

Step 5: Remove the front skid plate(s) (Trailhawk)

• Use a 13mm socket to remove the skid plate bolts.
• Support the skid plate with one hand as the last bolts come out.
• Set the skid plate(s) aside.

Step 6: Locate the starter and remove the wiring

• The starter sits at the engine-to-transmission joint on the passenger side.
• Use a 13mm socket to remove the nut for the main battery cable (B+).
• Remove the small control connector by hand; use a flathead screwdriver gently if the tab is stubborn.
• Torque to 13 Nm (115 in-lbs) when reinstalling the B+ cable nut.
• Cover the B+ cable end so it can’t touch metal.

Step 7: Remove the starter mounting bolts

• Use a 15mm socket, 3/8" drive extension set (3", 6", 12"), and a 3/8" drive universal joint swivel (specialty) to remove the starter bolts.
• Universal joint swivel means a joint that lets the socket bend to reach angled bolts.
• Support the starter with your free hand as the last bolt comes out.

Step 8: Remove the starter and compare parts

• Work the starter out through the opening (you may need to rotate it slightly).
• Compare the new starter to the old: mounting ears, electrical studs, and connector match.

Step 9: Install the new starter

• Position the new starter and hand-thread the mounting bolts to avoid cross-threading.
• Use a 15mm socket to tighten the starter bolts evenly.
• Torque to 54 Nm (40 ft-lbs) for the starter mounting bolts.

Step 10: Reconnect the starter wiring

• Reconnect the small control connector by hand until it clicks.
• Install the main B+ cable and tighten using a 13mm socket.
• Torque to 13 Nm (115 in-lbs) for the B+ cable nut.
• Don’t over-tighten; studs can snap.

Step 11: Reinstall skid plate(s), liner, and wheel

• Reinstall skid plate(s) using a 13mm socket and tighten securely.
• Reposition the splash shield and reinstall fasteners using an 8mm socket and trim clip tool.
• Reinstall the wheel using a 22mm socket.
• Torque to 135 Nm (100 ft-lbs) for lug nuts in a star pattern.

Step 12: Lower the vehicle and reconnect the battery

• Use the floor jack (rated 3-ton minimum) to lift slightly, remove jack stands (rated 3-ton minimum), and lower the vehicle.
• Reconnect the negative battery terminal using a 10mm socket.
• Torque to 9 Nm (80 in-lbs) for the battery terminal clamp.

---

✅ After Repair

• Start your Grand Cherokee and verify it cranks strongly and starts normally.
• Turn the steering wheel lock-to-lock and listen for rubbing (liner not seated).
• Check that no warning lights appear; if any do, recheck battery connection and starter connectors.
• Inspect underneath for any tools left behind and confirm skid plates are tight.

---

💰 DIY vs Shop Cost

Shop Cost: $500-$900 (parts + labor)

DIY Cost: $160-$350 (parts only)

You Save: $340-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
