🔧 HR-V - Starter Motor Replacement

The starter motor spins your engine so it can start. If it’s failing, you may hear a single click, slow cranking, or nothing at all even with a good battery. On your HR-V, the starter sits near the transmission bellhousing and usually requires removing the air intake parts (and sometimes the battery) for access.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable first to prevent an electrical short.
• Let the engine cool; the starter is close to hot engine parts.
• If you raise the vehicle, support it with jack stands; never rely on a jack alone.
• Avoid touching the starter power terminal with tools while the battery is connected.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive extension set (3", 6", 10")
• 3/8" drive wobble extension (specialty)
• Torque wrench (10-80 Nm range)
• Flat-blade screwdriver
• Needle-nose pliers
• Trim clip removal tool
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Air intake hose clamp(s) - Qty: 1-2
• Battery terminal anti-corrosion pads - Qty: 2

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and keep the key fob away from the vehicle while working.
• Disconnect the battery: use a 10mm socket to remove the negative terminal first, then isolate it so it can’t spring back.
• A wobble extension bends slightly for tight bolts.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the air intake ducting

• Use a flat-blade screwdriver to loosen the intake hose clamps at the air box and throttle body.
• Unclip/unbolt any snorkel or resonator pieces using a 10mm socket and a trim clip removal tool as needed.
• Lift the intake ducting out and set it aside.

Step 2: Improve access (battery and tray, if needed)

• If access is tight, remove the battery hold-down using a 10mm socket.
• Lift out the battery (it’s heavy—keep it upright).
• Remove the battery tray fasteners using a 10mm socket and remove the tray.

Step 3: Locate the starter and unplug the small connector

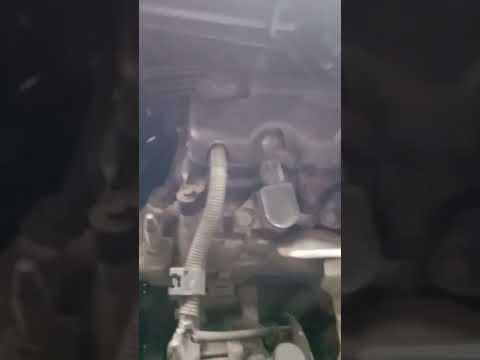

• Find the starter mounted to the transmission bellhousing (cylindrical motor with a smaller solenoid attached).
• Press the tab and unplug the small starter solenoid connector by hand; use needle-nose pliers only if needed (don’t crush it).

Step 4: Remove the starter main power cable

• Pull back the rubber boot on the starter’s main power terminal.
• Use a 12mm socket to remove the nut and lift the cable off the stud.
• Move the cable aside so it cannot touch metal.

Step 5: Remove the starter mounting bolts

• Support the starter with one hand.
• Use a 14mm socket, 3/8" ratchet, and a 3/8" extension (or 3/8" wobble extension) to remove the starter mounting bolts.
• Pull the starter straight out from the bellhousing.

Step 6: Install the new starter

• Position the new starter into the bellhousing and start the mounting bolts by hand to avoid cross-threading.
• Tighten the mounting bolts using a 14mm socket and torque wrench: Torque to 44 Nm (32 ft-lbs).

Step 7: Reconnect the starter wiring

• Install the main power cable on the starter stud and tighten the nut using a 12mm socket and torque wrench: Torque to 9.8 Nm (7 ft-lbs).
• Reinstall the rubber boot over the terminal.
• Plug in the small solenoid connector until it clicks.

Step 8: Reinstall intake parts (and battery if removed)

• Reinstall the battery tray using a 10mm socket (if removed).
• Reinstall the battery and hold-down using a 10mm socket.
• Reconnect battery terminals using a 10mm socket: positive first, negative last. Torque to 5 Nm (44 in-lbs).
• Reinstall the intake ducting and tighten clamps using a flat-blade screwdriver.

---

✅ After Repair

• Start the engine and confirm it cranks strongly with no clicking.
• Check that no warning lights stay on after a short drive.
• Perform an idle relearn after battery disconnect: warm engine fully, turn all accessories off, and let it idle undisturbed for about 5 minutes.
• Reset the clock and any radio presets if they were lost.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $160-$420 (parts only)

You Save: $290-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
