🔧 Focus - Starter Motor Replacement

The starter motor spins your Focus’s engine to get it running. Replacement usually involves disconnecting the battery, removing the electrical cables from the starter, unbolting it from the transmission bellhousing, and installing the new unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent electrical shorts.
• ⚠️ Support the car with jack stands on solid, level ground; never rely on a floor jack alone.
• ⚠️ Let the engine/exhaust cool before working underneath.
• ⚠️ Keep the ignition key away from the car while your hands are near wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 1/4" ratchet
• 3/8" ratchet
• 6" extension
• 12" extension
• Universal joint swivel adapter
• Torque wrench (10–100 Nm range)
• Trim clip removal tool
• Flathead screwdriver
• Pick tool
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Battery terminal end (if damaged/corroded) - Qty: 1
• Starter main power cable nut (if damaged) - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the shifter in neutral, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Open the hood and keep your key/fob away from the car.
• Plan for memory loss: your radio presets/clock may reset when the battery is disconnected.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket and 1/4" ratchet to loosen the negative battery terminal clamp and remove it.
• Tuck the cable end aside so it cannot spring back onto the battery post.
• Negative off first, on last.

Step 2: Remove the air intake duct (for access)

• Use a flathead screwdriver or 8mm socket to loosen the hose clamp(s) on the intake duct.
• Disconnect any small hose/connector carefully using a pick tool if it’s stuck.
• Lift the duct out and set it aside.

Step 3: Raise and support the front of the car

• Lift the front with a floor jack (rated 3-ton minimum) and place jack stands (rated 3-ton minimum) under the proper front support points.
• Shake the car slightly to confirm it is stable before going underneath.

Step 4: Remove the lower splash shield (if equipped)

• Use a trim clip removal tool and 8mm socket to remove the fasteners.
• Lower the panel and set it aside.

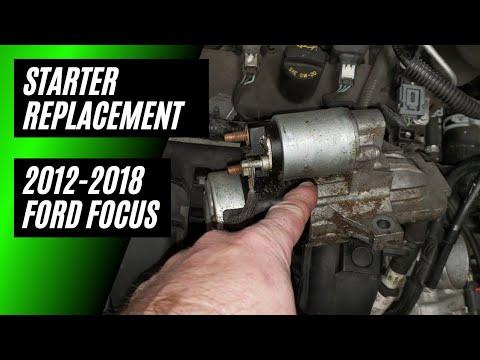

Step 5: Locate the starter and unplug the small control connector

• Find the starter where it bolts to the transmission bellhousing (front side of the engine/trans area).
• Remove the small starter solenoid connector by releasing the tab (use a pick tool gently if needed).
• Definition: The solenoid connector is the small plug that tells the starter to crank.

Step 6: Remove the main power cable from the starter

• Pull off the rubber protective boot on the starter’s large terminal.
• Use a 13mm socket and 3/8" ratchet to remove the nut holding the main battery cable.
• Move the cable aside so it can’t touch metal.
• Torque on install: Torque to 12 Nm (106 in-lbs)

Step 7: Remove the starter mounting bolts

• Support the starter with one hand.
• Use a 15mm socket, 3/8" ratchet, and a 6" extension (and universal joint swivel adapter if needed) to remove the starter mounting bolts.
• Keep track of bolt locations if they are different lengths.
• Torque on install: Torque to 48 Nm (35 ft-lbs)

Step 8: Remove the starter

• Wiggle the starter out of the bellhousing area and lower it carefully.
• If it’s tight, reposition it and try a different angle—don’t force the wiring.
• Take a photo before removal.

Step 9: Install the new starter

• Compare the new starter to the old one (same mounting holes and electrical terminals).
• Position the starter and hand-start the mounting bolts to avoid cross-threading.
• Use a 15mm socket and 3/8" ratchet to snug the bolts, then use a torque wrench: Torque to 48 Nm (35 ft-lbs)

Step 10: Reconnect the wiring

• Reconnect the main power cable and tighten with a 13mm socket, then: Torque to 12 Nm (106 in-lbs)
• Reinstall the rubber boot over the terminal.
• Reconnect the small solenoid connector until it clicks.

Step 11: Reinstall the splash shield and intake duct

• Reinstall the lower splash shield using the trim clip removal tool and 8mm socket.
• Reinstall the intake duct and tighten clamps using a flathead screwdriver or 8mm socket.

Step 12: Reconnect the battery

• Reconnect the negative battery cable using a 10mm socket and 1/4" ratchet.
• Make sure the terminal is fully seated and tight (no twisting by hand).

---

✅ After Repair

• Start your Focus and confirm it cranks strongly and starts normally.
• Check that no wires are near the exhaust or rubbing on sharp edges.
• Verify the intake duct is fully seated (no hissing/air leaks).
• Reset the clock/radio presets if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $330-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
