🔧 Edge - Starter Motor Replacement

On your Edge, the starter is bolted to the transmission bellhousing and is powered by a heavy battery cable plus a small control connector. Replacement is mostly an access job: disconnect power, remove the starter wiring, unbolt the starter, and install the new one.

Quick check before we start (reply with 1-2 answers): 1) Does your Edge have Auto Start-Stop? 2) Do you want top-side access (under hood) or bottom-side access (raise vehicle)?

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first; the starter cable is always hot.
• ⚠️ If you raise the vehicle, support it on jack stands on solid, level ground.
• ⚠️ Let the engine cool; the turbo/downswing area can be very hot.
• ⚠️ Keep tools off the starter main terminal to prevent a dead short.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 1/4" ratchet
• 3/8" ratchet
• 6" extension
• 12" extension
• Universal joint adapter
• Torque wrench (10-100 ft-lbs range)
• Trim clip removal tool
• Flat-blade screwdriver
• Needle-nose pliers
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter electrical terminal nut (if supplied/needed) - Qty: 1
• Intake duct clamp (if damaged) - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to P, and set the parking brake.
• If you’ll work from underneath, place wheel chocks behind the rear wheels.
• Open the hood and confirm whether you have Auto Start-Stop (it’s usually a button on the dash/console). This can change under-hood battery/sensor handling.
• Battery disconnect: Use a 10mm socket to remove the negative (-) terminal first, then isolate it so it cannot spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect battery power

• Use a 10mm socket to loosen and remove the negative (-) battery terminal.
• Tuck the cable aside so it cannot touch the post again. This prevents accidental short circuits.

Step 2: Create access to the starter area

• Top-side path: Use an 8mm socket or flat-blade screwdriver to loosen intake duct clamps, then remove the intake duct as needed.
• Bottom-side path: Use a floor jack (rated 3-ton minimum) to lift the front, support with jack stands (rated 3-ton minimum), then remove any lower splash shield using a trim clip removal tool and 8mm socket.

Step 3: Locate the starter and label connections

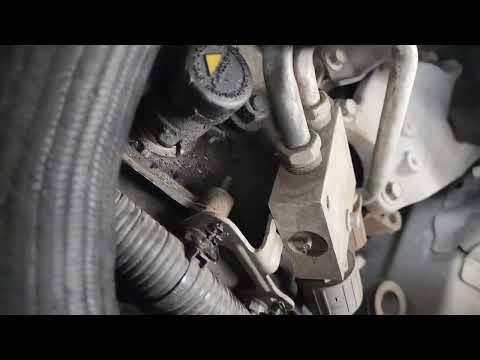

• Look for the starter where the engine meets the transmission (bellhousing).
• Identify the large battery cable on the main terminal and the small control connector (signal wire).
• Use your work light and take a photo for reference.

Step 4: Disconnect starter wiring

• Remove the small control connector by releasing the lock tab with a flat-blade screwdriver (gentle pressure).
• Remove the nut from the main terminal using a 13mm socket (common size), then lift off the battery cable.
• Cover the cable end so it can’t touch metal (a glove or tape works).

Step 5: Remove the starter mounting bolts

• Support the starter with one hand.
• Use a 13mm socket or 15mm socket (varies by starter/bolt head) with a 3/8" ratchet, extensions, and a universal joint adapter to remove the mounting bolts.
• Pull the starter straight out from the bellhousing.

Step 6: Install the new starter

• Compare the new starter to the old one (mounting ears, electrical studs, connector style).
• Position the starter and hand-start the mounting bolts to avoid cross-threading.
• Tighten mounting bolts evenly using a torque wrench (10-100 ft-lbs range) and socket: Torque to Ford specification for your Edge starter mounting bolts.

Step 7: Reconnect starter wiring

• Install the main battery cable onto the starter terminal and tighten the nut using a 13mm socket: Torque to Ford specification for the starter B+ terminal nut.
• Apply a small amount of dielectric grease to the small connector seal, then click the control connector back in place.

Step 8: Reassemble access items

• Reinstall intake ducting and tighten clamps using an 8mm socket or flat-blade screwdriver.
• If removed, reinstall the lower splash shield using a trim clip removal tool and 8mm socket.

Step 9: Reconnect the battery

• Reconnect the negative (-) battery terminal using a 10mm socket.
• Tighten securely: Torque to Ford specification for the battery terminal clamp.

---

✅ After Repair

• Start the engine and confirm it cranks strongly with no clicking or grinding.
• Check that no warning lights stay on after a short drive.
• If you had to disconnect more than just the battery terminal (battery sensor/module), tell me and I’ll walk you through any required resets.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
