🔧 Suburban - Starter Motor Replacement

The starter motor spins your engine to start it. If your Suburban has slow/no crank, a single click, or intermittent starting (with good battery and clean connections), replacing the starter is a common fix.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before touching starter wires—starter cables are always “hot” and can short to ground.
• ⚠️ Let the exhaust cool fully; the starter area can be near hot components.
• ⚠️ Support the Suburban with jack stands on the frame—never rely on a floor jack alone.
• ⚠️ Keep keys away from the vehicle while working (prevents accidental crank).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set 8mm-18mm
• 1/2" drive ratchet
• 3/8" drive ratchet
• Socket extensions (3", 6", 12")
• Universal swivel joint (specialty)
• Wrench set 8mm-18mm
• Torque wrench (10-100 ft-lbs range)
• Torque wrench (inch-lb range)
• Trim clip tool
• Flathead screwdriver
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Starter mounting bolts - Qty: 2 Replace if supplied/required
• Battery terminal anti-corrosion washers (optional) - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and disconnect the negative battery cable using a 10mm socket.
• Tip: Take a photo of starter wiring first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and support the Suburban

• Raise the front of your Suburban using a floor jack (rated 3-ton minimum).
• Set it securely on jack stands (rated 3-ton minimum) placed under the frame rails.
• Give the vehicle a firm shake to confirm it’s stable.

Step 2: Remove the lower splash shield (if equipped)

• Remove any underbody/splash shield fasteners using a metric socket set 8mm-18mm and trim clip tool.
• If there are push-pins, pop the centers out using a flathead screwdriver, then remove the pin with a trim clip tool.

Step 3: Locate the starter

• Use a work light to find the starter on the passenger side of the engine, near where the engine meets the transmission (bellhousing area).
• You’ll see a small cylinder (starter solenoid) on top of the starter with electrical connections.

Step 4: Disconnect the starter wiring

• Confirm the negative battery cable is disconnected (from the prep step).
• Remove the protective boot on the main starter cable terminal by hand.
• Remove the main battery cable nut using a 13mm socket (or wrench set 8mm-18mm if access is tight), then lift the cable off.
• Remove the small “signal wire” nut on the solenoid using a metric socket set 8mm-18mm (typically 8mm), then remove the wire.
• Tip: Keep nuts with their matching wires.

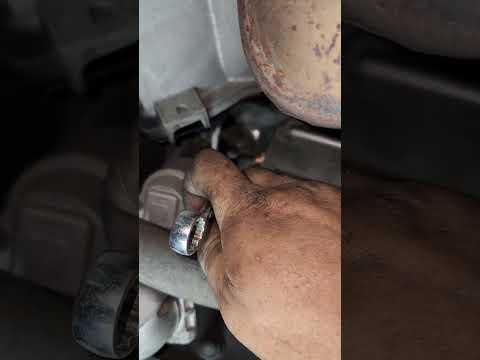

Step 5: Remove the starter mounting bolts

• Support the starter with one hand.
• Remove the two starter mounting bolts using a 1/2" drive ratchet, socket extensions (3", 6", 12"), and a metric socket set 8mm-18mm.
• If the bolt angle is awkward, use a universal swivel joint (specialty).
• Lower and remove the starter from underneath.

Step 6: Install the new starter

• Position the new starter into place by hand.
• Start both mounting bolts by hand first to avoid cross-threading.
• Tighten the starter mounting bolts using a torque wrench (10-100 ft-lbs range): Torque to 50 Nm (37 ft-lbs).

Step 7: Reconnect the starter wiring

• Install the small signal wire and tighten using a torque wrench (inch-lb range): Torque to 4 Nm (35 in-lbs).
• Install the main battery cable on the large terminal and tighten using a torque wrench (10-100 ft-lbs range): Torque to 15 Nm (11 ft-lbs).
• Reinstall the protective boot over the main terminal by hand.

Step 8: Reinstall the splash shield (if removed)

• Reinstall the shield and fasteners using a metric socket set 8mm-18mm and trim clip tool.
• Snug fasteners evenly (do not overtighten plastic clips).

Step 9: Reconnect the battery and lower the vehicle

• Reconnect the negative battery cable using a 10mm socket.
• Remove the jack stands (rated 3-ton minimum) and lower the vehicle using the floor jack (rated 3-ton minimum).

---

✅ After Repair

• Start your Suburban and confirm it cranks strongly and starts normally.
• Listen for abnormal grinding/whining; if heard, shut off and recheck starter seating and bolt torque.
• Verify no warning lights related to low voltage appear after a few starts.
• Check that the main cable boot is fully covering the terminal (prevents accidental shorting).

---

💰 DIY vs Shop Cost

Shop Cost: $550-$1,050 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $370-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
