🔧 Malibu - Starter Motor Replacement

The starter motor cranks your A4—sorry, your Malibu—so the engine can start. On your Malibu, the starter sits at the transmission/bellhousing area and is easiest to access from underneath after removing the lower splash shield.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before touching the starter wiring (the large cable is always “hot” and can short to ground).
• ⚠️ Support the car with jack stands on solid ground; never rely on a floor jack alone.
• ⚠️ Let the engine/exhaust cool first; the starter area can be close to hot parts.
• ⚠️ If your Malibu has Auto Stop/Start, don’t reconnect the battery until everything is reassembled.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" ratchet
• 3/8" torque wrench (10–100 Nm range)
• 6" extension (3/8" drive)
• 12" extension (3/8" drive)
• Universal joint adapter (3/8" drive)
• Trim clip removal tool
• Flat-blade screwdriver
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Lower engine splash shield fasteners/clips (assortment) - Qty: 1 set (as needed)
• Battery terminal anti-corrosion pads - Qty: 1 set (optional)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and make sure you have your radio/security codes if applicable.
• Disconnect the battery negative cable using a 10mm socket (battery “negative” is the cable with the “-” mark).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative battery cable clamp and remove it from the battery.
• Position the cable so it can’t spring back and touch the battery post.
• When reinstalling later: Torque to 15 Nm (11 ft-lbs).
• Battery disconnected = no accidental sparks.

Step 2: Raise and support the front of the car

• Use a floor jack to lift the front of your Malibu at the approved front lift point.
• Set the vehicle down onto jack stands placed at solid support points.
• Give the vehicle a gentle shake to confirm it’s stable before going underneath.

Step 3: Remove the lower splash shield

• Use an 8mm socket and 10mm socket to remove the shield screws (your Malibu may use both).
• Use a trim clip removal tool to pop out any plastic push-clips.
• Lower the splash shield and set it aside.

Step 4: Locate the starter and label the wires

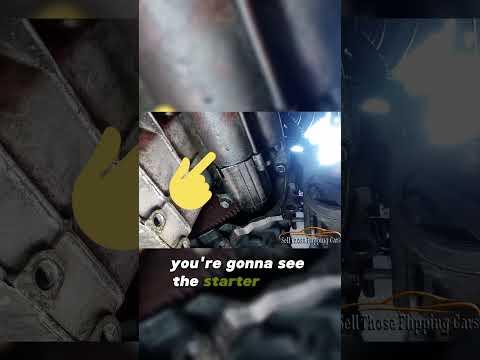

• Find the starter where the engine meets the transmission (bellhousing area).
• The starter has:
  • A large battery cable (thick wire) on the main stud.
  • A smaller control wire on a plug or small stud.
• Use your work light and take a photo with your phone for reference.

Step 5: Disconnect the starter wiring

• If there is a protective boot on the main cable, pull it back by hand or use a flat-blade screwdriver gently.
• Remove the main battery cable nut using a 13mm socket.
• Disconnect the small control connector by pressing the tab and pulling it off by hand.
• When reinstalling later: Torque the main terminal nut to 10 Nm (89 in-lbs).
• Don’t twist the stud—hold the cable steady.

Step 6: Remove the starter mounting bolts

• Support the starter with one hand.
• Use a 15mm socket with a 3/8" ratchet, plus a 6" extension and universal joint adapter as needed, to remove the starter mounting bolts.
• Once the bolts are out, lower the starter down and out.
• When installing later: Torque starter mounting bolts to 50 Nm (37 ft-lbs).

Step 7: Transfer any heat shield or bracket (if equipped)

• Some starters use a small heat shield or support bracket.
• Use a 10mm socket to move the shield/bracket from the old starter to the new one (if present).
• When reinstalling: Torque small shield/bracket bolts to 10 Nm (89 in-lbs).
• Match orientation exactly like your photo.

Step 8: Install the new starter

• Position the new starter into place by hand.
• Start the mounting bolts by hand first (prevents cross-threading).
• Tighten the bolts using a 15mm socket and then finish with a 3/8" torque wrench: Torque to 50 Nm (37 ft-lbs).

Step 9: Reconnect the wiring

• Install the main battery cable onto the starter stud and thread the nut on by hand.
• Tighten using a 13mm socket: Torque to 10 Nm (89 in-lbs).
• Reconnect the small control connector until it clicks into place.
• Re-seat the protective boot over the main terminal.

Step 10: Reinstall the splash shield and lower the car

• Reinstall the splash shield using the 8mm socket, 10mm socket, and trim clip removal tool (to reinstall any clips).
• Raise the vehicle slightly with the floor jack, remove the jack stands, then lower it to the ground.

Step 11: Reconnect the battery and test

• Reconnect the negative battery cable using a 10mm socket: Torque to 15 Nm (11 ft-lbs).
• Start the engine and listen for a strong, normal crank.
• If you hear clicking or slow cranking, recheck the main cable connection and the battery condition.

---

✅ After Repair

• Start your Malibu 3–5 times to confirm consistent cranking.
• Check underneath for any loose wiring near the starter.
• If a warning light appears after battery disconnect, drive a short loop and recheck; some modules relearn after a few key cycles.

---

💰 DIY vs Shop Cost

Shop Cost: $500-$950 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $320-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
