🔧 Equinox - Starter Motor Replacement

You’ll be removing the starter from below the engine on your Equinox and swapping it with a new unit. This involves disconnecting the battery, raising the vehicle, removing the engine under cover, and then unbolting the starter and its wiring.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Always disconnect the negative battery cable before working on the starter to avoid electric shock and accidental cranking.
• ⚠️ Support the vehicle with jack stands, never rely only on a floor jack.
• ⚠️ Allow the engine and exhaust to cool completely before working underneath.
• ⚠️ Keep metal tools away from the battery positive terminal when it is connected.
• ⚠️ Wear safety glasses and mechanic gloves to protect your eyes and hands.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum, set of 2)
• 🛠️ Wheel chocks
• 🛠️ Ratchet 3/8" drive
• 🛠️ Ratchet 1/4" drive
• 🛠️ Socket set metric (8mm–19mm)
• 🛠️ 10mm socket
• 🛠️ 13mm socket
• 🛠️ 15mm socket
• 🛠️ 6" extension 3/8" drive
• 🛠️ Torx T20 screwdriver
• 🛠️ Torx T30 bit with 3/8" drive
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Torque wrench 3/8" drive (5–80 ft-lbs)
• 🛠️ Torque wrench 1/4" drive (20–80 in-lbs)
• 🛠️ Trim clip removal tool
• 🛠️ Work light or headlamp
• 🛠️ Safety glasses
• 🛠️ Mechanic gloves
• 🛠️ Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Starter motor assembly (1.5L) - Qty: 1
• 🔩 Starter mounting bolts - Qty: 2 (recommended new)
• 🔩 Battery terminal cleaning brush - Qty: 1
• 🔩 Dielectric grease - Qty: 1 tube
• 🔩 Penetrating oil - Qty: 1 can
• 🔩 Plastic push-pin clips for engine under cover - Qty: 4-8 (as needed)
• 🔩 Shop towels - Qty: 1 pack

---

📋 Before You Begin

• Park your Equinox on a flat, solid surface and set the parking brake.
• Place the transmission in PARK and remove the key.
• Chock the rear wheels using wheel chocks so the vehicle cannot roll.
• Open the hood and familiarize yourself with the battery and engine bay layout.
• Make sure you have your radio/infotainment presets written down if you care about them; disconnecting the battery may reset some settings.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Open the hood and locate the battery on the left side of the engine bay.
• Use a 10mm socket and 3/8" ratchet to loosen the nut on the negative (black, “-”) battery terminal.
• Pull the negative cable off the terminal and tuck it to the side so it cannot spring back and touch the battery post.
• Always remove negative cable first for safety.

Step 2: Raise and support the front of the vehicle

• Place wheel chocks behind both rear wheels.
• Position the floor jack under the front center jacking point (under the subframe crossmember).
• Lift the front of the vehicle high enough to work comfortably under it.
• Place jack stands under the left and right front subframe points and slowly lower the vehicle onto the stands.
• Give the vehicle a firm shake to make sure it is stable before going underneath.

Step 3: Remove the engine under cover (splash shield)

• Slide under the front of the vehicle with your work light.
• Use a Torx T20 screwdriver and Torx T30 bit with 3/8" ratchet to remove all Torx screws holding the plastic engine under cover.
• Use the trim clip removal tool to release any plastic push-pin clips.
• Lower the under cover and set it aside.

Step 4: Locate the starter motor

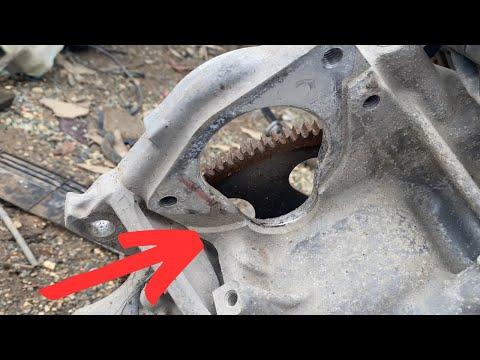

• The starter on the 1.5L engine is mounted low on the engine, near where the engine meets the transmission, toward the rear of the engine bay.
• From underneath, follow the large cable coming from the battery area; it connects directly to the starter.
• Clean area with a rag so you see clearly.

Step 5: Disconnect the starter electrical connectors

• Spray a small amount of penetrating oil on the starter terminal nut if it looks rusty and wait a minute.
• Use a 13mm socket and 3/8" ratchet to remove the nut holding the main battery cable to the starter solenoid stud.
• Pull the main cable off the stud and set it aside.
• Locate the smaller plug-style connector on the starter solenoid (this is the control wire).
• Press the locking tab with a flathead screwdriver if needed and gently pull the connector off.
• Do not pull on the wires, only on the plug.

Step 6: Remove the starter mounting bolts

• Locate the two starter mounting bolts that go through the starter into the engine block.
• Use a 15mm socket, 6" extension, and 3/8" ratchet to loosen and remove the lower starter bolt.
• Support the starter with one hand while removing the upper starter bolt with the same 15mm socket and extension.
• Once both bolts are removed, carefully lower the starter out of its position and remove it from the vehicle.
• Note orientation of old starter for reference.

Step 7: Compare old and new starter

• Place the old starter next to the new one on a clean surface.
• Check that the mounting holes, electrical terminals, and gear (pinion) look the same.
• If anything looks different, stop and verify you have the correct part.

Step 8: Install the new starter motor

• Position the new starter in place, lining up the nose of the starter with the opening in the transmission bell housing.
• Install the upper mounting bolt by hand first to hold the starter in place.
• Install the lower mounting bolt by hand.
• Use the 15mm socket, 6" extension, and 3/8" ratchet to snug both bolts evenly.
• Use the 3/8" torque wrench with the 15mm socket to tighten the starter mounting bolts to 50 Nm (37 ft-lbs).
• Start bolts by hand to avoid cross-threading.

Step 9: Reconnect starter electrical connectors

• Apply a small amount of dielectric grease to the small control connector terminals if available.
• Push the small control connector back onto the starter solenoid until it clicks.
• Install the main battery cable onto the solenoid stud.
• Thread the nut onto the stud by hand.
• Use the 13mm socket and 3/8" ratchet to tighten the nut, then use the 3/8" torque wrench to torque to 15 Nm (11 ft-lbs).
• Do not overtighten, you can damage the stud.

Step 10: Reinstall the engine under cover

• Lift the engine under cover back into position under the front of the vehicle.
• Install all Torx screws by hand first to ensure proper alignment.
• Use the Torx T20 screwdriver and Torx T30 bit with 3/8" ratchet to tighten the screws snugly.
• If new plastic clips are used, push them into place by hand.
• Typical small fasteners can be tightened to about 10 Nm (89 in-lbs) with the 1/4" torque wrench if desired.

Step 11: Lower the vehicle

• Position the floor jack back under the front subframe and lift slightly to take the weight off the jack stands.
• Remove the jack stands and then slowly lower the vehicle to the ground.
• Remove the wheel chocks from the rear wheels.

Step 12: Reconnect the battery

• Back under the hood, ensure the negative cable is still away from the terminal.
• Inspect both battery posts and cable ends; clean them with the battery terminal cleaning brush if corroded.
• Place the negative cable back onto the negative battery post.
• Use the 10mm socket and 3/8" ratchet to tighten the clamp just snug; do not crush it.

---

✅ After Repair

• Turn the ignition to ON without starting for a few seconds, then turn it OFF. This lets systems wake up after the battery reconnect.
• Start your Equinox and listen for smooth cranking and starting without grinding or strange noises.
• Check that no warning lights stay on unexpectedly (besides normal ones that go off after starting).
• With the engine running, look under the vehicle to be sure nothing is hanging down or leaking and that the under cover is secure.
• Re-enter your radio/infotainment presets and clock if they were reset.

---
