🔧 Enclave - Starter Motor Replacement

The starter motor cranks your Enclave’s engine when you turn the key/push the button. If it’s failed, you may get a click/no-crank, slow cranking, or intermittent starting. This job is mostly access-from-below plus careful electrical connections.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚡ Disconnect the negative battery cable before touching the starter wiring (the main cable is always “hot” otherwise).
• 🧯 Let the exhaust cool fully before working underneath (burn risk).
• 🧱 Support the Enclave with jack stands on solid points; never rely on a floor jack alone.
• 🧤 Wear safety glasses and gloves; debris falls when shields come down.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Trim clip removal tool
• 3/8" drive ratchet
• 1/2" drive breaker bar
• 3/8" drive torque wrench (10–100 Nm range)
• Socket set: 8mm, 10mm, 13mm, 15mm
• Extension set: 3" and 6"
• Universal swivel joint
• Flat-blade screwdriver
• Needle-nose pliers
• Shop light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Battery terminal anti-corrosion pads - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and plan to disconnect the battery. Take a photo of cable routing.
• A torque wrench is a tool that tightens bolts to a specific force so you don’t strip threads or crack parts.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket and 3/8" drive ratchet to loosen the negative battery terminal.
• Remove the negative cable and position it so it cannot spring back onto the post.

Step 2: Raise and support the Enclave

• Lift the front using a floor jack (rated 3-ton minimum).
• Set the vehicle securely on jack stands (rated 3-ton minimum) before going underneath.

Step 3: Remove the lower splash shield/air deflector

• Use an 8mm socket and 3/8" drive ratchet to remove any small bolts.
• Use a trim clip removal tool (a forked pry tool that pops plastic clips out) to remove push clips without breaking them.
• Lower the shield and set hardware aside in a tray.

Step 4: Locate the starter and clear access

• Use a shop light to find the starter at the engine/transmission joint area (it’s a small motor with a larger cylinder “solenoid” on it).
• If a wiring retainer or small shield blocks access, remove it using a flat-blade screwdriver and/or 10mm socket.

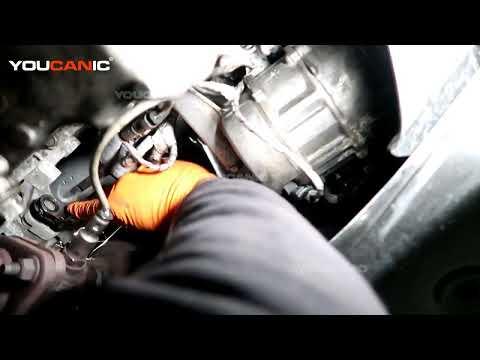

Step 5: Disconnect the starter electrical connections

• On the large battery cable: remove the protective rubber boot, then use a 13mm socket to remove the nut.
• On the small control connector: press the lock tab and pull the connector straight off (use needle-nose pliers only if needed, gently).
• Do not pull on wires—pull on connectors.
• Reinstall the nut back onto the stud a few turns so it doesn’t get lost.

Step 6: Remove the starter mounting bolts

• Support the starter with one hand.
• Use a 15mm socket, extensions: 3" and 6", and a universal swivel joint (helps the socket bend around obstacles) to reach the bolts.
• Break the bolts loose with a 1/2" drive breaker bar if tight, then remove with the 3/8" drive ratchet.
• Remove the starter from the vehicle.

Step 7: Install the new starter

• Compare the new starter to the old one (mounting holes, electrical studs, connector location).
• Position the starter and hand-start both mounting bolts to avoid cross-threading.
• Tighten the starter mounting bolts with a 3/8" drive torque wrench (10–100 Nm range): Torque to 50 Nm (37 ft-lbs).

Step 8: Reconnect the electrical connections

• Install the large battery cable onto the starter stud and tighten the nut using a 13mm socket: Torque to 13 Nm (115 in-lbs).
• Reconnect the small control connector until it clicks into place.
• Apply a small amount of dielectric grease to the outside of the rubber boot (not on the threads), then reinstall the boot over the stud.

Step 9: Reinstall splash shield/air deflector

• Reposition the shield.
• Reinstall bolts with an 8mm socket and clips with a trim clip removal tool.

Step 10: Lower the vehicle and reconnect the battery

• Raise slightly with the floor jack (rated 3-ton minimum), remove jack stands (rated 3-ton minimum), then lower to the ground.
• Reconnect the negative battery terminal using a 10mm socket: Torque to 15 Nm (11 ft-lbs).
• Install battery terminal anti-corrosion pads if you’re using them.

---

✅ After Repair

• Start the engine and confirm strong, consistent cranking.
• Check that no warning lights appear and that no wiring is touching hot exhaust or moving parts.
• With the engine off, recheck the starter cable nut and battery terminal for tightness (do not overtighten).
• If it still clicks/no-cranks: inspect battery condition, battery terminals, and main ground connection.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$950 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $370-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
