🔧 Odyssey - Starter Motor Replacement

On your Odyssey, the starter sits in the “V” of the V6 under the upper intake manifold (the top aluminum/plastic air passage). Replacing it means disconnecting the battery, removing the intake ducting and upper intake manifold, then swapping the starter and reassembling with new gaskets to prevent vacuum leaks.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching the starter wiring.
• ⚠️ Let the engine cool fully; you’ll work near hot coolant passages and exhaust.
• ⚠️ Do not pull on wiring harnesses; release connectors by their lock tabs.
• ⚠️ Keep dirt out of the intake ports; cover openings with clean rags immediately.
• ⚠️ If you smell fuel at any time, stop and inspect—do not continue.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Fender cover
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 1/4" ratchet
• 6" extension
• 12" extension
• Universal joint socket adapter
• Torque wrench (10–80 N·m range)
• Flat-blade screwdriver
• Phillips screwdriver
• Trim clip remover tool
• Pliers
• Pick tool
• Magnetic pickup tool
• Shop light
• Parts tray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Upper intake manifold gasket set - Qty: 1
• Throttle body gasket - Qty: 1
• Dielectric grease - Qty: 1
• Brake cleaner or throttle-body safe cleaner - Qty: 1
• Shop towels - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• 🔋 Write down radio presets if you care about them, then open the hood.
• 🧰 Label hoses/connectors with masking tape so they go back to the same spot.
• 🧼 Clean dirt off the intake area first so debris doesn’t fall into the engine.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal and remove it.
• Tuck the cable aside so it cannot spring back to the post.
• Negative off first, on last.

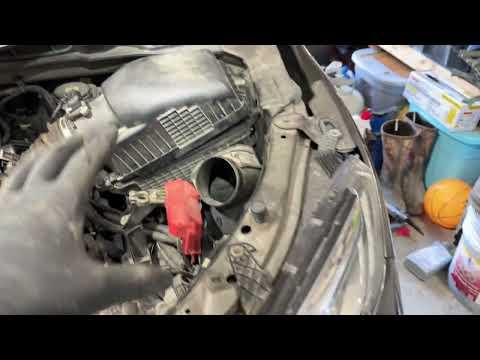

Step 2: Remove the engine cover and intake duct

• Remove the engine cover by lifting it straight up (rubber grommets hold it).
• Use a flat-blade screwdriver to loosen the hose clamps on the intake duct.
• Unplug the intake sensor(s) by pressing the lock tab, then pull the intake duct out.

Step 3: Unplug and unclip what’s attached to the upper intake

• Use a trim clip remover tool and pliers to release harness clips from the upper intake.
• Disconnect the throttle body electrical connector by pressing the lock tab and pulling straight back.
• Disconnect vacuum/PCV hoses carefully with pliers (twist the hose first to break it loose).
• Take a photo before removing hoses.

Step 4: Remove the throttle body (recommended for access)

• Use a 10mm socket to remove the throttle body mounting bolts.
• Lift the throttle body off and set it aside (do not stress the wiring).
• Remove and discard the old gasket using a pick tool.
• On reassembly later: Torque throttle body bolts to 12 N·m (9 ft-lbs).
• Do not push the throttle plate by hand.

Step 5: Remove the upper intake manifold

• Use a 12mm socket with a 6" extension to remove the upper intake manifold bolts/nuts.
• Lift the upper intake manifold off slowly; stop if anything still feels connected.
• Immediately cover the exposed intake ports with clean shop towels.
• Remove and discard the old upper intake manifold gaskets using a pick tool.
• On reassembly later: Torque upper intake manifold bolts/nuts to 12 N·m (9 ft-lbs).

Step 6: Locate the starter and disconnect its wiring

• The starter will now be visible in the engine “V”.
• Unplug the small starter signal connector by pressing the lock tab.
• Use a 12mm socket to remove the nut for the main battery cable on the starter.
• Move the cable aside and keep the nut in a parts tray.
• On reassembly later: Torque the starter B+ terminal nut to 9 N·m (80 in-lbs).
• Do not overtighten this small stud.

Step 7: Remove the starter mounting bolts and the starter

• Use a 14mm socket with a 12" extension and universal joint socket adapter as needed.
• Remove the starter mounting bolts, then lift the starter straight out.
• If a bolt tries to fall, use a magnetic pickup tool.
• On reassembly later: Torque starter mounting bolts to 44 N·m (32 ft-lbs).

Step 8: Install the new starter

• Set the new starter into position by hand, making sure it sits flush.
• Start both mounting bolts by hand first (this prevents cross-threading).
• Tighten with a 14mm socket, then Torque to 44 N·m (32 ft-lbs).
• Reconnect the main cable and nut with a 12mm socket, then Torque to 9 N·m (80 in-lbs).
• Plug in the small signal connector until it clicks.
• Apply a thin dab of dielectric grease to connector seals only.

Step 9: Reinstall the upper intake manifold with new gaskets

• Remove the shop towels from the intake ports.
• Install new upper intake manifold gaskets (make sure they sit fully in their grooves).
• Set the upper intake manifold down squarely (do not pinch any wires).
• Thread all bolts/nuts by hand first, then snug evenly.
• Use a torque wrench (10–80 N·m range) and 12mm socket to Torque to 12 N·m (9 ft-lbs) in a crisscross pattern.

Step 10: Reinstall the throttle body, hoses, intake duct, and connectors

• Install a new throttle body gasket.
• Reinstall the throttle body bolts with a 10mm socket and Torque to 12 N·m (9 ft-lbs).
• Reconnect all hoses (push fully past the bead), and reinstall hose clamps with pliers.
• Reconnect all electrical connectors until they click.
• Reinstall the intake duct and tighten clamps with a flat-blade screwdriver.
• Reinstall the engine cover by pressing it back onto its grommets.

Step 11: Reconnect the battery

• Install the negative battery terminal and tighten with a 10mm socket.
• Make sure the terminal doesn’t rotate by hand when done.

---

✅ After Repair

• 🔍 Turn the key/start button to ON (not start) and listen for abnormal hissing (vacuum leak sound).
• 🚗 Start the engine; it may crank a little longer the first time.
• 🧯 Check for a check-engine light; if it’s on, recheck intake/throttle connectors and hoses.
• 🛠️ Let it idle until warm, then idle 5 minutes with all accessories OFF to help relearn idle.
• 🧪 Do a short test drive and confirm normal starts when hot and cold.

---

💰 DIY vs Shop Cost

Shop Cost: $750-$1,300 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $570-$850 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
