🔧 Expedition - Starter Motor Replacement

Your Expedition’s starter motor cranks the engine when you turn the key/push the button. Replacement usually means removing the old starter from the transmission bellhousing area, transferring any heat shield (if equipped), and installing the new unit with clean, tight electrical connections.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before touching starter wiring (prevents short/arc).
• ⚠️ Support your Expedition on jack stands; never rely on a floor jack.
• ⚠️ Let the exhaust cool fully; the starter sits near hot components.
• ⚠️ Keep tools off the positive cable stud to avoid welding/shorting.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 1/4" drive ratchet
• 3/8" drive ratchet
• 6" extension (3/8" drive)
• 12" extension (3/8" drive)
• Universal swivel adapter (3/8" drive)
• Socket set (metric)
• 10mm socket
• 13mm socket
• 15mm socket
• Torque wrench (ft-lb range)
• Flat trim tool
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor (3.5L turbo) - Qty: 1
• Battery terminal anti-corrosion pads or spray - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, turn the ignition off, and remove the key/fob from the vehicle.
• Chock the rear wheels with wheel chocks.
• Open the hood and locate the battery.
• Plan to lift the front of your Expedition for underside access.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket and 1/4" drive ratchet to loosen the negative battery terminal and remove it.
• Move the negative cable aside so it can’t spring back to the post.
• Tip: Wrap the cable end with a glove.

Step 2: Raise and support the front of your Expedition

• Use a floor jack (rated 3-ton minimum) to lift the front at the proper jacking point.
• Set it securely on jack stands (rated 3-ton minimum).
• Give the vehicle a firm push test before going underneath.

Step 3: Remove the lower splash shield (if equipped)

• The splash shield is the plastic/metal panel under the front that blocks dirt and water.
• Use a flat trim tool to pop out push-pins, and use a 10mm socket with a 3/8" drive ratchet for bolts (if present).
• Set all fasteners aside in a small pile so none get lost.

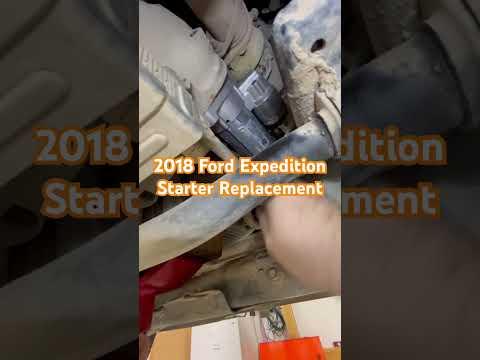

Step 4: Locate the starter motor

• Use a work light to look along the passenger-side lower engine/transmission area (bellhousing).
• The starter is a cylindrical motor with a smaller solenoid attached and a thick battery cable going to it.

Step 5: Disconnect the starter wiring

• Unplug the small control connector from the solenoid (pull straight off). Use a flat trim tool gently if it’s stuck.
• Remove the nut from the large positive cable terminal using a 13mm socket, 3/8" drive ratchet, and 6" extension.
• Pull the cable eyelet off and position it so it can’t touch metal.
• On reassembly: Torque the starter B+ terminal nut to 10 Nm (89 in-lb).

Step 6: Remove the starter mounting bolts

• Support the starter with one hand while loosening bolts with the other.
• Use a 13mm socket with a 3/8" drive ratchet, plus a 12" extension and universal swivel adapter as needed for access.
• Remove the mounting bolts, then lower the starter out.
• On reassembly: Torque the starter mounting bolts to 35 Nm (26 ft-lb).

Step 7: Transfer any heat shield/bracket (if equipped)

• If your old starter has a heat shield or bracket attached, move it to the new starter in the same orientation.
• Use the same socket size you removed it with (commonly 10mm socket or 13mm socket).

Step 8: Install the new starter

• Position the new starter and start the mounting bolts by hand (prevents cross-threading).
• Tighten with a 13mm socket and 3/8" drive ratchet.
• Finish with a torque wrench (ft-lb range): Torque to 35 Nm (26 ft-lb).

Step 9: Reconnect the starter wiring

• Install the large positive cable onto the starter terminal and tighten the nut using a 13mm socket.
• Finish with a torque wrench (ft-lb range): Torque to 10 Nm (89 in-lb).
• Apply a small amount of dielectric grease to the electrical connector seal (not the metal contact), then plug the small connector back in until it clicks.

Step 10: Reinstall the splash shield

• Reinstall the shield using the 10mm socket and flat trim tool for any push-pins.
• Make sure no wiring is hanging or pinched.

Step 11: Lower the vehicle and reconnect the battery

• Raise slightly with the floor jack (rated 3-ton minimum), remove the jack stands (rated 3-ton minimum), then lower fully.
• Reconnect the negative battery terminal using a 10mm socket.
• Apply battery terminal anti-corrosion pads or spray if available.

---

✅ After Repair

• Start your Expedition and confirm it cranks strongly with no clicking.
• Check that there are no warning lights related to low voltage after a short drive.
• Recheck under the vehicle for any loose fasteners or a dangling splash shield.
• If it still won’t crank: recheck the small solenoid connector and the battery terminal tightness.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$950 (parts + labor)

DIY Cost: $180-$420 (parts only)

You Save: $370-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
