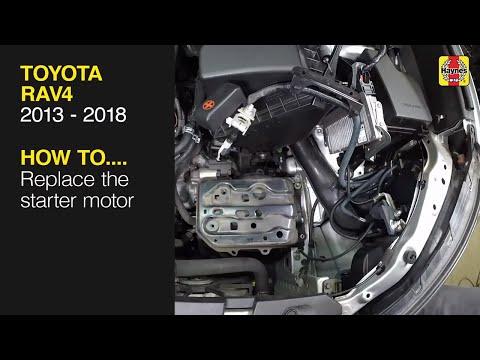

🔧 RAV4 - Starter Motor Replacement

You’ll be removing the old starter motor from the front of the engine (where it meets the transmission) and installing a new one. This involves disconnecting the battery, moving the air filter box out of the way, unbolting the starter, and reconnecting the wiring safely.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Always disconnect the negative battery cable before working; the starter has a direct connection to the battery and can cause dangerous sparks.
• ⚠️ Let the engine cool completely before starting; you will be working near hot metal parts.
• ⚠️ Wear safety glasses and gloves to protect from dirt, sharp edges, and accidental slips.
• ⚠️ Do not let metal tools bridge between the starter terminals and any metal on the car once the battery is connected.
• ⚠️ If you raise the front of your RAV4, always support it with jack stands on solid ground; never rely on the jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ 10mm socket
• 🛠️ 12mm socket
• 🛠️ 14mm socket
• 🛠️ 3/8" drive ratchet
• 🛠️ 3/8" drive extension (3"-6")
• 🛠️ Torque wrench (5-80 ft-lbs range)
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Needle-nose pliers
• 🛠️ Trim clip remover tool
• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum)
• 🛠️ Work light or flashlight
• 🛠️ Mechanic’s gloves
• 🛠️ Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Starter motor (for 2.5L FWD) - Qty: 1
• 🔩 Starter mounting bolts - Qty: 2 (optional but recommended)
• 🔩 Battery terminal protector spray - Qty: 1
• 🔩 Dielectric grease - Qty: 1
• 🔩 Fender cover or thick cloth - Qty: 1
• 🔩 Cable ties - Qty: 3-5

---

📋 Before You Begin

• 🧾 Park your RAV4 on a flat surface, shift to Park, and set the parking brake.
• 🧾 Turn off all electrical loads (lights, radio, AC) and remove the key.
• 🧾 Open the hood and secure it. Place a fender cover or cloth over the front fender to protect paint.
• 🧾 Disconnect the negative battery cable first using a 10mm socket, and secure the cable away from the battery terminal.
• 🧾 If you choose to raise the front, lift with a floor jack at the front center jacking point and support with jack stands under the front pinch welds.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the Starter Area

• Open the hood and locate the air filter box on the left side (driver’s side) of the engine bay.
• Use a flathead screwdriver to loosen the clamp on the air intake hose at the air box.
• Unclip the metal clips on the air box lid by hand and lift the lid and air filter out; set them aside.
• Use a 10mm socket and ratchet to remove any bolts holding the lower air box to the body.
• Lift the lower air box straight up to release it from its rubber grommets; set it aside. Wiggle gently if stuck
• With the air box out, look down toward the transmission bellhousing; you will see the starter motor bolted to the engine and transmission.

Step 2: Confirm Battery Is Safely Disconnected

• Verify the negative battery cable is completely off the negative terminal and cannot spring back.
• If needed, use a cable tie to hold the cable away from the terminal.
• Never work on starter with battery connected

Step 3: Disconnect Starter Electrical Connectors

• Locate the small plug on the starter (the “signal” wire). Press the tab and pull it off by hand; use needle-nose pliers gently if it is stubborn.
• Locate the larger cable on the starter held with a nut under a rubber boot. Pull back the rubber boot by hand.
• Use a 12mm socket and ratchet to remove the nut holding the large cable to the starter terminal.
• Pull the cable eyelet off the terminal and gently move it aside.
• Remember cable routing for reassembly

Step 4: Remove Starter Mounting Bolts

• Find the two starter mounting bolts that go through the transmission bellhousing into the starter body. They are usually 14mm head bolts.
• Use a 14mm socket, extension, and ratchet to loosen the upper starter bolt. Once loose, unthread it by hand but leave it in place for now.
• Use the same 14mm socket and extension to remove the lower starter bolt completely.
• Now support the starter body with one hand, then remove the upper bolt the rest of the way with your other hand.
• Carefully pull the starter straight out from the transmission. It may be snug in the alignment dowels; wiggle it gently while pulling.

Step 5: Compare Old and New Starter

• Place the old starter and the new starter side by side on a clean surface.
• Check that the mounting holes, electrical terminals, and gear (pinion) length and position match.
• Do not install if parts differ

Step 6: Install the New Starter

• Guide the new starter into place, aligning the nose of the starter into the opening in the transmission.
• Start the upper mounting bolt by hand using the 14mm socket and extension just enough so the starter hangs aligned but can still move slightly.
• Install the lower mounting bolt by hand using the 14mm socket and extension to make sure the threads start cleanly.
• Once both bolts are threaded by hand, use the ratchet and 14mm socket to snug them evenly.
• Use a torque wrench with the 14mm socket to tighten both bolts to 39 Nm (29 ft-lbs).

Step 7: Reconnect Starter Electrical Connections

• Place the large cable eyelet back onto the main starter terminal.
• Install the nut with a 12mm socket and tighten snugly. Do not overtighten to avoid damaging the stud. Target about 9 Nm (80 in-lbs).
• Slide the rubber boot back over the nut and terminal to cover it fully.
• Reconnect the small signal connector by pushing it onto its terminal until it clicks.
• Apply a tiny amount of dielectric grease to the small connector if available.

Step 8: Reinstall Air Box and Intake

• Set the lower air box back into place, lining up the rubber grommets with the pegs on the body. Press down firmly until it seats.
• Install any bolts holding the lower air box using a 10mm socket and ratchet. Tighten to about 5 Nm (44 in-lbs) (snug, not very tight).
• Place the air filter back into the lower box.
• Reinstall the air box lid, making sure the tabs at the rear engage first, then close the lid and fasten the metal clips by hand.
• Slide the intake hose fully over the lid outlet and tighten the clamp with the flathead screwdriver.

Step 9: Reconnect the Battery

• Clean the battery terminals if corroded, using a battery brush if you have one.
• Install the negative battery cable back on the negative terminal using a 10mm socket.
• Tighten the clamp bolt to about 5 Nm (44 in-lbs) (firm but do not crush it).
• Spray a light coat of battery terminal protector if you have it.

Step 10: Final Visual Check

• Look around the starter area to ensure all connectors are plugged in and no tools or rags are left behind.
• Make sure the air box is firmly seated and the intake hose clamp is tight.
• Remove the fender cover and any jack stands and lower the vehicle if it was raised, using the floor jack.

---

✅ After Repair

• ✅ Sit in the driver’s seat and turn the key to ON (do not crank yet). Listen and look for any warning lights other than the usual checks.
• ✅ Turn the key to START. The engine should crank strongly and smoothly with no grinding or clicking noises.
• ✅ If it does not crank, turn the key off immediately and recheck the battery connections and starter connectors.
• ✅ Drive your RAV4 for a short test drive, stopping and restarting the engine a few times to confirm consistent starting.
• ✅ If you see a check engine light or any warning lights that stay on, have the codes scanned with an OBD-II scan tool.

---

💰 DIY vs Shop Cost

Shop Cost: $500-$750 (parts + labor)

DIY Cost: $180-$320 (parts only)

You Save: $320-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.0 hours.

---
