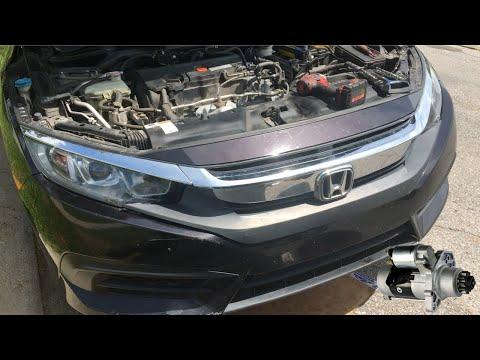

🔧 Civic - Starter Motor Replacement

Your Civic’s starter motor spins the engine so it can begin running. When it fails, you may hear a single click, slow cranking, or nothing at all even with a good battery. This job is mostly access and careful wiring reconnection.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🧤 Disconnect the battery negative cable first to prevent shorts.
• 🔥 Let the engine cool; the exhaust and radiator area can burn you.
• 🛑 Support the car with jack stands if you go underneath; never rely on a jack.
• ⚡ Do not let the starter power cable touch metal while the battery is connected.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 6" extension (3/8")
• 12" extension (3/8")
• Torque wrench (3/8" drive)
• Flathead screwdriver
• Phillips screwdriver
• Trim clip remover
• Needle-nose pliers
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Open the hood and keep your key/fob away from the car while you work.
• A torque wrench is a tool that tightens bolts to an exact setting so you don’t strip threads.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal and remove it from the battery post.
• Tuck the cable aside so it cannot spring back to the terminal.

Step 2: Remove the battery and battery tray (for access)

• Use a 10mm socket to remove the battery hold-down.
• Lift the battery out (it’s heavy—use mechanic gloves).
• Remove the battery tray fasteners using a 10mm socket and lift the tray out.

Step 3: Remove the air intake duct/airbox pieces as needed

• Use a Phillips screwdriver or flathead screwdriver to loosen the intake hose clamp(s).
• Unclip/remove any intake snorkel or duct clips using a trim clip remover.
• Disconnect the intake sensor connector by pressing the tab (use needle-nose pliers only if needed, gently).
• Lift the intake duct/airbox section out of the way to open up working room near the transmission side of the engine.

Step 4: Locate the starter and remove the electrical connections

• Use a flashlight to find the starter on the transmission bellhousing area (where engine meets transmission).
• Unplug the small starter solenoid connector by pressing the release tab (no tools if possible).
• Remove the rubber boot on the large power terminal, then use a 12mm socket to remove the nut and lift off the cable.
• Tip: Take a photo before disconnecting wires.

Step 5: Remove the starter mounting bolts

• Use a 14mm socket, 3/8" ratchet, and a 6" extension (3/8") or 12" extension (3/8") to remove the starter mounting bolts.
• Support the starter with your free hand as the last bolt comes out.

Step 6: Remove the starter from the engine bay

• Work the starter out carefully without pulling on nearby wiring.
• If space is tight, raise the front of the car using a floor jack (rated 2-ton minimum) and support it with jack stands (rated 2-ton minimum) to improve access from underneath.

Step 7: Install the new starter

• Set the new starter into position by hand.
• Start the mounting bolts by hand to avoid cross-threading.
• Tighten the starter mounting bolts with a 14mm socket and torque wrench (3/8" drive): Torque to 44 Nm (33 ft-lbs).

Step 8: Reconnect the starter wiring

• Install the large power cable and nut using a 12mm socket: Torque to 9 Nm (80 in-lbs).
• Apply a small amount of dielectric grease to the solenoid connector seal area, then plug the connector back in until it clicks.
• Reinstall the rubber boot over the power terminal.

Step 9: Reinstall the intake and battery

• Reinstall the intake duct/airbox using the Phillips screwdriver/flathead screwdriver and the trim clip remover for clips.
• Reinstall the battery tray using a 10mm socket.
• Set the battery back in place and reinstall the hold-down using a 10mm socket.
• Reconnect the negative battery terminal using a 10mm socket: Torque to 5 Nm (44 in-lbs).

---

✅ After Repair

• Start your Civic and confirm it cranks strongly and starts normally.
• Check that no warning lights appear and that the intake tube is fully seated (no hissing/air leaks).
• Recheck the starter area for any loose wiring or tools left behind.

---

💰 DIY vs Shop Cost

Shop Cost: ₹18,000-₹35,000 (parts + labor)

DIY Cost: ₹7,000-₹20,000 (parts only)

You Save: ₹11,000-₹15,000 by doing it yourself!

Shop labor rates vary but typically run ₹800-₹2,000/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
