🔧 CR-V - Starter Motor Replacement

You’ll be removing the battery and air intake parts to reach the starter motor, then swapping the old starter for a new one. This job is doable at home if you work slowly and follow each step carefully.

Difficulty Level: Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• ⚠️ Always disconnect the battery negative cable before working on the starter to avoid shocks and accidental cranking.
• ⚠️ You will be working near the engine and under the hood; let the engine cool completely to avoid burns.
• ⚠️ If you raise the front of your CR-V, always use jack stands; never rely only on a floor jack.
• ⚠️ Keep metal tools away from both battery terminals at the same time to avoid short circuits.
• ⚠️ Wear safety glasses and gloves to protect your eyes and hands from dirt and sharp edges.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ 10mm socket
• 🛠️ 12mm socket
• 🛠️ 14mm socket
• 🛠️ 3/8" drive ratchet
• 🛠️ 3/8" drive socket extension (6")
• 🛠️ 3/8" drive torque wrench (5–80 ft-lbs range)
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Phillips screwdriver (medium)
• 🛠️ Needle-nose pliers
• 🛠️ Trim clip removal tool
• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum)
• 🛠️ Work light
• 🛠️ Mechanic’s gloves
• 🛠️ Safety glasses
• 🛠️ Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Starter motor (new or remanufactured) - Qty: 1
• 🔩 Starter mounting bolts (if not reusing) - Qty: 2
• 🔩 Battery terminal cleaning brush - Qty: 1
• 🔩 Dielectric grease - Qty: 1
• 🔩 Anti-seize compound - Qty: 1
• 🔩 Replacement plastic clips for air intake/cover (optional) - Qty: 4–6

---

📋 Before You Begin

• 🚗 Park your CR-V on level ground, shift to P, and set the parking brake.
• 🔌 Turn the ignition OFF and remove the key; make sure all electrical loads (lights, fan, radio) are off.
• 🔋 You will be disconnecting the battery and removing it to access the starter.
• 📦 Lay out a clean area to place bolts and parts; take phone photos as you go for reference.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Open the hood and install the fender cover to protect the paint.
• Use the 10mm socket and ratchet to loosen the nut on the negative (black) battery terminal.
• Lift the negative cable off the battery post and tuck it aside so it cannot spring back.
• Repeat with the positive (red) battery terminal using the 10mm socket.
• Always remove negative first, reconnect it last.

Step 2: Remove the battery and battery tray

• Use the 10mm socket to remove the battery hold-down bracket bolts.
• Lift the battery straight up and out. It is heavy, lift with your legs.
• Remove the plastic battery base and any small covers around it by removing 10mm bolts with the ratchet.
• Use the 10mm socket to remove bolts holding the metal battery tray and lift the tray out to expose more of the transmission/engine area.

Step 3: Remove air intake duct and air box (for access)

• The air intake duct is the plastic tube going from the front of the car to the air filter box.
• Use a flathead screwdriver to loosen the hose clamp at the air filter box.
• Use the trim clip removal tool or flathead screwdriver to gently pop out any plastic clips holding the upper air duct.
• Lift the duct out and set aside.
• Open the air filter box, remove the air filter, and use a 10mm socket to remove bolts holding the air box to the body, then lift the box out if needed for better access.
• More room equals easier and safer work.

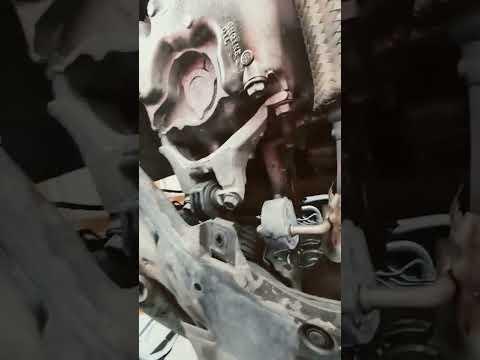

Step 4: Locate the starter motor

• The starter on your CR-V’s 2.4L engine sits on the front side of the engine/transmission area, roughly under where the battery tray was.
• Look for a cylindrical metal unit with a thick battery cable attached and a smaller plug-type connector.
• Use the work light to clearly see the starter and surrounding wiring.

Step 5: Disconnect starter electrical connectors

• Find the small electrical plug on the starter (the “signal” wire).
• Press the locking tab on the connector with your thumb or use the needle-nose pliers carefully, then pull the plug straight off.
• Next, locate the thick battery cable bolted to the starter terminal under a rubber boot.
• Pull back the rubber boot to expose the nut.
• Use the 12mm socket and ratchet to remove the nut holding the cable to the starter terminal; pull the cable off and move it aside.
• Do not twist the cable too hard; avoid cracking insulation.

Step 6: Remove starter mounting bolts

• The starter is held to the engine/transmission with usually two main bolts.
• Use the 14mm socket, 6" extension, and ratchet to remove the upper starter mounting bolt.
• Use the same tools to remove the lower mounting bolt. You may need to reach from a slightly different angle; turn the steering wheel if it gives you more arm room.
• Support the starter with one hand as you remove the last bolt so it does not drop.

Step 7: Remove the old starter

• Once the bolts are out, pull the starter straight away from the engine/transmission.
• You might need to wiggle it slightly to clear surrounding parts; be patient and do not force it.
• Lift the starter out of the engine bay.
• Compare the old starter to the new one: check mounting holes, electrical terminal positions, and overall length and shape.

Step 8: Install the new starter

• Lightly coat the starter mounting bolt threads with a tiny amount of anti-seize compound using a gloved finger. Do not get any on the starter gear.
• Position the new starter in place, lining up the mounting holes with the holes in the engine/transmission.
• Install the upper mounting bolt by hand first to avoid cross-threading.
• Install the lower mounting bolt by hand.
• Use the 14mm socket and ratchet to snug both bolts, then use the torque wrench to tighten them to 44 Nm (32 ft-lbs).
• Always start bolts by hand to protect threads.

Step 9: Reconnect starter wiring

• Slide the thick battery cable eyelet back onto the starter’s main terminal stud.
• Install the nut by hand, then tighten using the 12mm socket and torque wrench to 9 Nm (80 in-lbs).
• Pull the rubber boot back over the terminal to protect it.
• Reconnect the small electrical connector until it clicks into place.
• Apply a small amount of dielectric grease to the connector seal if you have it.

Step 10: Reinstall air box and intake duct

• Place the air box back into its mounting location.
• Use the 10mm socket to reinstall the air box mounting bolts and tighten them snugly.
• Reinstall the air filter into the box and close the lid securely.
• Reinstall the intake duct, sliding it into position and securing it with any plastic clips using the trim clip removal tool or by hand.
• Tighten the hose clamp at the air box using the flathead screwdriver.

Step 11: Reinstall battery tray and battery

• Place the metal battery tray back in and install its bolts with the 10mm socket; snug them down.
• Install any plastic battery base or covers you removed, again using the 10mm socket.
• Place the battery back onto the tray with the terminals facing the correct direction.
• Reinstall the battery hold-down bracket using the 10mm socket and tighten until snug; do not overtighten.

Step 12: Reconnect the battery

• Clean the battery posts and inside of the cable ends with the battery terminal cleaning brush if they are dirty or corroded.
• Apply a thin layer of dielectric grease to the battery posts.
• Install the positive (red) cable first. Use the 10mm socket to tighten the nut. Torque to about 5 Nm (44 in-lbs), just snug, not crushing.
• Install the negative (black) cable next and tighten with the 10mm socket to the same torque.
• Terminals should not twist by hand when fully tight.

---

✅ After Repair

• 🔁 Sit in the driver’s seat, make sure the CR-V is in P, then turn the key to START. The engine should crank smoothly and start without grinding or clicking.
• 👂 Listen for any unusual noises from the starter area (metal scraping, loud whining). If you hear anything strange, shut off the engine and recheck mounting and wiring.
• 💡 You may need to reset clock and radio presets after battery disconnection.
• 🚗 Let the engine idle for a few minutes and then do a short test drive, shutting off and restarting the engine several times to confirm consistent starting.
• ⚠️ If any warning lights stay on (especially charging or battery lights), have the system scanned with a diagnostic tool.

---

💰 DIY vs Shop Cost

Shop Cost: $600–$900 (parts + labor)

DIY Cost: $150–$350 (parts only)

You Save: $250–$750 by doing it yourself!

Shop labor rates typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours.

---
