🔧 Camry - Starter Motor Replacement

The starter motor cranks your engine when you turn the key/start button. If it’s failing, you may get a single click, slow cranking, or no crank at all. Replacing the starter restores reliable starting.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative terminal first to prevent a short (the starter cable is always “hot”).
• ⚠️ Let the engine cool before working near the exhaust/engine bay.
• ⚠️ If you raise the car, support it on jack stands on solid, level ground (never rely on a jack alone).
• ⚠️ Keep metal tools away from the starter B+ terminal and body ground at the same time.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-80 ft-lbs range)
• 6" extension (3/8" drive)
• 12" extension (3/8" drive)
• Flathead screwdriver
• Trim clip removal tool
• Needle-nose pliers
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter electrical terminal nut (if damaged) - Qty: 1
• Dielectric grease (small packet) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and keep the key fob away from the car (prevents accidental starting).
• Disconnect the battery negative cable using a 10mm socket.
• If you plan to work from underneath, chock the rear wheels and raise the front with a floor jack, then support with jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal and remove the cable.
• Tuck the cable aside so it cannot spring back onto the battery post.

Step 2: Remove the air intake assembly for access

• Use a flathead screwdriver to loosen the hose clamp(s) on the intake tube.
• Unclip/unbolt the air filter housing and ducting using a 10mm socket as needed.
• Lift the intake duct/air box out of the way to create working room near the transmission side of the engine.

Step 3: Locate the starter and remove the electrical connections

• Find the starter mounted to the transmission bellhousing (where engine and transmission meet).
• Remove the small signal wire connector by releasing its lock tab (use needle-nose pliers gently if needed).
• Remove the rubber protective boot from the main power stud (B+ terminal).
• Use a 12mm socket to remove the nut on the B+ terminal and lift the cable off the stud.
• A ratchet extension helps reach tight fasteners. (An extension is a metal bar that makes your socket reach farther.)

Step 4: Remove the starter mounting bolts

• Support the starter with one hand.
• Use a 14mm socket, 3/8" ratchet, and a 6" or 12" extension to remove the two starter mounting bolts.
• Pull the starter straight out from the bellhousing.

Step 5: Install the new starter

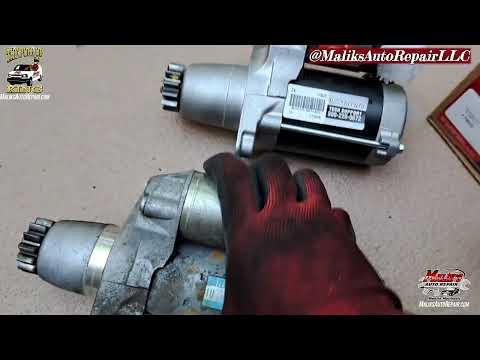

• Compare the new starter to the old one (same mounting ears and electrical stud locations).
• Slide the new starter into place, making sure it sits flush against the mounting surface.
• Start both mounting bolts by hand to avoid cross-threading.
• Tighten the mounting bolts using a 14mm socket, then Torque to 37 Nm (27 ft-lbs) with a 3/8" torque wrench.

Step 6: Reconnect the starter wiring

• Install the main power cable onto the B+ stud.
• Thread the nut on by hand, then tighten with a 12mm socket and Torque to 9 Nm (80 in-lbs).
• Reinstall the rubber boot over the B+ connection.
• Reconnect the small signal connector until it clicks.
• Apply a tiny amount of dielectric grease to connector seals only (not on the stud threads).

Step 7: Reinstall the air intake assembly

• Reinstall the air box/ducting and tighten fasteners with a 10mm socket.
• Tighten intake tube clamps with a flathead screwdriver.
• Double-check that any clips are fully seated and nothing is left loose.

Step 8: Reconnect the battery

• Reconnect the negative battery cable and tighten with a 10mm socket.
• Make sure the terminal is snug and does not rotate by hand.

---

✅ After Repair

• Start the engine and confirm it cranks strongly with no clicking.
• Check that no warning lights appear abnormally after the battery reconnect.
• Listen for rubbing/grinding (should be none). If you hear grinding, shut off immediately and recheck starter seating.
• Recheck the starter B+ nut after a short test drive to confirm it’s still tight.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $140-$350 (parts only)

You Save: $310-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
