🔧 4Runner - Starter Motor Replacement

On your 4Runner, the starter motor sits in the “valley” of the V6 under the intake manifold. To replace it, you’ll remove the air intake and upper intake manifold to access the starter, then swap it and reassemble with new gaskets to prevent vacuum leaks.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching the starter wiring (the main cable is always hot).
• ⚠️ Work on a cold engine; you’ll be leaning over the intake and near coolant hoses.
• ⚠️ Relieve fuel pressure before disconnecting any fuel line quick-connects.
• ⚠️ Keep bolts and connectors organized; mixing intake bolts can crack plastic parts.
• ⚠️ Do not pry on plastic intake pieces; they can break and cause vacuum leaks.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Battery terminal wrench 10mm
• Socket set 8mm, 10mm, 12mm, 14mm
• Ratchet 3/8"
• Torque wrench 3/8" (10–80 ft-lbs range)
• Extension set 3/8" (3", 6", 10")
• Universal joint 3/8"
• Wobble extension 3/8"
• Flathead screwdriver (medium)
• Pliers (hose clamp pliers or slip-joint)
• Trim clip removal tool
• Pick tool (small)
• Fuel line quick-disconnect tool set (specialty)
• Magnetic pickup tool
• Shop towels
• Drain pan (at least 2 gallons)
• Funnel

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Upper intake manifold gasket set - Qty: 1
• Throttle body gasket - Qty: 1
• Toyota-compatible coolant (pink SLLC equivalent) - Qty: 1-2 quarts (top-off)
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• 🧰 Park on level ground, shift to Park, and set the parking brake.
• 🧰 Let the engine fully cool (intake and coolant hoses will be handled).
• 🧰 Disconnect the negative battery cable using a 10mm wrench and isolate it so it can’t spring back.
• 🧰 Relieve fuel pressure: remove the fuel pump/EFI fuse, then crank the engine for 3–5 seconds; reinstall the fuse after.
• 🧰 Take photos of hose routing first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and air intake duct

• Remove the engine cover by pulling it upward firmly by hand (it pops off grommets).
• Use an 8mm socket or flathead screwdriver to loosen the intake hose clamps.
• Unplug the mass airflow sensor connector (press the tab, then pull).
• Remove the air intake tube/ducting and set it aside.

Step 2: Remove the throttle body (move aside)

• Unplug the throttle body electrical connector (press tab, pull off).
• Use pliers to move the coolant hose clamps back (some 4Runner throttle bodies have small coolant hoses). Slide hoses off carefully and catch any coolant in a drain pan.
• Use a 10mm socket to remove the throttle body bolts.
• Remove the throttle body and the old gasket. Keep the throttle body opening clean with shop towels.
• Avoid pushing on the throttle plate by hand.

Step 3: Disconnect intake/EVAP/PCV hoses and wiring from the intake manifold

• Label and disconnect vacuum lines using pliers and a pick tool (a pick helps lift stuck hose edges without tearing rubber).
• Disconnect the EVAP purge hose/line and any PCV hoses attached to the manifold.
• Unclip any harness retainers from the manifold using a trim clip removal tool.

Step 4: Disconnect the fuel line quick-connect (if equipped at the manifold)

• Wrap the connection with shop towels to catch any fuel mist.
• Use a fuel line quick-disconnect tool set (specialty) to separate the line (follow the tool’s size match and instructions).
• Cap/cover the open ends with clean towels to keep dirt out.

Step 5: Remove the upper intake manifold

• Remove the manifold bolts/nuts using a 12mm socket, plus extensions and a universal joint for the hard-to-reach fasteners.
• Lift the intake manifold straight up and out. If it feels stuck, gently rock it—do not pry on sealing surfaces.
• Remove the old manifold gaskets and keep debris out of the intake ports using shop towels.

Step 6: Access and disconnect the starter wiring

• Locate the starter in the center valley.
• Remove the small trigger wire connector (usually a push-on/clip) by hand or with a pick tool if needed.
• Remove the main battery cable nut using a 12mm socket (cover it after removal so it can’t touch ground).
• Apply a tiny amount of dielectric grease to the trigger-wire connector seal during reassembly.

Step 7: Remove the starter motor

• Use a 14mm socket with a wobble extension to remove the starter mounting bolts.
• Lift the starter out carefully. Use a magnetic pickup tool if a bolt tries to drop into the valley.

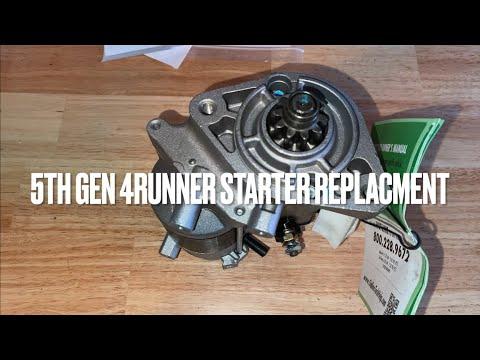

Step 8: Install the new starter motor

• Set the new starter in place and hand-thread the mounting bolts first (prevents cross-threading).
• Tighten the starter mounting bolts with a torque wrench: Torque to 39 Nm (29 ft-lbs).
• Reconnect the main battery cable and tighten the nut: Torque to 9 Nm (80 in-lbs).
• Reconnect the trigger wire connector until it clicks/locks.

Step 9: Reinstall the intake manifold with new gaskets

• Install new upper intake manifold gaskets (make sure they sit flat and fully seated).
• Set the intake manifold back in place carefully, keeping harnesses and hoses from getting pinched.
• Install bolts/nuts finger-tight, then snug evenly in a crisscross pattern using a 12mm socket.
• Final torque the intake fasteners: Torque to 21 Nm (15 ft-lbs).

Step 10: Reinstall the throttle body and intake duct

• Install a new throttle body gasket, then reinstall the throttle body using a 10mm socket.
• Tighten throttle body bolts: Torque to 10 Nm (89 in-lbs).
• Reconnect coolant hoses and reposition clamps using pliers.
• Reconnect the throttle body connector.
• Reinstall the air intake duct and tighten clamps with an 8mm socket or flathead screwdriver.
• Reconnect the mass airflow sensor connector.

Step 11: Reconnect fuel line and refill/top off coolant

• Reconnect the fuel line quick-connect until it clicks; gently tug to confirm it’s locked.
• Top off coolant using a funnel (only as needed for what you lost).
• Wipe any spilled fuel or coolant completely using shop towels.

Step 12: Reconnect the battery

• Reconnect the negative battery cable using a 10mm wrench and tighten securely.

---

✅ After Repair

• 🧪 Key ON (engine OFF) for 5 seconds, then OFF; repeat 2–3 times to help prime fuel pressure before starting.
• 🧪 Start the engine and listen for a strong, normal crank.
• 🧪 Check for fuel smell/leaks near the quick-connect and for vacuum leak symptoms (rough idle, hissing).
• 🧪 Let it reach operating temperature, then recheck coolant level and top off if needed.
• 🧪 If the check engine light comes on, recheck intake and EVAP connectors first.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,500 (parts + labor)

DIY Cost: $250-$450 (parts only)

You Save: $650-$1,050 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
