🔧 Starter Motor - Replacement

Your Frontier’s starter motor spins the engine so it can start. When the starter fails, you may get a single click, slow cranking, or no crank at all. This job is mostly access and careful wiring work under the truck.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: torque specs listed match typical VQ40DE hardware; verify if you have the factory manual.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable first to prevent a short (the starter power wire is always “hot”).
• ⚠️ Support the truck on jack stands before working underneath; never rely on a floor jack alone.
• ⚠️ Let the exhaust cool; the starter sits near hot components.
• ⚠️ Keep the key out of the ignition so no one cranks the engine while you’re underneath.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" torque wrench
• 6" extension (3/8")
• 12" extension (3/8")
• Wobble extension (3/8")
• Trim clip tool
• Flathead screwdriver
• Flashlight
• Wire brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter electrical terminal nut (if damaged/corroded) - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• 🧰 Park on level ground, put the transmission in 1st gear, and set the parking brake.
• 🧰 Place wheel chocks behind the rear tires.
• 🧰 Disconnect the battery: use a 10mm socket to remove the negative (-) cable and tuck it aside so it can’t spring back.
• 🧰 If equipped with front skid plates, plan to remove them for access (common on PRO-4X).
• 🧰 Tool tip: a wobble extension is a slightly flexible extension that helps reach bolts at an angle.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the truck

• Use a floor jack (rated 3-ton minimum) to lift the front of the truck at the front jacking point.
• Place jack stands (rated 3-ton minimum) under the frame rails and lower onto the stands.
• Give the truck a gentle shake to confirm it’s stable before crawling under.

Step 2: Remove the front skid plate(s) (if equipped)

• Use a 12mm socket and 14mm socket with a 3/8" ratchet to remove skid plate bolts.
• Support the plate with one hand as you remove the last bolts, then lower it down.
• Bag bolts by location for reassembly.

Step 3: Locate the starter motor

• Use a flashlight to find the starter mounted to the transmission bellhousing (where the engine meets the transmission).
• The starter has a thick battery cable on a stud (B+) and a smaller plug for the solenoid signal.

Step 4: Disconnect the starter wiring

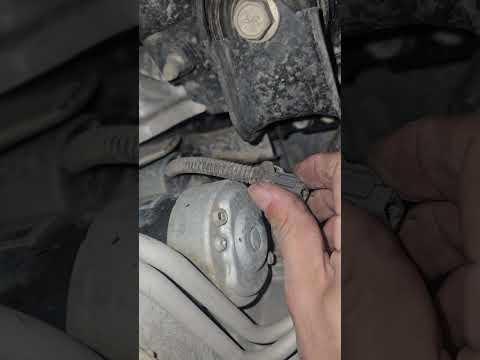

• Unclip the small solenoid connector: use a flathead screwdriver to gently lift the locking tab if needed, then pull the connector straight off.
• Remove the B+ cable nut: use a 12mm socket to remove the nut from the starter stud, then lift the cable off.
• Move the cable aside so it can’t touch metal.

Step 5: Remove the starter mounting bolts

• Support the starter with one hand.
• Use a 14mm socket, 3/8" ratchet, and a 6" extension (3/8") (or wobble extension (3/8") if tight) to remove the starter mounting bolts.
• Pull the starter straight back from the bellhousing, then lower it out.

Step 6: Prep the mounting surfaces

• Use a wire brush to lightly clean the starter mounting pad and any corrosion on the cable end.
• Wipe away loose debris so the starter sits flat (a poor ground contact can cause slow cranking).

Step 7: Install the new starter

• Position the new starter into the bellhousing opening, aligning it with the bolt holes.
• Start the mounting bolts by hand a few turns to avoid cross-threading.
• Tighten with a 14mm socket and 3/8" ratchet, then torque with a 3/8" torque wrench: Torque to 44 Nm (33 ft-lbs).

Step 8: Reconnect the starter wiring

• Install the B+ cable onto the starter stud and thread the nut on by hand.
• Torque the terminal nut with a 12mm socket and 3/8" torque wrench: Torque to 9 Nm (80 in-lbs).
• Add a small amount of dielectric grease to the solenoid connector seal area, then push the connector on until it clicks.

Step 9: Reinstall skid plate(s)

• Lift the skid plate into place and start all bolts by hand.
• Tighten using a 12mm socket and 14mm socket with a 3/8" ratchet.

Step 10: Reconnect the battery and lower the truck

• Reconnect the battery negative cable using a 10mm socket.
• Use a floor jack (rated 3-ton minimum) to lift slightly, remove the jack stands (rated 3-ton minimum), then lower the truck.
• Remove the wheel chocks.

---

✅ After Repair

• ✅ Start the engine and confirm it cranks strongly and starts normally.
• ✅ Check that no wires are rubbing on the exhaust, steering shaft, or moving parts.
• ✅ If you hear a grinding noise, shut it off and recheck starter seating and bolt tightness.

---
