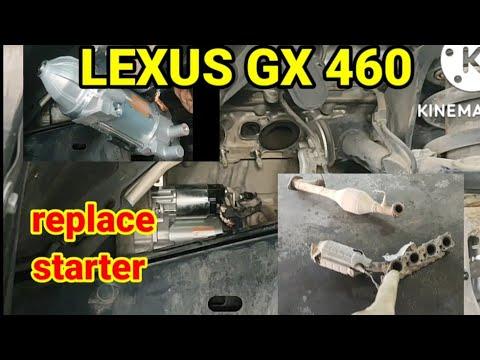

🔧 GX460 - Starter Motor Replacement

On your GX460, the starter motor sits in the “V” of the V8, under the intake manifold. Replacing it requires removing the intake manifold to access the starter, then reassembling with new gaskets to prevent vacuum leaks.

Difficulty Level: Advanced | Estimated Time: 4-7 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery terminal first to prevent electrical short and accidental cranking.
• ⚠️ Work on a cold engine; the intake area and coolant passages can burn you.
• ⚠️ Fuel vapors may be present when disconnecting the fuel line—no smoking/sparks, and keep a fire extinguisher nearby.
• ⚠️ Cover the intake ports as soon as the manifold is off; dropping a bolt into the engine can cause severe damage.
• ⚠️ Battery disconnect is required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 1/4" ratchet
• 3/8" torque wrench (10-80 N·m range)
• 6" socket extension
• 12" socket extension
• Universal joint adapter
• Flat-blade screwdriver
• Needle-nose pliers
• Hose clamp pliers
• Trim clip removal tool
• Pick tool
• Clean shop towels
• Masking tape
• Paint marker
• Magnetic parts tray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Intake manifold gasket set - Qty: 1
• Throttle body gasket - Qty: 1
• Dielectric grease - Qty: 1
• Brake cleaner or throttle-body safe cleaner - Qty: 1

---

📋 Before You Begin

• 🧰 Park on level ground, shift to Park, and set the parking brake.
• 🧰 Disconnect the negative battery cable using a 10mm socket, and isolate it so it can’t spring back.
• 🧰 Label electrical connectors and vacuum hoses with masking tape as you remove them.
• 🧰 Have clean shop towels ready to plug intake ports once the manifold is removed.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove engine covers and the air intake tube

• Remove the plastic engine cover(s) by lifting up and releasing any retainers using a trim clip removal tool.
• Loosen the intake tube clamps with a flat-blade screwdriver.
• Unplug the intake duct sensor connectors (press the tab, then pull) and remove the intake tube/air ducting.

Step 2: Remove the throttle body area connections

• Unplug the throttle body electrical connector by pressing the lock tab (use a pick tool gently if needed).
• Remove any small coolant or vacuum hoses from the throttle body area using hose clamp pliers where clamps are used.
• Remove the throttle body mounting bolts using a 10mm socket.
• Remove the throttle body and old gasket; clean the mating surface with clean shop towels and throttle-body safe cleaner.
• Don’t scratch aluminum sealing surfaces.
• Set the throttle body aside safely (do not hang by hoses/wiring).
• When reinstalling later: Torque to 10 N·m (89 in-lbs).

Step 3: Disconnect vacuum lines, EVAP, and electrical connectors on the intake manifold

• Mark and disconnect vacuum hoses and EVAP lines using needle-nose pliers for spring clamps.
• Unplug intake manifold-related electrical connectors (press the release tab; use a pick tool lightly if stuck).
• Move harnesses aside and secure them with light tension (do not pull on wires).

Step 4: Relieve fuel pressure and disconnect the fuel feed line

• Relieve residual pressure by loosening the fuel connection slowly while holding a clean shop towel around the joint.
• Disconnect the fuel line quick-connect at the manifold/fuel rail area (release the connector tabs by hand; use a pick tool only if necessary).
• Catch any fuel drips with clean shop towels and keep the area ventilated.

Step 5: Remove the intake manifold (upper)

• Remove the intake manifold bolts/nuts using a 12mm socket with a 6" socket extension as needed.
• Lift the intake manifold straight up and off, watching for any hidden hoses or connectors still attached.
• Immediately plug the intake ports with clean shop towels.
• Remove the old intake manifold gaskets.
• When reinstalling later: Torque to 21 N·m (15 ft-lbs).

Step 6: Access and disconnect the starter wiring

• With the manifold off, locate the starter in the engine valley.
• Remove the starter solenoid signal wire connector (small connector) by pressing the tab (use a pick tool gently if needed).
• Remove the main starter power cable nut using a 12mm socket, then pull the cable off.
• Apply a tiny amount of dielectric grease to the connector seals during reassembly.

Step 7: Remove the starter motor

• Remove the starter mounting bolts using a 14mm socket with a 12" socket extension and universal joint adapter as needed.
• Lift the starter out of the valley carefully.
• When reinstalling later: Torque to 39 N·m (29 ft-lbs).

Step 8: Install the new starter motor

• Set the new starter into place by hand first (do not force it).
• Start the mounting bolts by hand to avoid cross-threading, then tighten with a 14mm socket.
• Final tighten using a 3/8" torque wrench: Torque to 39 N·m (29 ft-lbs).
• Reconnect the main power cable and tighten with a 12mm socket snugly (do not overtighten the stud).
• Reconnect the starter signal connector until it clicks.

Step 9: Reinstall intake manifold with new gaskets

• Remove the shop towels from the intake ports and verify nothing fell in.
• Install new intake manifold gaskets in the correct orientation.
• Set the intake manifold down evenly.
• Tighten bolts/nuts in an even crisscross pattern using a 12mm socket.
• Final tighten using a 3/8" torque wrench: Torque to 21 N·m (15 ft-lbs).
• Even tightening prevents vacuum leaks.

Step 10: Reconnect fuel line, hoses, and electrical connectors

• Reconnect the fuel quick-connect until it clicks/locks; gently tug to confirm it’s locked.
• Reconnect all vacuum/EVAP lines using needle-nose pliers or hose clamp pliers as required.
• Reconnect all electrical connectors (listen/feel for a click).

Step 11: Reinstall throttle body and air intake

• Install a new throttle body gasket, then reinstall the throttle body using a 10mm socket.
• Final tighten using a 3/8" torque wrench: Torque to 10 N·m (89 in-lbs).
• Reconnect throttle body connector and any hoses/clamps.
• Reinstall intake tube/ducting and tighten clamps using a flat-blade screwdriver.
• Reinstall engine cover(s).

Step 12: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.

---

✅ After Repair

• ✅ Key ON (engine OFF) for 5 seconds, then OFF; repeat 2-3 times to help prime the fuel system.
• ✅ Start the engine and let it idle; expect a slightly rough idle for a minute while it relearns.
• ✅ Check carefully for fuel smell/leaks around the fuel connection and for any hissing (vacuum leak) near the intake manifold.
• ✅ If the check engine light comes on, scan for codes and recheck any unplugged connectors/hoses.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,500 (parts + labor)

DIY Cost: $250-$600 (parts only)

You Save: $650-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-7 hours.

---
