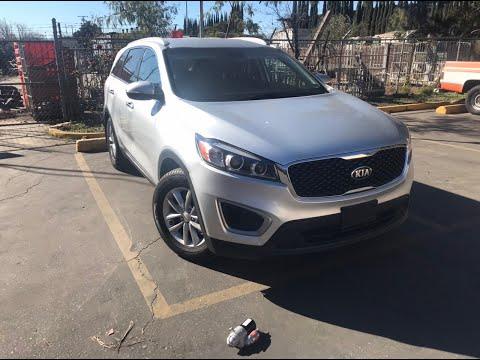

🔧 Sorento - Starter Motor Replacement

The starter motor cranks your engine when you turn the key/push the start button. On your Sorento, replacement is mostly about safe lifting, removing a few shields/ducts, unbolting the starter, and transferring the wiring to the new unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: starter is accessed from underneath near the transmission bellhousing.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before touching starter wiring (high current).
• ⚠️ Support the Sorento with jack stands; never rely on a floor jack alone.
• ⚠️ Let the exhaust cool fully if you just drove it (burn risk).
• ⚠️ Keep metal tools off the starter’s main power stud to avoid arcing.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• Universal joint adapter
• Torque wrench (3/8" drive)
• Trim clip remover
• Flathead screwdriver
• Needle-nose pliers
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Starter electrical terminal nut(s) - Qty: 1
• Lower engine splash shield clips - Qty: 4

---

📋 Before You Begin

• Park on level ground, shift to Park, and apply the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and make sure you have your radio presets/passwords if needed.
• Plan your access: most people reach the starter from underneath after removing the lower splash shield.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal clamp.
• Lift the negative cable off and position it so it can’t spring back onto the terminal.
• This prevents dangerous short circuits.

Step 2: Raise and support the Sorento

• Use a floor jack (rated 3-ton minimum) to lift the front of the vehicle at a proper front lift point.
• Set it down securely on jack stands (rated 3-ton minimum).
• Shake the vehicle gently to confirm it’s stable before going underneath.

Step 3: Remove the lower splash shield

• Use a trim clip remover to pop out plastic clips.
• Use a 10mm socket to remove any small bolts holding the shield.
• Set the shield and hardware aside in a small pile so nothing gets lost.

Step 4: Locate the starter and clear working room

• Use a work light to find the starter (a small motor bolted to the transmission bellhousing area, with a thick battery cable on it).
• If a connector or harness clip blocks access, use needle-nose pliers or a flathead screwdriver to release it carefully.
• Don’t pull wires—only pull connectors.

Step 5: Disconnect the starter wiring

• Remove the small trigger-wire connector by pressing the tab and pulling it off (use needle-nose pliers gently if tight).
• Use a 12mm socket to remove the nut on the main power cable stud.
• Move the cable aside so it can’t touch metal.
• Torque on install: Torque to 9.8 Nm (87 in-lbs) for the main power terminal nut.

Step 6: Remove the starter mounting bolts

• Use a 14mm socket, 3/8" drive ratchet, and a 3/8" drive extension set to remove the starter mounting bolts.
• If the angle is awkward, add a universal joint adapter (this is a swivel that helps the socket bend around obstacles).
• Support the starter with one hand as you remove the last bolt so it doesn’t drop.

Step 7: Install the new starter

• Position the new starter in place by hand.
• Start both mounting bolts by hand first to prevent cross-threading.
• Use a 14mm socket and 3/8" drive ratchet to snug the bolts evenly.
• Use a torque wrench (3/8" drive) to finish tightening: Torque to 49 Nm (36 ft-lbs) for starter mounting bolts.

Step 8: Reconnect the starter wiring

• Install the main power cable onto the starter stud and thread the nut on by hand.
• Use a 12mm socket to tighten the nut: Torque to 9.8 Nm (87 in-lbs).
• Plug the small trigger-wire connector back in until it clicks.

Step 9: Reinstall the lower splash shield

• Position the shield and install any bolts using a 10mm socket.
• Reinstall clips using a trim clip remover to align them, then press them in by hand.

Step 10: Lower the vehicle and reconnect the battery

• Use the floor jack (rated 3-ton minimum) to lift slightly, remove the jack stands (rated 3-ton minimum), then lower fully.
• Reconnect the negative battery terminal using a 10mm socket.
• Torque on install: Torque to 5 Nm (44 in-lbs) for the battery terminal clamp.

---

✅ After Repair

• Start the engine and confirm it cranks strongly with no clicking.
• With the engine running, check that no warning lights appear related to low voltage.
• Listen near the starter area for abnormal grinding (if heard, shut off and recheck mounting and alignment).
• Take a short test drive and recheck underneath for any loose shield hardware.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$1,050 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $370-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
