🔧 Renegade - Starter Motor Replacement

Replacing the starter motor fixes a no-crank or slow-crank condition when your A4’s battery is good but the engine won’t turn over. On your Renegade, the starter is bolted to the transmission bellhousing and has a large battery cable plus a small trigger wire.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a short or fire.
• ⚠️ Support the vehicle with jack stands before working underneath; never rely on a jack.
• ⚠️ Let the exhaust and engine cool before reaching near the starter area.
• ⚠️ Keep the key fob away from the vehicle while working to prevent accidental cranking.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set 8mm-18mm
• Ratchet 3/8"
• Ratchet 1/2"
• Extensions 3/8" (3", 6", 12")
• Universal joint adapter 3/8"
• Metric combination wrench set 8mm-18mm
• Torque wrench 3/8" (10-100 Nm)
• Torque wrench 1/2" (40-200 Nm)
• Trim clip remover
• Flat-blade screwdriver
• Needle-nose pliers
• Work light
• Battery terminal wrench 10mm

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter mounting bolts - Qty: 2
• Battery terminal anti-corrosion washers - Qty: 1 set
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• 🧱 Place wheel chocks behind the rear wheels.
• 🔋 Open the hood and disconnect the battery: use a 10mm battery terminal wrench to remove the negative (-) cable first, then isolate it so it can’t spring back.
• 💡 Set up a work light so you can clearly see the starter wiring.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the vehicle

• Use a floor jack (rated 3-ton minimum) to lift the front of your Renegade at the proper front jacking point.
• Place jack stands (rated 3-ton minimum) under solid frame/support points and lower the vehicle onto them.
• Give the vehicle a gentle shake to confirm it’s stable.

Step 2: Remove the lower splash shield (if equipped)

• Use a trim clip remover and flat-blade screwdriver to remove plastic clips/screws holding the underbody shield.
• Use a metric socket set 8mm-18mm with a 3/8" ratchet as needed for any small bolts.
• Set hardware aside in a tray so nothing gets lost. Keep bolts grouped by location.

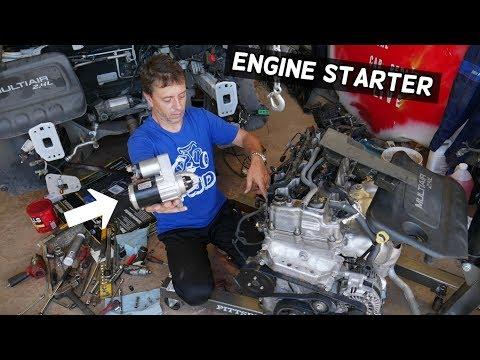

Step 3: Locate the starter motor

• From underneath, use a work light to find the starter where the engine meets the transmission (bellhousing area).
• You’ll see a large cable (battery power) and a small connector (start signal).

Step 4: Disconnect the starter wiring

• Use a metric combination wrench set 8mm-18mm or metric socket set 8mm-18mm to remove the nut holding the large battery cable to the starter terminal.
• Use needle-nose pliers to help release any wiring clips, then unplug the small trigger connector.
• Move the cables aside so they can’t get pinched during removal.
• Take a quick photo before unplugging.

Step 5: Remove the starter mounting bolts

• Support the starter with one hand.
• Use a 3/8" ratchet with extensions 3/8" (3", 6", 12") and a universal joint adapter 3/8" to reach the mounting bolts.
• Use a metric socket set 8mm-18mm to remove the two starter bolts.
• Carefully lower the starter out of the bellhousing area.

Step 6: Transfer any brackets/heat shield (if present)

• If the old starter has a small bracket or heat shield, remove it using a metric socket set 8mm-18mm and install it on the new starter.
• Make sure the new starter matches the old one (mounting ears, electrical studs, connector style).

Step 7: Install the new starter

• Position the new starter into place and hand-start the mounting bolts to avoid cross-threading.
• Use a 3/8" ratchet and extensions 3/8" (3", 6", 12") to snug the bolts evenly.
• Use a torque wrench 3/8" (10-100 Nm) to tighten the starter bolts: Torque to 55 Nm (41 ft-lbs).

Step 8: Reconnect the starter wiring

• Plug in the small trigger connector until it clicks.
• Install the large battery cable onto the starter terminal stud and tighten the nut using a metric combination wrench set 8mm-18mm.
• Use dielectric grease lightly on the connector seals to help keep moisture out.
• Do not overtighten the terminal stud.

Step 9: Reinstall the splash shield

• Reinstall the underbody shield using the trim clip remover, flat-blade screwdriver, and metric socket set 8mm-18mm as needed.

Step 10: Lower the vehicle and reconnect the battery

• Use the floor jack (rated 3-ton minimum) to lift slightly, remove the jack stands (rated 3-ton minimum), then lower the vehicle.
• Reconnect the battery negative cable using the 10mm battery terminal wrench.
• Install battery terminal anti-corrosion washers if you’re using them.

---

✅ After Repair

• 🔑 Start the engine and confirm it cranks strongly and starts normally.
• 🔍 Listen for abnormal grinding or a “whirring” sound; if present, shut off and recheck starter mounting and wiring.
• 🧰 Check under the vehicle for any loose tools or dangling wiring.
• ⚡ If you had any warning lights from low voltage, drive a short loop; many clear after a few key cycles.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
