🔧 QX50 - Starter Motor Replacement

The starter motor spins the engine so it can start. On your QX50, the starter sits at the transmission bellhousing and is easiest to reach from underneath after removing the lower splash shield.

Assumption: This covers the common factory VQ37VHR starter layout used on the QX50.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent electrical short and fire.
• ⚠️ Support the vehicle on jack stands; never work under a car held only by a jack.
• ⚠️ Let the exhaust cool completely; the starter area can be near hot components.
• ⚠️ Keep tools off the starter B+ terminal; it is direct battery power.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 6" extension
• 12" extension
• Wobble extension (specialty)
• Torque wrench (10–80 ft-lbs range)
• Flat trim clip tool
• Flashlight
• Small wire brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Lower engine splash shield clips - Qty: 4-10
• Battery terminal anti-corrosion spray - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and remove the negative battery cable using a 10mm socket. Tuck it aside so it cannot spring back.
• Raise the front of the vehicle with a floor jack and support it with jack stands at the proper lift points.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower splash shield

• Use a flat trim clip tool to pop out plastic clips (center pin first, then the body).
• Use a 10mm socket to remove any splash shield bolts.
• Lower and set the shield aside.
• Bag bolts/clips so nothing gets lost.

Step 2: Locate the starter motor

• From underneath, use a flashlight to find the starter where the engine meets the transmission (bellhousing area).
• You’ll see a thick power cable on a stud (B+ terminal) and a smaller plug/wire (starter signal).

Step 3: Disconnect the starter wiring

• If there’s a protective rubber boot on the main terminal, pull it back by hand.
• Use a 12mm socket to remove the nut on the main power cable (B+).
• Remove the small signal connector by pressing the lock tab and pulling straight off (no twisting).
• Clean the cable eyelet lightly with a small wire brush if it’s corroded.
• Torque to 9.8 Nm (87 in-lbs) for the B+ terminal nut during reassembly.

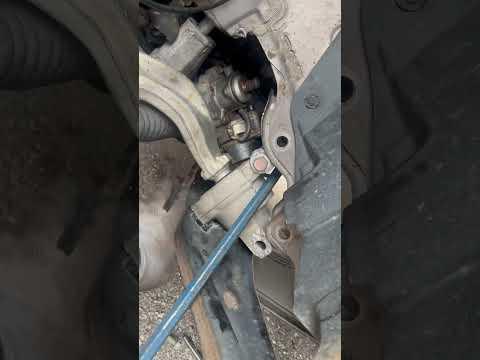

Step 4: Remove the starter mounting bolts

• Support the starter with one hand so it doesn’t drop.
• Use a 14mm socket with a 3/8" ratchet and a 6" extension (or wobble extension (specialty) if needed) to remove the two starter mounting bolts.
• Pull the starter straight back to unseat it, then lower it out.
• Torque to 49 Nm (36 ft-lbs) for the starter mounting bolts during reassembly.

Step 5: Install the new starter

• Compare the old and new starter: mounting ears, electrical studs, and connector style should match.
• Position the new starter into the bellhousing and start both mounting bolts by hand to avoid cross-threading.
• Tighten with a 14mm socket, then torque to 49 Nm (36 ft-lbs) using a torque wrench.

Step 6: Reconnect the starter wiring

• Install the main power cable onto the stud and thread the nut on by hand.
• Tighten using a 12mm socket, then torque to 9.8 Nm (87 in-lbs).
• Reconnect the small signal connector until it clicks into place.
• Reposition the rubber boot over the main terminal.

Step 7: Reinstall the splash shield

• Lift the shield into place and start any bolts by hand.
• Tighten splash shield bolts with a 10mm socket (snug; do not over-tighten plastic).
• Reinstall clips using the flat trim clip tool.

Step 8: Reconnect the battery

• Lower the vehicle off the jack stands using the floor jack.
• Reconnect the negative battery cable using a 10mm socket.
• Apply battery terminal anti-corrosion spray if you have it.

---

✅ After Repair

• Start the engine and confirm it cranks strongly with no clicking.
• With the engine running, check underneath for any loose wiring near the starter.
• If you hear grinding, shut off immediately and re-check starter seating and bolt tightness.
• Make sure no warning lights appear related to low voltage (they often clear after a few drives if the battery was disconnected briefly).

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $470-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
