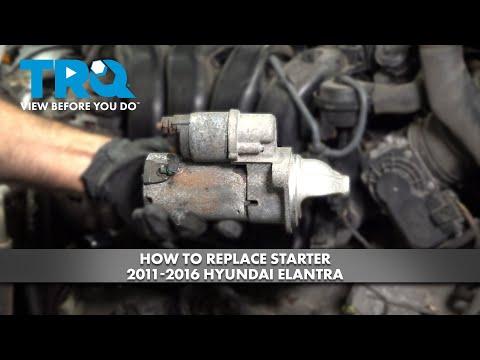

🔧 Elantra - Starter Motor Replacement

The starter motor cranks your engine when you turn the key/push start. If it’s failing, you may hear a single click, slow cranking, or nothing at all even with a good battery.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: Your Elantra has the 1.8L with the starter on the transmission side.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a short.
• ⚠️ Support the car with jack stands on a level surface; never rely on a jack.
• ⚠️ Keep hands/tools off the radiator fan area; it can turn on unexpectedly.
• ⚠️ Let the engine cool before working near the exhaust/manifold area.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" extensions (3" and 6")
• 3/8" swivel adapter
• Torque wrench (10–100 ft-lbs range)
• Flathead screwdriver
• Needle-nose pliers
• Trim clip remover
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Battery terminal anti-corrosion pads - Qty: 1
• Intake duct clamp (assorted) - Qty: 1

---

📋 Before You Begin

• Park on level ground, turn the ignition OFF, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and make sure you have your radio presets if you care about them.
• Plan to disconnect the battery: negative terminal first, reconnect it last.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal and remove it.
• Tuck the cable aside so it cannot spring back onto the battery post.
• Negative off first prevents accidental shorting.

Step 2: Remove the air intake duct (for room)

• Use a flathead screwdriver to loosen the hose clamps on the intake duct.
• Unclip/remove any small hoses using needle-nose pliers as needed.
• Lift the intake duct out and set it aside.
• This opens access to wiring and the starter area.

Step 3: Raise and support the front of the car

• Use a floor jack (rated 2-ton minimum) to lift the front of the car.
• Set the car securely on jack stands (rated 2-ton minimum).
• Give the car a gentle push to confirm it’s stable.

Step 4: Remove the lower splash shield (if equipped)

• Use a trim clip remover to pop out plastic clips.
• Use a 10mm socket for any small bolts.
• Lower the shield and set it aside.

Step 5: Locate the starter and label the wires

• Find the starter on the transmission side of the engine (where engine meets transmission).
• Use your work light to clearly see the electrical connections.
• If helpful, take a photo so the wires go back exactly the same.

Step 6: Disconnect the starter electrical connectors

• Remove the small trigger wire connector (usually a push-on or small nut) using a 10mm socket if it has a nut.
• Remove the main battery cable nut on the starter using a 12mm socket.
• Move cables aside so they won’t get pinched during reassembly.
• Do not pull on wires; pull on the connector.

Step 7: Remove the starter mounting bolts

• Support the starter with one hand so it doesn’t drop.
• Use a 14mm socket with a 3/8" ratchet, extensions, and a 3/8" swivel adapter to remove the starter mounting bolts.
• Remove the starter from the bellhousing and guide it out.

Step 8: Install the new starter

• Compare the new starter to the old one (same nose shape, bolt holes, and terminals).
• Position the new starter into place and hand-thread the mounting bolts to avoid cross-threading.
• Use a 14mm socket to snug the bolts.
• Torque to 45 Nm (33 ft-lbs) using a torque wrench.

Step 9: Reconnect the starter wiring

• Install the main battery cable onto the large terminal and tighten with a 12mm socket.
• Torque to 12 Nm (9 ft-lbs) using a torque wrench.
• Reconnect the small trigger wire connection and tighten with a 10mm socket if applicable.
• Torque to 4 Nm (35 in-lbs) using a torque wrench.
• Overtightening can crack the terminal stud.

Step 10: Reinstall the splash shield and lower the car

• Reinstall the splash shield using a 10mm socket and trim clip remover.
• Raise the car slightly with the floor jack, remove the jack stands, then lower the car.

Step 11: Reinstall the intake duct and reconnect the battery

• Reinstall the intake duct and tighten clamps using a flathead screwdriver.
• Reconnect the negative battery terminal using a 10mm socket.
• Install battery terminal anti-corrosion pads if you’re using them.

---

✅ After Repair

• Start the engine and verify it cranks strongly and starts normally.
• Check that no wires are touching hot or moving parts.
• Listen for abnormal grinding; if heard, shut off and recheck starter seating/bolts.
• Do a quick recheck for loose clamps/hoses on the intake duct.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $140-$350 (parts only)

You Save: $300-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
