🔧 Accord - Starter Motor Replacement

The starter motor spins the engine so it can start. If it’s failing, you may hear a single click, slow cranking, or nothing at all even with a good battery. On your Accord, the starter sits at the front side of the engine where it meets the transmission.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable first to prevent shorts (the starter power cable is always “hot”).
• ⚠️ Let the engine cool before working near the exhaust and radiator area.
• ⚠️ Support the car with jack stands on the proper lift points; never rely on a floor jack alone.
• ⚠️ Keep tools off the battery positive terminal to avoid sparks.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" torque wrench
• 6" extension (3/8")
• 12" extension (3/8")
• Universal joint adapter (3/8")
• Flat-blade screwdriver
• Pliers
• Trim clip removal tool
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Fender cover
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Battery terminal anti-corrosion spray - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place the transmission in neutral.
• Chock the rear wheels using wheel chocks.
• Open the hood and install a fender cover to protect paint.
• Assumption: Torque specs listed are common for this Accord’s 2.4L starter hardware; verify with a factory service source if you have one.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative (-) battery terminal clamp.
• Lift the negative cable off and tuck it aside so it cannot spring back to the post.

Step 2: Raise and support the front (optional but helpful)

• Use a floor jack (rated 3-ton minimum) to lift the front of the car at the front center jack point.
• Place jack stands (rated 3-ton minimum) under the left and right front pinch weld points.
• Shake the car gently to confirm stability.

Step 3: Remove the intake duct/air box for access

• Use a flat-blade screwdriver to loosen the hose clamp(s) on the intake tube.
• Use pliers to release any spring clamps on small breather hoses, then pull hoses off carefully.
• Use a 10mm socket to remove air box bolts, then lift the air box/ducting out as needed.
• Take a quick photo before unplugging anything.

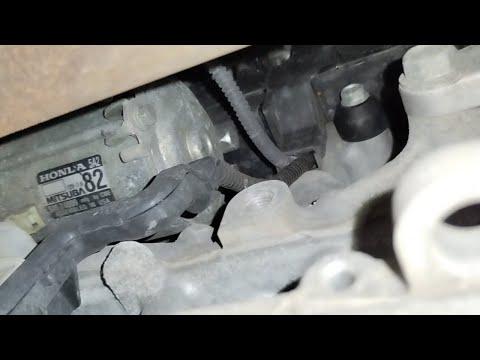

Step 4: Locate the starter and unplug the small connector

• Find the starter at the front of the engine where it meets the transmission.
• Unplug the starter solenoid connector by pressing the tab and pulling it straight off (do not yank the wires).

Step 5: Remove the starter power cable (B+)

• Pull back the rubber boot on the starter’s large terminal.
• Use a 12mm socket to remove the nut holding the power cable to the starter terminal.
• Move the cable aside so it cannot touch metal.
• Torque to 9 N·m (80 in-lbs) when reinstalling.

Step 6: Remove the starter mounting bolts

• Use a 14mm socket with a 6" extension (3/8") to remove the starter mounting bolts (typically 2 bolts).
• If access is tight, use a universal joint adapter (3/8") (this is a swivel that lets the socket bend slightly).
• Support the starter with one hand as the last bolt comes out.
• Torque to 44 N·m (33 ft-lbs) when reinstalling the mounting bolts.

Step 7: Remove the starter from the engine bay

• Wiggle and pull the starter straight out from the transmission housing.
• Rotate it as needed to clear nearby hoses/wiring. Use a flashlight to avoid snagging anything.

Step 8: Install the new starter

• Compare the new starter to the old one (connector position, mounting ears, and terminal stud should match).
• Slide the new starter into place, aligning it with the mounting holes.
• Hand-thread both mounting bolts first to avoid cross-threading, then tighten with a 14mm socket.
• Torque to 44 N·m (33 ft-lbs).

Step 9: Reconnect wiring

• Install the power cable onto the large starter terminal and tighten with a 12mm socket.
• Torque to 9 N·m (80 in-lbs), then reinstall the rubber boot.
• Apply a small amount of dielectric grease to the small connector seal (helps keep moisture out), then plug the connector back in until it clicks.

Step 10: Reinstall intake components

• Reinstall the air box/ducting using a 10mm socket.
• Reconnect any breather hoses using pliers for spring clamps.
• Tighten intake hose clamps with a flat-blade screwdriver.

Step 11: Reconnect the battery

• Reinstall the negative (-) cable and tighten with a 10mm socket.
• Spray battery terminal anti-corrosion spray on the terminals after tightening.

---

✅ After Repair

• Start the engine and confirm it cranks strongly and starts normally.
• Listen for abnormal grinding or whining during cranking; if heard, shut off and recheck starter seating and bolts.
• Check that the intake tube is fully seated and clamps are tight (loose intake parts can cause rough idle or a check engine light).
• If you raised the car, remove jack stands and lower it using the floor jack, then remove wheel chocks.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $140-$350 (parts only)

You Save: $300-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
