🔧 Explorer - Starter Motor Replacement

The starter motor is what cranks your engine when you turn the key/push the start button. If it’s failing, you may get a single click, slow cranking, or no crank at all. On your Explorer, the starter is mounted to the transmission bellhousing and is usually accessed from underneath.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: Factory starter location/access for the 3.5L NA AWD; access is from below after removing the splash shield.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable first to prevent electrical shorts.
• ⚠️ Support the SUV with jack stands on solid, level ground; never rely on a floor jack alone.
• ⚠️ Let the exhaust/catalyst area cool before working underneath.
• ⚠️ Keep the key fob away from the vehicle so it can’t accidentally try to start.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" ratchet
• 3/8" torque wrench (10–80 Nm range)
• 6" extension (3/8" drive)
• 12" extension (3/8" drive)
• Trim clip remover
• Flathead screwdriver
• Needle-nose pliers
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter electrical terminal nut kit - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear tires.
• Open the hood and make sure all accessories are off.
• Disconnect the battery: use a 10mm socket to remove the negative (-) cable and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the front of your Explorer

• Use a floor jack (rated 3-ton minimum) to lift the front jacking point.
• Set the vehicle onto jack stands (rated 3-ton minimum) at the proper support points.
• Give the vehicle a gentle shake to confirm it’s stable before crawling underneath.

Step 2: Remove the lower engine splash shield

• Use an 8mm socket and 10mm socket to remove shield bolts/screws.
• Use a trim clip remover (a forked pry tool for plastic fasteners) for any push-clips.
• Set all fasteners aside in a tray so nothing gets lost.

Step 3: Locate the starter motor

• Use a work light and look where the engine meets the transmission (bellhousing area).
• The starter is a small cylindrical motor with a smaller solenoid attached and a thick battery cable going to it.

Step 4: Disconnect the starter wiring

• Use a 10mm socket to remove the nut for the thick battery cable at the starter terminal.
• If there’s a small signal wire connector, remove it carefully using needle-nose pliers or your fingers (don’t yank the wire).
• Apply a tiny amount of dielectric grease to the connector seals during reassembly to help prevent corrosion.
• Torque on reassembly: Battery cable terminal nut to 10 Nm (89 in-lbs)

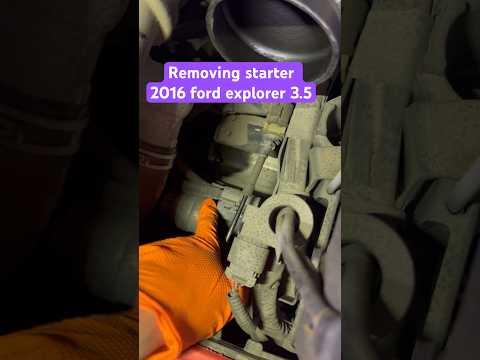

Step 5: Remove the starter mounting bolts

• Support the starter with one hand while you remove bolts with a 13mm socket, 3/8" ratchet, and a 6" extension (3/8" drive).
• If access is tight, swap to a 12" extension (3/8" drive) to reach the upper bolt.
• Lower the starter down and out carefully.
• Tip: Keep one bolt threaded a few turns.
• Torque on reassembly: Starter mounting bolts to 35 Nm (26 ft-lbs)

Step 6: Install the new starter motor

• Compare the old and new starter side-by-side (same mounting ears, same electrical terminals).
• Position the new starter into place and hand-thread the mounting bolts to avoid cross-threading.
• Use a 3/8" torque wrench (10–80 Nm range) (a wrench that tightens to a precise setting) with a 13mm socket to tighten bolts: Torque to 35 Nm (26 ft-lbs).

Step 7: Reconnect the starter wiring

• Reconnect the small signal wire connector fully until it seats.
• Install the thick battery cable and nut using a 10mm socket: Torque to 10 Nm (89 in-lbs).
• Double-check the cable routing so it can’t rub on the axle, exhaust, or any sharp edges.

Step 8: Reinstall the splash shield

• Lift the shield into position.
• Reinstall bolts with an 8mm socket / 10mm socket and push-clips with the trim clip remover.

Step 9: Reconnect the battery and lower the vehicle

• Reconnect the negative (-) battery cable using a 10mm socket.
• Remove the jack stands and lower the vehicle with the floor jack.
• Remove the wheel chocks.

---

✅ After Repair

• Start the engine and confirm it cranks strongly and starts normally.
• Listen for abnormal grinding/whining; if heard, shut it off and recheck starter seating and bolt tightness.
• Check that no warning lights appear and that the battery cable is tight and not heating up.
• Take a short test drive and recheck under the vehicle for any loose shield fasteners.

---

💰 DIY vs Shop Cost

Shop Cost: $600-$1,050 (parts + labor)

DIY Cost: $160-$420 (parts only)

You Save: $440-$630 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
