🔧 Suburban - Starter Motor Replacement

The starter motor cranks your engine when you turn the key. If it’s weak, clicks, or won’t crank, replacing the starter restores reliable starting.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

Assumption: factory 5.3L starter with no aftermarket wiring.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before touching the starter wiring (the main cable is always “hot”).
• ⚠️ Support your Suburban on jack stands; never rely on a floor jack alone.
• ⚠️ Let the exhaust cool first; the starter sits near hot components.
• ⚠️ Keep tools off the starter terminals to avoid short circuits.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Work light
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• 3/8" drive swivel adapter
• Torque wrench (10-100 ft-lbs)
• Flat-blade screwdriver
• Battery terminal brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Starter mounting bolt set - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and locate the battery at the front of the engine bay.
• Plan your lift points before raising the truck; use the frame for jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative battery cable clamp.
• Remove the negative cable from the battery and tuck it aside so it cannot spring back.
• Negative off first prevents accidental shorts.

Step 2: Raise and support your Suburban

• Use a floor jack (rated 3-ton minimum) to lift the front of your Suburban.
• Place jack stands (rated 3-ton minimum) under the frame and lower the vehicle onto them.
• Give the truck a firm shake to confirm it’s stable before crawling underneath.

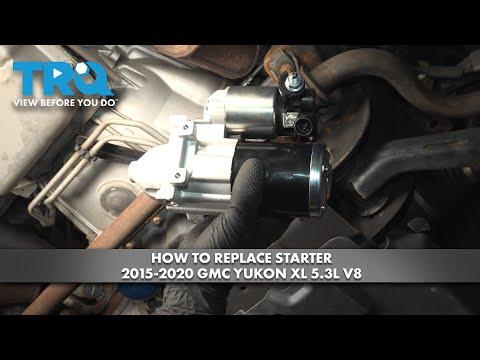

Step 3: Locate the starter

• Use a work light and look on the passenger side, low on the engine near the transmission bellhousing.
• The starter is the small motor with a smaller “solenoid” attached (the solenoid is the cylinder that engages the starter gear).

Step 4: Remove any splash shield (if equipped)

• If a shield blocks access, use a 10mm socket and/or flat-blade screwdriver to remove the fasteners.
• Set the shield and hardware aside in a small pile so nothing gets lost.

Step 5: Disconnect the starter electrical connections

• Identify the thick battery cable and the smaller trigger wire on the starter solenoid.
• Use a 13mm socket to remove the nut for the main battery cable, then lift the cable off the stud.
• Disconnect the small trigger wire (may be a push-on or small nut style); use a 10mm socket if it uses a nut.
• Apply a small amount of dielectric grease to the connector seals during reassembly (it helps prevent corrosion).

Step 6: Remove the starter mounting bolts

• Support the starter with one hand (it’s heavier than it looks).
• Use a 15mm socket with a 3/8" drive ratchet and 3/8" drive extension set to remove the two mounting bolts.
• If access is tight, add a 3/8" drive swivel adapter.
• Lower the starter out carefully without pulling on any wires.

Step 7: Compare the new starter to the old one

• Match the mounting ears, electrical studs, and overall length.
• If your old starter has a heat shield, move it over using a 10mm socket (if applicable).

Step 8: Install the new starter

• Position the new starter into place and start both mounting bolts by hand to avoid cross-threading.
• Tighten the starter mounting bolts with a 15mm socket, then final-tighten with a torque wrench (10-100 ft-lbs): Torque to 50 Nm (37 ft-lbs).
• Hand-start bolts first to prevent expensive damage.

Step 9: Reconnect the starter wiring

• Install the main battery cable onto the large solenoid stud and tighten with a 13mm socket: Torque to 15 Nm (11 ft-lbs).
• Reconnect the small trigger wire and tighten with a 10mm socket (snug only; do not over-tighten small fasteners).
• Make sure the cables are routed away from exhaust and moving parts.

Step 10: Reinstall the splash shield (if removed)

• Reinstall the shield using the 10mm socket and/or flat-blade screwdriver for the same fasteners you removed.

Step 11: Lower the vehicle and reconnect the battery

• Use the floor jack (rated 3-ton minimum) to lift slightly, remove the jack stands (rated 3-ton minimum), then lower the vehicle.
• Clean the battery terminal with a battery terminal brush if it’s dirty.
• Reconnect the negative battery cable and tighten with a 10mm socket.

---

✅ After Repair

• Start the engine and confirm it cranks strongly with no clicking.
• With the engine running, check under the vehicle to confirm no wires are near the exhaust.
• If you get a no-crank, recheck the small trigger wire connection and the battery cable tightness.

---

💰 DIY vs Shop Cost

Shop Cost: $500-$900 (parts + labor)

DIY Cost: $150-$350 (parts only)

You Save: $350-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
