🔧 Malibu - Starter Motor Replacement

The starter motor cranks your engine when you turn the key/start button. If it’s failed (click-no-crank, slow crank, intermittent crank), replacing the starter restores reliable starting.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before touching starter wiring (high current).
• ⚠️ Support the car on jack stands; never rely on a jack alone.
• ⚠️ Let the engine/exhaust cool; you’ll work near hot components.
• ⚠️ Keep the key/fob away from the car so it can’t crank unexpectedly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" ratchet
• 3/8" torque wrench
• 6" extension (3/8")
• 12" extension (3/8")
• Universal joint (3/8")
• Flathead screwdriver
• Trim clip removal tool
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter electrical terminal nut(s) - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and plan to disconnect the battery before going underneath.
• Take photos of wiring before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket and 3/8" ratchet to loosen the negative battery terminal clamp.
• Remove the negative cable and tuck it aside so it can’t spring back onto the post.
• This prevents accidental short circuits.

Step 2: Raise and support the front of the car

• Use a floor jack (rated 3-ton minimum) to lift the front at the correct jack point.
• Set the vehicle down onto jack stands (rated 3-ton minimum).
• Give the car a firm shake to confirm it’s stable before you crawl under.

Step 3: Remove the lower splash shield (if equipped)

• Use a trim clip removal tool for plastic push-pins.
• Use an 8mm socket and 3/8" ratchet for small bolts/screws.
• Set all clips/bolts aside in a tray so nothing gets lost.

Step 4: Locate the starter

• Use a work light and look where the engine meets the transmission (the “bellhousing” area—this is the large junction where the transmission bolts to the engine).
• The starter is a small motor with a thicker battery cable attached and a smaller control wire connector.

Step 5: Disconnect the starter wiring

• If there’s a protective cap on the main power terminal, pry it back gently using a flathead screwdriver.
• Use a 13mm socket, 3/8" ratchet, and a 6" extension (3/8") to remove the nut holding the main battery cable to the starter terminal.
• Disconnect the small control connector by pressing the lock tab and pulling straight off (use a flathead screwdriver gently if stuck).
• Apply a thin film of dielectric grease to the small connector seal during reassembly.

Step 6: Remove the starter mounting bolts

• Support the starter with one hand (it’s heavier than it looks).
• Use a 15mm socket, 3/8" ratchet, 12" extension (3/8"), and universal joint (3/8") as needed to remove the starter mounting bolts.
• Remove the starter and guide it out carefully without yanking on nearby wiring.

Step 7: Install the new starter

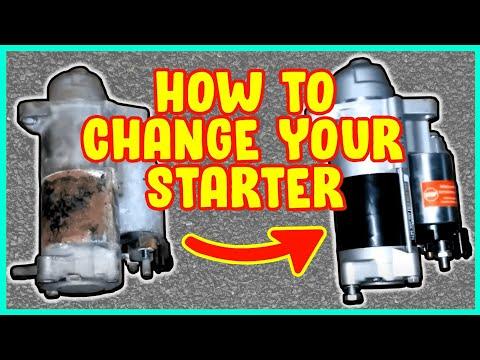

• Compare the old and new starter side-by-side (same mounting ears, same electrical terminals).
• Position the new starter in place and start the mounting bolts by hand to avoid cross-threading.
• Tighten the mounting bolts using a 3/8" torque wrench and 15mm socket to Torque to OEM specification.

Step 8: Reconnect the starter wiring

• Install the main battery cable onto the starter terminal and install a new nut if provided.
• Tighten using a 13mm socket and 3/8" torque wrench to Torque to OEM specification.
• Reconnect the small control connector until it clicks.
• Reinstall the protective terminal cap (important to prevent shorts).

Step 9: Reinstall the splash shield

• Reinstall bolts/screws with an 8mm socket and 3/8" ratchet.
• Reinstall push clips with a trim clip removal tool (use it to press them in straight).

Step 10: Lower the car and reconnect the battery

• Raise the vehicle slightly with the floor jack (rated 3-ton minimum), remove the jack stands (rated 3-ton minimum), then lower fully.
• Reconnect the negative battery cable using a 10mm socket and 3/8" ratchet and tighten securely.

---

✅ After Repair

• Start the engine and confirm it cranks strongly and starts normally.
• Listen for abnormal noises near the starter area (grinding/whirring).
• Verify no warning lights related to low voltage remain after a short drive.
• Recheck under the hood that the battery terminal is tight.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $330-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
