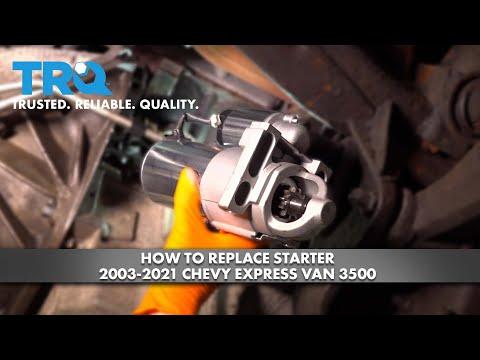

🔧 Express - Starter Motor Replacement

The starter motor cranks your A4? (No) — on your Express, it’s the electric motor that spins the engine to start it. Replacing it is mostly an under-vehicle job: disconnect the battery, remove the electrical connections, unbolt the starter, then install the new one and torque everything correctly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: Standard 4.8L layout with starter at passenger-side bellhousing.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a dangerous short at the starter.
• ⚠️ Support the van with jack stands; never rely on a floor jack alone.
• ⚠️ Let the exhaust cool before working near the starter area.
• ⚠️ Keep the key out of the ignition so nobody can crank the engine.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Ratchet (3/8" drive)
• Ratchet (1/2" drive)
• Socket set (metric)
• 13mm socket
• 15mm socket
• Long extension (3/8" drive, 6"-12")
• Torque wrench (3/8" drive, inch-pound)
• Torque wrench (1/2" drive, foot-pound)
• Flat trim tool
• Shop light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter mounting bolts - Qty: 2 (recommended if corroded)
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and disconnect the battery: use a 13mm socket to remove the negative cable first, then position it so it can’t spring back.
• Raise the front of the van with a floor jack and support it securely on jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the starter

• Slide under the passenger side with a shop light.
• The starter is mounted to the transmission bellhousing area and has a small solenoid (the small cylinder on it).
• A ratchet is the handle that turns sockets.

Step 2: Remove any splash shield (if equipped)

• Use a flat trim tool to pop out any push-clips.
• Use your socket set (metric) and ratchet (3/8" drive) to remove any bolts holding the shield.
• Set hardware aside in a small pile so nothing gets lost.

Step 3: Disconnect the starter electrical connections

• On the starter solenoid, remove the protective rubber boot from the large battery cable stud.
• Use a 13mm socket with a ratchet (3/8" drive) to remove the nut for the large battery cable, then lift the cable off and move it aside.
• Disconnect the small start-signal wire (usually a small nut or push-on terminal).
• If it uses a small nut, use your socket set (metric) carefully so you don’t twist the stud.
• Take a quick photo for wire routing.

Step 4: Support and remove the starter mounting bolts

• Hold the starter body with one hand (it’s heavier than it looks).
• Use a 15mm socket with a ratchet (1/2" drive) and a long extension (3/8" drive, 6"-12") (if needed for reach) to remove the two starter mounting bolts.
• Lower the starter out carefully and remove it from under the van.

Step 5: Compare the old and new starter

• Set both starters side-by-side and confirm the mounting holes, nose length, and electrical stud locations match.
• Transfer any heat shield or bracket from the old starter to the new one (if equipped) using your socket set (metric).

Step 6: Install the new starter

• Position the new starter into place by hand.
• Start both mounting bolts by hand a few turns to avoid cross-threading (damaging threads).
• Use a 15mm socket and ratchet (1/2" drive) to snug the bolts.
• Finish tightening with a torque wrench (1/2" drive, foot-pound): Torque to 50 Nm (37 ft-lbs).

Step 7: Reconnect the starter wiring

• Apply a thin film of dielectric grease to the outside of the rubber boot (not on the threads) to help resist moisture.
• Install the large battery cable onto the solenoid stud and tighten using a torque wrench (3/8" drive, inch-pound): Torque to 13 Nm (115 in-lbs).
• Reconnect the small start-signal wire securely using your socket set (metric) (do not over-tighten small terminals).
• Reinstall the rubber boot over the main cable stud.

Step 8: Reinstall splash shield (if removed)

• Reinstall the shield using your socket set (metric) and ratchet (3/8" drive).
• Press any clips back in using a flat trim tool.

Step 9: Lower the van and reconnect the battery

• Raise slightly with the floor jack (rated 3-ton minimum), remove the jack stands (rated 3-ton minimum), and lower the van.
• Reconnect the negative battery cable using a 13mm socket.

---

✅ After Repair

• Start the engine and listen: the starter should crank smoothly with no grinding.
• Check that no wires are touching the exhaust or moving parts.
• Verify the battery cable boot is fully seated to prevent corrosion.
• If it only clicks or cranks slowly, recheck battery condition and your cable tightness at the starter and battery.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $150-$450 (parts only)

You Save: $300-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
