🔧 Colorado - Starter Motor Replacement

The starter motor is the electric motor that cranks your engine when you turn the key. Replacement involves disconnecting the battery, accessing the starter at the transmission/bellhousing area, swapping the unit, and reconnecting the wiring securely.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: Stock factory starter and wiring layout.

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable first to prevent short circuits (starter power cable is always “hot”).
• Support your Colorado with jack stands on a solid, level surface—never rely on a floor jack alone.
• Let the exhaust/engine cool before working near the bellhousing area.
• Keep tools away from the positive starter terminal until the battery is disconnected.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Ratchet (3/8" drive)
• Ratchet (1/2" drive)
• Socket set (metric)
• 10mm socket
• 13mm socket
• 15mm socket
• Extension set (3/8")
• Universal joint swivel adapter (3/8")
• Torque wrench (10-150 ft-lbs range)
• Trim clip remover
• Flat blade screwdriver
• Needle-nose pliers
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter mounting bolts - Qty: 2
• Battery terminal cleaner kit - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to neutral, set the parking brake, and chock the rear wheels.
• Open the hood and make sure you have your radio/security codes if applicable.
• Disconnect the battery: use a 10mm socket to remove the negative cable first, then isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the truck

• Use a floor jack (rated 3-ton minimum) to lift the front of the truck at the proper jacking point.
• Place jack stands (rated 3-ton minimum) under the frame and lower the truck onto them.
• Give the truck a gentle shake to confirm it’s stable.

Step 2: Remove any lower shield/skid plate (if equipped)

• Use a socket set (metric) and trim clip remover to remove bolts/clips holding the front splash shield or skid plate.
• Set hardware aside in a small tray so you don’t lose it.

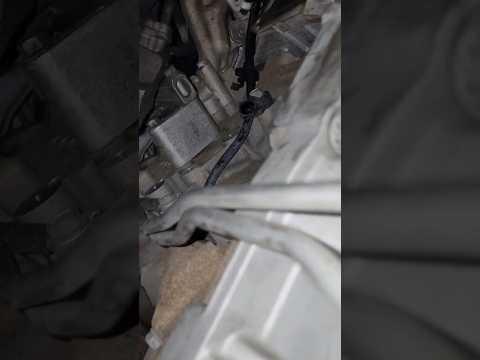

Step 3: Locate the starter

• The starter sits at the engine-to-transmission connection (bellhousing area), typically on the passenger side.
• Position your work light so you can see the wiring and two starter mounting bolts.

Step 4: Disconnect the starter wiring

• On the starter, you’ll see a large battery cable on the main terminal and a smaller control wire for the solenoid (the solenoid is the small electric switch on the starter that engages it).
• Remove any protective rubber boot using a flat blade screwdriver gently.
• Use a 13mm socket to remove the nut from the large battery cable terminal, then move the cable aside.
• Disconnect the small control connector using needle-nose pliers if needed (pull on the connector, not the wire).
• Tip: Take a quick photo before removal.

Step 5: Remove the starter mounting bolts

• Support the starter with one hand (it’s heavier than it looks).
• Use a 15mm socket, extension set (3/8"), and a universal joint swivel adapter (3/8") to remove the starter mounting bolts.
• Universal joint swivel adapter = a pivoting joint that helps your socket reach bolts at an angle.
• Lower the starter out carefully without yanking any wires.

Step 6: Compare parts and transfer items (if needed)

• Set the old and new starter side-by-side and confirm the mounting ears and electrical terminals match.
• If your replacement starter doesn’t include a heat shield or bracket your original has, move it over using a socket set (metric).

Step 7: Install the new starter

• Lift the starter into position and hand-start both mounting bolts to avoid cross-threading.
• Tighten using a 15mm socket, then finish with a torque wrench (10-150 ft-lbs range).
• Torque: Tighten starter mounting bolts to the factory specification for your bolt size (commonly M10 or M12). If your replacement bolts are labeled, torque to the spec provided with the bolts; otherwise use OEM service information.

Step 8: Reconnect the starter wiring

• Reconnect the small solenoid control connector by pushing it on until it clicks.
• Install the large battery cable onto the main terminal and tighten the nut with a 13mm socket.
• Torque: Tighten the main terminal nut to the factory specification (do not overtighten—starter terminals can crack).
• Apply a light film of dielectric grease to help resist moisture, then reinstall the rubber boot.

Step 9: Reinstall shields and lower the truck

• Reinstall any splash shield/skid plate using a socket set (metric) and trim clip remover.
• Raise slightly with the floor jack (rated 3-ton minimum), remove jack stands (rated 3-ton minimum), and lower the truck.

Step 10: Reconnect the battery

• Clean terminals if needed using the battery terminal cleaner kit.
• Reconnect the negative battery cable using a 10mm socket and tighten snugly.

---

✅ After Repair

• Turn the key to start: the engine should crank strongly with no clicking or grinding noises.
• Check that no wires are touching the exhaust or spinning parts.
• Verify your dash has no new warning lights.
• Recheck for loose fasteners after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
