🔧 Q3 - Starter Motor Replacement

The starter motor spins your engine to begin starting. When it fails, you may get a single click, slow cranking, or no crank at all. On your Q3, the starter sits on the transmission side of the engine and is reached from the top and/or underneath.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative terminal first—starter cables are always “hot” and can short.
• ⚠️ Support the vehicle with jack stands; never work under a car on a jack.
• ⚠️ Let the engine cool; the turbo/engine area can burn you.
• ⚠️ Keep the key/fob away from the car while working.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 10mm socket
• 13mm socket
• 16mm socket
• Ratchet (3/8" drive)
• Extensions set (3", 6", 12")
• Universal joint adapter (3/8" drive)
• Torque wrench (3/8" drive)
• Torx T25 bit
• Torx T30 bit
• Triple-square M10 bit
• Flat trim tool
• Pick tool
• Needle-nose pliers
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter mounting bolts - Qty: 2-3
• Battery terminal clamp bolt/nut - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Open the hood and keep your key/fob away from the vehicle.
• Disconnect the battery: use a 10mm socket to remove the negative (–) terminal and isolate it so it can’t spring back.
• “Isolate” means keep it from touching the post.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Assumption: Starter is accessed by removing the intake/airbox from the top and the lower belly pan from underneath; exact fastener types can vary by production date.

Step 1: Raise the front and remove the lower cover

• Use a floor jack (rated 3-ton minimum) to lift the front at the approved jacking point.
• Set the vehicle on jack stands (rated 3-ton minimum).
• Remove the lower belly pan/undertray using Torx T25 bit and Torx T30 bit with a ratchet (3/8" drive).

Step 2: Remove the air intake/airbox for access

• From the top, loosen the intake clamp using a flat trim tool (to pop clips) and the appropriate fastener with a ratchet (3/8" drive) and socket set.
• Unplug the MAF connector (airflow sensor) carefully using a pick tool to lift the lock tab if needed.
• Remove the airbox bolts using a 10mm socket, then lift the airbox out.
• Pull straight up on rubber grommets.

Step 3: Locate the starter and identify the wiring

• Use a flashlight to find the starter where the engine meets the transmission.
• You’ll see a thick battery cable (B+) and a smaller solenoid trigger wire.
• The solenoid is the small “switch” on the starter.

Step 4: Remove starter electrical connections

• Remove any protective cap on the main terminal using a pick tool.
• Remove the main battery cable nut using a 13mm socket; move the cable aside.
• Remove the small trigger wire nut using a 10mm socket (some are a push-on connector—use needle-nose pliers carefully).
• Apply a tiny amount of dielectric grease to the connector seals during reassembly.
• Torque to factory specification for the starter electrical terminal nuts (do not overtighten).

Step 5: Remove the starter mounting bolts

• Support the starter with one hand.
• Remove the starter mounting bolts using a triple-square M10 bit with a ratchet (3/8" drive), extensions set, and a universal joint adapter as needed.
• Once bolts are out, work the starter free and remove it upward or downward depending on clearance.
• “Universal joint” helps at an angle.
• Torque to factory specification for the starter mounting bolts during installation.

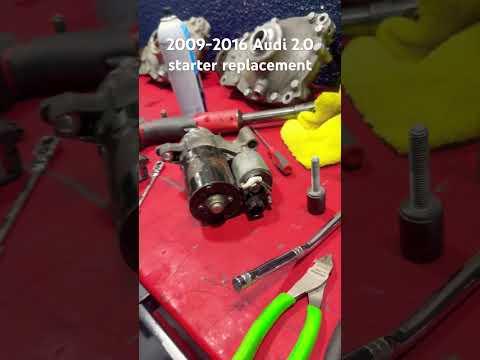

Step 6: Install the new starter

• Compare the new starter to the old one (mounting ears, electrical studs, and nose length).
• Set the new starter in place and hand-thread all mounting bolts first to avoid cross-threading.
• Tighten mounting bolts with a triple-square M10 bit and torque wrench (3/8" drive): Torque to factory specification.

Step 7: Reconnect starter wiring

• Install the small trigger wire first using a 10mm socket (or push connector firmly until it clicks).
• Install the main battery cable using a 13mm socket.
• Reinstall terminal covers and make sure cables can’t rub on anything.
• Torque to factory specification for the electrical terminal nuts.

Step 8: Reinstall the airbox and undertray

• Reinstall the airbox using a 10mm socket and reconnect the intake and MAF connector.
• Reinstall the belly pan using Torx T25 bit and Torx T30 bit.

Step 9: Reconnect the battery and lower the vehicle

• Reconnect the battery negative terminal using a 10mm socket: Torque to factory specification.
• Remove jack stands (rated 3-ton minimum) and lower with the floor jack (rated 3-ton minimum).

---

✅ After Repair

• Start the engine and confirm it cranks strongly with no clicking.
• Check for warning lights and listen for abnormal grinding noises.
• Recheck the starter wiring area for any loose cables or rubbing.
• If the battery was disconnected, reset the clock and one-touch window function if needed.

---
