🔧 MX-5 Miata - Starter Motor Replacement

The starter motor cranks the engine when you turn the key/push the start button. If it’s failing (clicking, slow cranking, or no crank with a good battery), replacing the starter is a direct bolt-on job, but access is tight.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable before touching the starter wiring (the main cable is always “hot”).
• ⚠️ Support the car on jack stands before going underneath; never rely on a floor jack alone.
• ⚠️ Let the exhaust cool completely if the car was recently driven.
• ⚠️ Keep the key fob away from the car while working to prevent accidental cranking.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-100 Nm range)
• Socket set: 8mm, 10mm, 12mm, 14mm
• Wrench set: 10mm, 12mm, 14mm
• 3/8" drive extensions (3", 6", 12")
• Universal joint adapter (3/8")
• Trim clip removal tool
• Flathead screwdriver
• Work light
• Small wire brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Starter solenoid signal terminal nut (if damaged) - Qty: 1
• Main starter battery cable nut (if damaged) - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Open the hood and keep the key fob at least 15 feet away.
• Disconnect the battery: use a 10mm wrench to remove the negative terminal first, then isolate it so it can’t spring back.
• Tip: Take a quick photo of the starter wiring first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the front of the car

• Use a floor jack to lift the front of the car at the front center jacking point.
• Place jack stands at the factory support points and lower the car onto them.
• Give the car a firm shake to confirm it’s stable before going underneath.

Step 2: Remove the front lower undertray (splash shield)

• Use a trim clip removal tool to pop out the plastic clips.
• Use a 10mm socket and 3/8" ratchet to remove any 10mm bolts holding the undertray.
• Set the undertray and clips/bolts aside in a small pile.

Step 3: Locate the starter motor

• From underneath, use a work light and look at the engine-to-transmission joint (bellhousing area).
• The starter is the small motor bolted to the bellhousing with a thicker cable (battery power) and a smaller plug/terminal (signal wire).

Step 4: Disconnect the starter electrical connections

• If there’s a protective rubber boot on the big terminal, pull it back by hand.
• Use a 12mm socket with a 3/8" ratchet to remove the nut on the main battery cable, then lift the cable off the stud.
• Disconnect the starter signal wire: depending on your connector style, either press the tab and pull the connector off by hand, or remove its small nut with a 10mm socket.
• Use a small wire brush to clean any corrosion on the cable terminals.
• Tip: Keep nuts on the cable threads until reassembly.

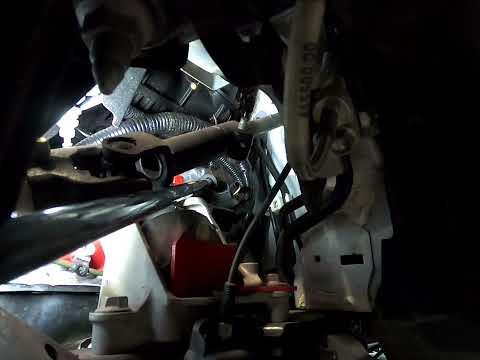

Step 5: Remove the starter mounting bolts

• Support the starter body with one hand.
• Use a 14mm socket, 3/8" ratchet, and a 6"-12" extension (and a universal joint adapter if needed) to remove the two starter mounting bolts.
• Carefully lower and remove the starter from the bellhousing.

Step 6: Install the new starter

• Position the new starter in place and start both mounting bolts by hand (this prevents cross-threading).
• Tighten the starter mounting bolts using a 14mm socket and ratchet.
• Final tighten with a torque wrench: Torque to 44 Nm (32 ft-lbs).

Step 7: Reconnect the starter wiring

• Install the main battery cable onto the starter stud and tighten the nut with a 12mm socket.
• Final tighten with a torque wrench: Torque to 10 Nm (89 in-lbs).
• Reconnect the starter signal wire (push connector on until it clicks, or reinstall its nut if applicable using a 10mm socket).
• Apply a thin film of dielectric grease to the outside of the connection area, then reinstall the rubber boot.

Step 8: Reinstall the undertray and lower the car

• Reinstall the undertray using the 10mm socket and the plastic clips (press them in with your fingers, seat fully).
• Use the floor jack to lift slightly, remove jack stands, then lower the car fully.

Step 9: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm wrench.
• Snug it firmly (do not over-tighten; the clamp can crack).

---

✅ After Repair

• Start the engine and confirm it cranks strongly with no clicking.
• Check that no warning lights appear after the start.
• With the engine running, verify the battery light stays off.
• Recheck the starter main cable nut for tightness after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$950 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $370-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
