🔧 Crosstrek - Starter Motor Replacement

The starter motor cranks the engine when you turn the key. If it’s failed (clicking, no-crank, or intermittent cranking), replacement is the proper fix.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before touching starter wiring (prevents short circuits).
• ⚠️ Work on a cool engine; the starter sits near hot components.
• ⚠️ Keep tools away from the battery positive terminal and body metal at the same time.
• ⚠️ If you raise the vehicle, support it on jack stands (never the jack alone).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 6" extension (3/8" drive)
• Universal joint adapter (3/8" drive)
• 10mm wrench
• Flat trim tool
• Torque wrench (3/8" drive)
• Battery terminal brush
• Flashlight
• Fender cover
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Battery terminal anti-corrosion washers - Qty: 1 set
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and put the shifter in neutral.
• Open the hood and let the engine cool.
• Have your radio presets noted (battery disconnect may reset them).
• Know your tools: a torque wrench is a tool that tightens bolts to an exact setting so you don’t strip threads or leave bolts loose.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative (-) battery terminal clamp.
• Remove the negative cable and tuck it aside so it cannot spring back.
• Negative off first, on last.

Step 2: Remove the air intake duct/airbox snorkel (for access)

• Use a flat trim tool to pop out any plastic clips holding the snorkel/duct.
• Use a 10mm socket to remove any intake duct/airbox fasteners (varies slightly by equipment).
• Lift the duct/snorkel out to open up space near the transmission bellhousing.

Step 3: Remove the battery (recommended for room)

• Use a 10mm socket to loosen the positive (+) terminal clamp and remove it.
• Use a 10mm socket to remove the battery hold-down hardware.
• Lift the battery straight up and out (it’s heavy—lift with legs).
• Clean the terminals with a battery terminal brush if corroded.

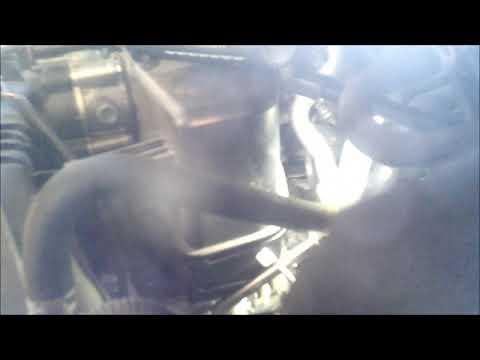

Step 4: Locate the starter and disconnect the wiring

• Find the starter at the top side of the transmission bellhousing.
• Remove the small starter signal connector by pulling it straight off (wiggle gently by hand).
• Use a 10mm socket to remove the nut on the large starter power cable (B+).
• Move the cable aside so it can’t touch metal.

Step 5: Remove the starter mounting bolts

• Use a 14mm socket, 3/8" ratchet, and 6" extension to remove the starter mounting bolts (typically 2 bolts).
• If access is tight, add the universal joint adapter to the extension.
• Support the starter with one hand as you remove the last bolt.

Step 6: Remove the starter motor

• Lift the starter out from the engine bay.
• Compare the old and new starter (mounting ears, connector style, and clocking/orientation).

Step 7: Install the new starter motor

• Set the new starter in place and start both mounting bolts by hand to avoid cross-threading.
• Use a 14mm socket to snug the bolts.
• Use a torque wrench (3/8" drive) and 14mm socket: Torque to 37 Nm (27 ft-lbs).

Step 8: Reconnect starter wiring

• Install the large power cable onto the starter stud and hand-thread the nut.
• Use a 10mm socket to tighten the nut: Torque to 9 Nm (80 in-lbs).
• Reconnect the small starter signal connector until it clicks/feels fully seated.
• Apply a thin wipe of dielectric grease to help prevent corrosion.

Step 9: Reinstall the battery and intake duct

• Set the battery back in place and reinstall the hold-down using a 10mm socket.
• Reconnect the positive (+) terminal first using a 10mm socket, then reconnect the negative (-) terminal last.
• Reinstall the air intake duct/snorkel using the 10mm socket and flat trim tool for clips.

---

✅ After Repair

• Start the engine and confirm it cranks strongly with no clicking or grinding noises.
• With the engine running, check the dash for warning lights related to battery disconnect; many clear after a short drive.
• Recheck that the battery terminals are tight (no twisting by hand).
• Do a quick visual check that no wires are touching hot or moving parts.

---

💰 DIY vs Shop Cost

Shop Cost: ₹9,000-₹18,000 (parts + labor)

DIY Cost: ₹5,500-₹13,000 (parts only)

You Save: ₹3,500-₹8,000 by doing it yourself!

Shop labor rates vary but typically run ₹800-₹1,800/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
