🔧 Camaro - Starter Motor Replacement

On your Camaro, the starter motor sits at the engine-to-transmission area and cranks the engine when you turn the key. Replacement is mostly an “under the car” job: disconnect the battery, remove the electrical connections, unbolt the starter, and install the new one.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before touching starter wiring (the large cable is always “hot”).
• ⚠️ Support the car on jack stands on a level surface; never rely on a floor jack alone.
• ⚠️ Let the exhaust cool fully; the starter area can be near hot pipes and the catalytic converter.
• ⚠️ Use wheel chocks and set the parking brake so the car cannot roll.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" ratchet
• 6" extension
• 12" extension
• Universal swivel joint
• Flat trim tool
• Torque wrench (10–100 Nm range)
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter electrical terminal nut kit - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Open the trunk and access the battery area. You’ll disconnect it in Step 1.
• Plan to raise the front of your Camaro high enough to work safely underneath.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal and remove it from the battery post.
• Tuck the cable aside so it cannot spring back and touch the terminal.
• Tip: Negative off first, on last.

Step 2: Raise and support the front of the car

• Use a floor jack (rated 3-ton minimum) to lift the front of the car at the proper front jacking point.
• Set the car down onto jack stands (rated 3-ton minimum) placed at the proper support points.
• Shake the car gently to confirm it is stable before going underneath.

Step 3: Remove the lower splash shield (if equipped)

• Use the flat trim tool to pop out any plastic push-clips.
• Use a 10mm socket to remove any small bolts holding the shield.
• Set all clips/bolts aside in a small pile so nothing gets lost.

Step 4: Locate the starter and identify the connections

• Use the work light to find the starter where the engine meets the transmission (bellhousing area).
• You’ll typically see:
  • A large battery cable attached to a stud on the starter solenoid.
  • A smaller control wire/connector (this is the “signal” wire that tells the starter to crank).
• Tip: Take a clear photo before removal.

Step 5: Disconnect the starter wiring

• Remove the protective cap (if present) from the large terminal.
• Use a 13mm socket to remove the nut from the large battery cable stud, then remove the cable.
• Disconnect the small control wire:
  • If it’s a plug, release the lock and pull straight off by hand.
  • If it uses a small nut, use a 10mm socket to remove it.
• Apply a thin smear of dielectric grease to the connector seal (not on the metal contact) to help keep moisture out.
• Torque to 13 Nm (115 in-lbs) for the main battery cable nut during reassembly.

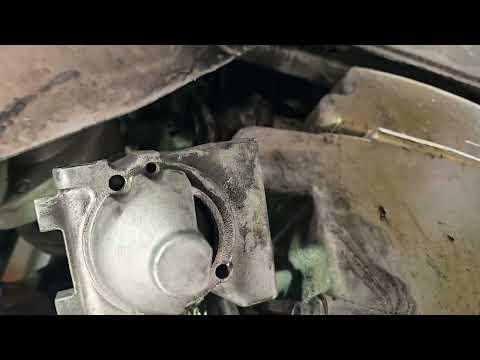

Step 6: Remove the starter mounting bolts

• Support the starter body with one hand.
• Use a 15mm socket with a 3/8" ratchet, plus a 6" extension and universal swivel joint as needed, to remove the starter mounting bolts.
• Once the bolts are out, lower the starter out carefully.

Step 7: Install the new starter

• Position the new starter in place and start both mounting bolts by hand (this prevents cross-threading).
• Use the 15mm socket and 3/8" ratchet to snug the bolts evenly.
• Use the torque wrench to tighten the starter mounting bolts: Torque to 50 Nm (37 ft-lbs).

Step 8: Reconnect the starter wiring

• Reconnect the small control wire/connector until it clicks fully into place.
• Install the large battery cable onto the starter stud and thread the nut on by hand first.
• Use the 13mm socket and then the torque wrench: Torque to 13 Nm (115 in-lbs).
• Reinstall the protective cap over the main terminal (if equipped).

Step 9: Reinstall the lower splash shield

• Position the shield and install bolts with a 10mm socket.
• Reinstall push-clips using the flat trim tool to seat them.

Step 10: Lower the car and reconnect the battery

• Use the floor jack (rated 3-ton minimum) to lift slightly, remove the jack stands, and lower the car.
• Reconnect the negative battery terminal using a 10mm socket.

---

✅ After Repair

• Turn the key to start and listen: the engine should crank strongly with no clicking.
• Check that no wires are touching the exhaust or rubbing on sharp edges.
• Look underneath for any loose tools/fasteners and confirm the splash shield is secure.
• If you get a no-crank condition, re-check battery terminal tightness and the small starter control connector seating.

---

💰 DIY vs Shop Cost

Shop Cost: $500-$900 (parts + labor)

DIY Cost: $180-$350 (parts only)

You Save: $320-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
