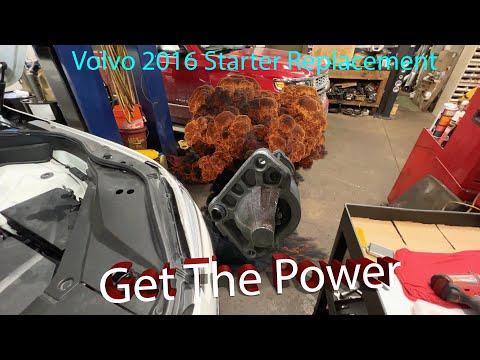

🔧 Starter Motor - Replacement

The starter motor on your XC90 is mounted at the transmission bellhousing and is removed from underneath the vehicle. This job usually requires battery disconnection, underbody access, and careful handling of the main power cable so you do not short the electrical system.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery terminal before touching the starter cable. The starter has constant battery power.
• Let the engine cool fully before working underneath the vehicle.
• Use jack stands on solid ground. Never rely on a jack alone.
• Keep metal tools away from the starter power terminal to prevent sparks.
• If the vehicle has stop/start or electrical warnings, expect fault codes after battery disconnect.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm wrench
• 13mm socket
• 15mm socket
• E-Torx socket set
• Ratchet
• Extensions
• Torque wrench
• Trim removal tool
• Floor jack (rated 3-ton minimum)
• Jack stands
• Wheel chocks
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter mounting bolts - Qty: 2
• Electrical terminal nut - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Open the hood and make sure you have radio presets and clock settings noted, since battery disconnect may reset them.
• Disconnect the negative battery terminal and secure it so it cannot spring back into contact.
• Raise the front of the vehicle and support it securely on jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect battery power

• Use a 10mm wrench to loosen and remove the negative battery cable.
• Move the cable aside so it cannot touch the battery terminal.
• Wait 5 minutes before continuing.

Step 2: Raise and secure the vehicle

• Use a floor jack (rated 3-ton minimum) to lift the front of the vehicle.
• Place jack stands under the approved lift points.
• Lower the vehicle onto the stands and shake it lightly to confirm it is stable.

Step 3: Remove underbody panels

• Use the trim removal tool to remove the undertray fasteners.
• Remove the lower engine cover and any access panels blocking the starter area.
• Set the fasteners aside in order.

Step 4: Locate the starter motor

• Find the starter on the transmission bellhousing area, low on the engine side.
• Identify the main battery cable terminal and the smaller control connector.
• Take a photo before disconnecting wires.

Step 5: Disconnect starter wiring

• Use a 13mm socket to remove the nut from the main power cable terminal.
• Remove the control connector by hand or with a small pick if needed.
• Keep the power cable clear so it cannot touch metal.

Step 6: Remove the starter motor

• Use an E-Torx socket with a ratchet and extensions to remove the starter mounting bolts.
• Support the starter with one hand while removing the last bolt.
• Lower the starter out carefully from underneath the vehicle.

Step 7: Install the new starter motor

• Position the new starter in place by hand.
• Install the mounting bolts finger-tight first using the E-Torx socket.
• Torque to 48 Nm (35 ft-lbs).

Step 8: Reconnect starter wiring

• Reinstall the main power cable using the 13mm socket.
• Torque to 10 Nm (89 in-lbs).
• Reconnect the smaller control connector until it clicks into place.

Step 9: Reinstall covers and lower the vehicle

• Reinstall the underbody panels using the trim removal tool.
• Raise the vehicle slightly with the floor jack, remove the jack stands, then lower it fully.

Step 10: Restore battery power and test

• Reconnect the negative battery terminal using the 10mm wrench.
• Start the engine and confirm strong, normal cranking.
• Check for warning messages on the dash.

---

✅ After Repair

• Verify the engine starts several times in a row.
• Listen for grinding, clicking, or slow cranking.
• Inspect the starter area for loose wiring or rubbing.
• If warning lights remain, a scan tool may be needed to clear battery-related codes.

---

💰 DIY vs Shop Cost

Shop Cost: $750-$1,400 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $300-$950 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
