🔧 Starter Motor - Replacement

The starter motor cranks your Fusion’s engine when you turn the key/start button. Replacement involves safely lifting the front of the car, disconnecting the battery, unplugging the starter wiring, and swapping the starter on the transmission bellhousing.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative terminal before touching the starter wiring (the main cable is always “hot” otherwise).
• ⚠️ Support the car with jack stands on solid ground; never rely on a floor jack alone.
• ⚠️ Work on a cool engine; the exhaust and catalytic converter area can burn you.
• ⚠️ Keep the key away from the vehicle so no one can accidentally crank it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• 10mm socket
• 13mm socket
• 15mm socket
• 1/4" drive ratchet
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–100 Nm range)
• 6" socket extension
• 12" socket extension
• Universal joint adapter (wobble) (specialty)
• Flathead screwdriver
• Trim clip removal tool
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter electrical terminal nut kit - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and plan to disconnect the battery: negative terminal first.
• Tip: Take a photo of wiring before removal.
• Assumption: Access is from underneath with the lower splash shield installed (common on Fusion). Fastener sizes/torques can vary by build; verify if anything differs on your car.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket and 1/4" drive ratchet to loosen the negative (-) battery terminal clamp.
• Lift the clamp off and move it aside so it cannot spring back onto the post.
• Tip: Wrap the clamp with a glove.

Step 2: Raise and support the front of the car

• Use a floor jack (rated 2-ton minimum) to lift the front at the proper front jacking point.
• Set the car down on jack stands (rated 2-ton minimum) placed at solid support points.
• Shake the car gently to confirm it is stable before going underneath.

Step 3: Remove the lower splash shield (if equipped)

• Use a trim clip removal tool for push-pins and a 10mm socket with a 1/4" drive ratchet for bolts.
• Lower the shield and set the hardware aside in a small pile so nothing gets lost.

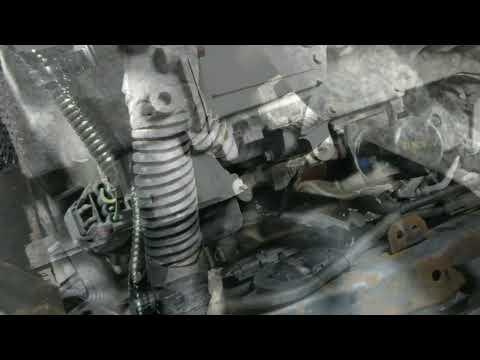

Step 4: Locate the starter and identify the wires

• Use a work light to find the starter mounted where the engine meets the transmission (bellhousing area).
• You’ll typically see:
• The thick battery cable on a stud (main power).
• A smaller plug/wire (the “trigger” signal that tells it to crank).
• Tip: Compare to your new starter first.

Step 5: Disconnect the starter wiring

• Unplug the small trigger connector by pressing the tab and pulling straight off. Use a flathead screwdriver gently only if needed.
• Remove the nut for the main battery cable using a 13mm socket and 3/8" drive ratchet.
• Pull the cable off the stud and keep it safely away from the starter.
• Apply a thin wipe of dielectric grease to the connector seal (not on the stud threads).

Step 6: Remove the starter mounting bolts

• Support the starter with one hand so it doesn’t drop when bolts come out.
• Use a 15mm socket, 3/8" drive ratchet, and a 6" socket extension.
• If access is tight, use a universal joint adapter (wobble) (specialty) with a 12" socket extension.
• Remove the mounting bolts and slide the starter out.

Step 7: Install the new starter

• Position the new starter into place by hand, aligning it flush to the mounting surface.
• Start the mounting bolts by hand first (this prevents cross-threading).
• Tighten with a 15mm socket and 3/8" drive ratchet, then use a 3/8" drive torque wrench (10–100 Nm range).
• Torque to 35–45 Nm (26–33 ft-lbs).
• Tip: If it won’t sit flush, don’t force it.

Step 8: Reconnect the starter wiring

• Install the main battery cable onto the starter stud.
• Install a new nut (from your Starter electrical terminal nut kit) and tighten using a 13mm socket.
• Torque to 10–12 Nm (7–9 ft-lbs).
• Plug the small trigger connector back in until it clicks.

Step 9: Reinstall the splash shield and lower the car

• Reinstall the splash shield using the trim clip removal tool (to seat push pins) and 10mm socket for bolts.
• Raise slightly with the floor jack (rated 2-ton minimum), remove the jack stands (rated 2-ton minimum), then lower the car fully.

Step 10: Reconnect the battery and test

• Reconnect the negative (-) battery terminal using a 10mm socket.
• Torque to 6–8 Nm (53–71 in-lbs).
• Start the engine. Listen for a strong, clean crank with no grinding.

---

✅ After Repair

• Start the engine 3–5 times to confirm consistent cranking.
• Check that no warning lights appear after driving a short loop.
• Recheck the starter main cable nut for tightness after the first drive (engine off, key away).
• If you hear a grind/whine, stop and recheck starter seating and bolt tightness.

---

💰 DIY vs Shop Cost

Shop Cost: ₹12,000-₹25,000 (parts + labor)

DIY Cost: ₹6,000-₹15,000 (parts only)

You Save: ₹6,000-₹10,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,000-₹2,500/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
