🔧 K900 - Starter Motor Replacement

The starter motor is what spins the engine so it can start. On your K900, the starter is mounted to the transmission bellhousing and can be replaced from underneath with basic hand tools.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: Starter is accessible from underneath without intake removal; torque specs shown are common OEM ranges when exact spec isn’t available.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery terminal before touching the starter wiring (prevents shorts and burns).
• ⚠️ Support the car with jack stands on the correct lift points; never rely on a floor jack alone.
• ⚠️ Let the exhaust cool fully; the starter area can be near hot components.
• ⚠️ Keep the key fob away from the car while working to prevent accidental cranking.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 10mm socket
• 12mm socket
• 14mm socket
• Ratchet (3/8" drive)
• Extension set (3" and 6")
• Universal joint adapter (3/8" drive)
• Torque wrench (3/8" drive, 10–100 Nm range)
• Trim clip removal tool
• Flathead screwdriver
• Work light
• Battery terminal puller (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Starter electrical terminal nut kit - Qty: 1
• Lower engine splash shield fastener/clip kit - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the shifter in Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and plan your battery disconnect first.
• Lay out a clean area for bolts and clips so nothing gets lost.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative (-) battery terminal clamp.
• Remove the negative cable and position it so it cannot spring back onto the post.
• If the clamp is stuck, use a battery terminal puller (specialty) to lift it off without damage.
• Tip: Negative off first, on last.

Step 2: Raise and support the car

• Lift the front of the car with a floor jack (rated 3-ton minimum).
• Set it securely on jack stands (rated 3-ton minimum).
• Give the car a gentle shake to confirm it’s stable before going underneath.

Step 3: Remove the lower splash shield

• Use a trim clip removal tool and flathead screwdriver to remove plastic clips.
• Use a 10mm socket to remove any small bolts holding the shield.
• Set the shield and fasteners aside in order.

Step 4: Locate the starter and identify the wiring

• Use a work light to find the starter where the engine meets the transmission (bellhousing).
• You’ll see 2 connections on the starter solenoid:
  • The thick battery cable (main power).
  • The smaller signal wire connector (tells the starter to crank).
• Tip: Take a quick photo before disconnecting.

Step 5: Disconnect the starter electrical connections

• Remove any protective rubber boot from the main terminal by hand.
• Use a 12mm socket to remove the main power cable nut from the starter terminal.
• Use a flathead screwdriver (if needed) to release the small signal connector lock and unplug it.
• Apply a thin film of dielectric grease to the connector seal on reassembly (helps prevent corrosion).

Step 6: Remove the starter mounting bolts

• Support the starter with one hand while loosening bolts with the other.
• Use a 14mm socket with a ratchet (3/8" drive) plus an extension set and universal joint adapter as needed.
• Remove the starter mounting bolts, then pull the starter straight out of the bellhousing.

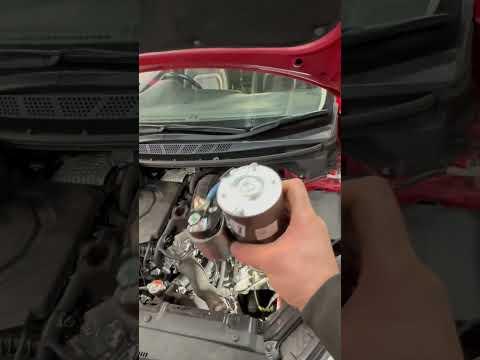

Step 7: Install the new starter

• Compare the old and new starter side-by-side (mounting holes, nose length, electrical studs).
• Position the new starter and start all mounting bolts by hand first (prevents cross-threading).
• Tighten with a 14mm socket, then use a torque wrench (3/8" drive, 10–100 Nm range): Torque to 40–55 Nm (30–41 ft-lbs).
• Tip: Hand-starting bolts saves hours of headache.

Step 8: Reconnect the starter wiring

• Reconnect the small signal connector until it clicks in place.
• Install the main battery cable onto the starter terminal and tighten the nut using a 12mm socket: Torque to 8–12 Nm (71–106 in-lbs).
• Reinstall the rubber boot over the main terminal (keeps water and dirt out).

Step 9: Reinstall the splash shield and lower the car

• Reinstall the splash shield using the 10mm socket and trim clip removal tool.
• Lower the car safely using the floor jack (rated 3-ton minimum) and remove the jack stands (rated 3-ton minimum).

Step 10: Reconnect the battery

• Reconnect the negative (-) battery terminal and tighten using a 10mm socket: Torque to 5–7 Nm (44–62 in-lbs).
• Make sure the clamp is fully seated and doesn’t rotate on the post.

---

✅ After Repair

• Start the engine and confirm it cranks strongly with no clicking or grinding sounds.
• Check that no warning lights appear related to low voltage; if the battery was weak, consider charging it.
• Look underneath for any loose wiring near the starter and confirm the splash shield is secure.
• If the starter only clicks: re-check the main cable nut tightness and the signal connector seating.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,100 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $470-$650 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
