🔧 Corolla - Starter Motor Replacement

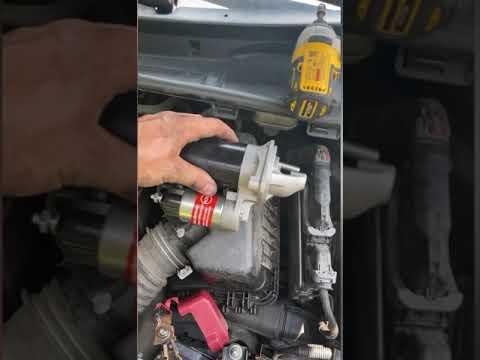

The starter motor spins the engine so it can start. When it fails, you may get a single click, slow cranking, or no crank at all even with a good battery. On your Corolla, the starter is mounted to the transmission bellhousing and is reached with a mix of top-side access (air box area) and bottom-side access (under cover).

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: Stock intake/air box, standard 1.8L starter access.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a dangerous short at the starter power cable.
• ⚠️ Support the car on jack stands before working underneath; never rely on a floor jack alone.
• ⚠️ Keep keys/fob away from the car while working (prevents accidental cranking).
• ⚠️ Work on a cool engine; the exhaust and radiator area can burn you.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" torque wrench (10-80 ft-lbs range)
• 6" extension (3/8" drive)
• 12" extension (3/8" drive)
• Universal joint adapter (3/8" drive)
• Trim clip remover
• Flat-blade screwdriver
• Needle-nose pliers
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter electrical terminal nut cap (if damaged) - Qty: 1
• Plastic under-cover clips (assorted, if any break) - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Open the hood and disconnect the battery: use a 10mm socket to remove the negative (-) battery terminal and tuck it aside so it can’t spring back.
• Raise the front with a floor jack and support it securely on jack stands at the proper lift points.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine under cover

• Use a trim clip remover and flat-blade screwdriver to pop out the plastic clips.
• Use a 10mm socket to remove any under-cover bolts, then lower the cover and set it aside.

Step 2: Make room from the top side (air cleaner area)

• Use a flat-blade screwdriver to loosen the intake hose clamp.
• Unclip/unbolt the air cleaner housing as needed using a 10mm socket, then lift it out.
• Tip: Take a quick photo before unplugging anything.

Step 3: Locate the starter and identify the two connections

• The starter has: (1) a large battery cable on a stud (always hot when battery is connected) and (2) a small plug (the “signal” wire that tells it to crank).
• A work light helps you see the wiring and bolt heads clearly.

Step 4: Disconnect the starter electrical connections

• Pull back the rubber boot on the large cable connection.
• Use a 12mm socket to remove the nut, then remove the large cable from the stud.
• Press the lock tab and unplug the small starter connector by hand or with needle-nose pliers (gentle pressure only).
• Reinstall the nut on the stud loosely so you don’t lose it.
• Torque spec (installation): Torque the starter terminal nut to 9 Nm (80 in-lbs)

Step 5: Remove the starter mounting bolts

• From above and/or below (whichever gives better access), use a 14mm socket with a 6" extension (and universal joint adapter if needed) to remove the starter mounting bolts.
• Support the starter with your free hand as the last bolt comes out.
• Lift the starter out carefully without yanking on wires or hoses.
• Torque spec (installation): Torque the starter mounting bolts to 39 Nm (29 ft-lbs)

Step 6: Install the new starter

• Position the new starter into place by hand.
• Start both mounting bolts by hand first (prevents cross-threading), then tighten using a 14mm socket.
• Finish tightening with a 3/8" torque wrench: Torque to 39 Nm (29 ft-lbs).

Step 7: Reconnect wiring to the starter

• Plug in the small starter connector until it clicks.
• Install the large battery cable onto the stud and tighten the nut using a 12mm socket.
• Torque the nut with a 3/8" torque wrench: Torque to 9 Nm (80 in-lbs).
• Pull the rubber boot back over the stud so it’s fully covered.

Step 8: Reinstall air intake/air box parts

• Reinstall the air cleaner housing using a 10mm socket.
• Reinstall the intake hose and tighten the clamp using a flat-blade screwdriver.
• Double-check that any unplugged connectors are reconnected and routed cleanly.

Step 9: Reinstall the engine under cover and lower the car

• Reinstall the under cover using the 10mm socket and plastic clips (use the trim clip remover as needed).
• Raise slightly with the floor jack, remove jack stands, then lower the car.

Step 10: Reconnect the battery

• Reconnect the negative (-) battery terminal using a 10mm socket.
• Torque spec: Torque the battery terminal clamp nut to 5 Nm (44 in-lbs)

---

✅ After Repair

• Start the engine and confirm it cranks strongly and starts normally.
• Listen for abnormal grinding or clicking; if heard, shut off and recheck starter mounting and wiring.
• Check that the rubber boot fully covers the starter power stud (prevents corrosion and shorts).
• If you had any warning lights due to low voltage, a short drive may clear them; otherwise, a scan tool can clear stored codes.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $140-$350 (parts only)

You Save: $300-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
