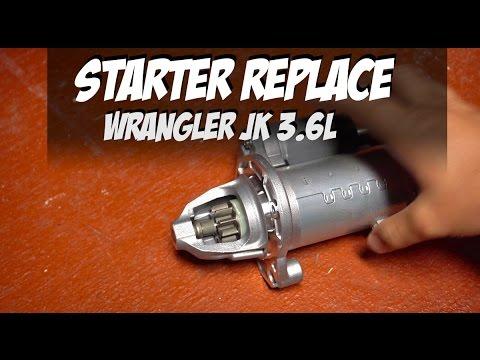

🔧 Wrangler - Starter Motor Replacement

The starter motor cranks your engine when you turn the key. If it’s failing, you may hear a single click, slow cranking, or no crank at all. Replacing it is mostly an under-vehicle bolt-and-wire job.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable first to prevent a short (the starter cable is always “hot”).
• ⚠️ Support your A4WD safely: use jack stands on the frame, not the axle.
• ⚠️ Let the exhaust cool before working near it.
• ⚠️ Keep the key out of the ignition while working.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-100 ft-lbs range)
• 3" extension (3/8" drive)
• 6" extension (3/8" drive)
• Universal joint adapter (3/8" drive)
• Trim clip tool
• Flashlight
• Wire brush
• Dielectric grease

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Starter electrical terminal nut set - Qty: 1
• Battery terminal anti-corrosion pads - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Raise the front and support the frame with jack stands using a floor jack.
• Assumption: Stock skid plate layout; steps include “if equipped” notes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Open the hood and locate the battery.
• Use a 10mm socket and 3/8" drive ratchet to loosen the negative battery terminal and remove it.
• Move the cable aside so it can’t spring back to the post. Remove negative first, install negative last.

Step 2: Get access to the starter

• Slide under the passenger side and aim your flashlight up toward the bellhousing (where the engine meets the transmission).
• If a skid plate blocks access, remove it using a 13mm socket (common) with a 3/8" drive ratchet and 6" extension.
• If any wiring clips or loom retainers block your hands, pop them free using a trim clip tool.
• A universal joint helps around tight angles. (A universal joint adapter is a swivel that lets the socket bend.)

Step 3: Label and remove the starter wiring

• Locate the starter’s solenoid (the small cylinder attached to the starter).
• Remove the large battery cable nut using a 13mm socket with a 3" extension.
• Remove the small signal wire nut (if nut-style) using a 10mm socket.
• Clean the ring terminals lightly using a wire brush.
• Apply a thin film of dielectric grease to help resist corrosion (do not glob it on).

Step 4: Remove the starter mounting bolts

• Support the starter with one hand (it’s heavier than it looks).
• Remove the starter mounting bolts using a 15mm socket, 3/8" drive ratchet, and a 6" extension.
• If the top bolt is tight to reach, add the universal joint adapter (3/8" drive) to angle the socket.
• Lower the starter out carefully.

Step 5: Install the new starter

• Compare the new starter to the old one (bolt holes and electrical studs should match).
• Position the starter in place and hand-start both mounting bolts to avoid cross-threading.
• Tighten mounting bolts using a 15mm socket and 3/8" drive ratchet, then final-tighten with a 3/8" drive torque wrench.
• Torque to 54 Nm (40 ft-lbs) for the starter mounting bolts.

Step 6: Reconnect the starter wiring

• Install the large battery cable onto the main starter stud and tighten using a 13mm socket and 3/8" drive torque wrench.
• Torque to 13 Nm (115 in-lbs) for the main battery cable nut.
• Install the small signal wire and tighten using a 10mm socket and 3/8" drive torque wrench.
• Torque to 5 Nm (44 in-lbs) for the solenoid signal terminal nut.
• Re-secure any wiring clips/loom retainers using a trim clip tool.

Step 7: Reinstall skid plate (if removed) and lower the vehicle

• Reinstall the skid plate bolts using a 13mm socket and 3/8" drive ratchet.
• Lower the vehicle safely using the floor jack (rated 3-ton minimum) and remove the jack stands.

Step 8: Reconnect the battery and test

• Clean the battery post if needed using a wire brush, then install anti-corrosion pads.
• Reconnect the negative terminal using a 10mm socket and 3/8" drive ratchet.
• Start the engine and confirm it cranks strongly with no clicking.

---

✅ After Repair

• Do 3-5 start cycles and listen: it should crank quickly and smoothly.
• Check for any warning lights and make sure no wires are near the exhaust.
• After a short drive, recheck the starter wiring nuts for tightness (engine off, key out).

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $150-$400 (parts only)

You Save: $300-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
