🔧 Civic - Starter Motor Replacement

Your Civic’s starter motor spins the engine so it can start. When it fails, you may get a single click, slow crank, or no crank even with a good battery. This job is mostly access and careful wiring removal.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: Stock intake and battery setup; access from top.

---

⚠️ Safety & Precautions

• 🛑 Disconnect the battery before touching the starter wiring (the main cable is always “hot” and can short to metal).
• 🔥 Let the engine cool before working near the exhaust side and radiator area.
• 🧤 Wear gloves and safety glasses; you’ll work around sharp brackets and tight spaces.
• ⚡ Do not allow tools to bridge between the starter terminal and any metal ground.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 10mm combination wrench
• 3/8" drive ratchet
• 3/8" drive extension set
• 3/8" drive wobble extension
• Torque wrench (10–80 ft-lbs range)
• Flathead screwdriver
• Needle-nose pliers
• Trim clip removal tool
• Work light
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Dielectric grease - Qty: 1
• Battery terminal anti-corrosion spray - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Install wheel chocks behind the rear tires.
• Open the hood and place a fender cover to protect paint.
• Battery disconnect: use a 10mm wrench to remove the negative (−) terminal first, then the positive (+) if needed.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm combination wrench to loosen and remove the negative (−) battery terminal, then tuck it aside so it can’t spring back.
• Negative off first prevents accidental shorting.

Step 2: Remove the air intake duct and air box (for access)

• Use a flathead screwdriver to loosen the intake hose clamp(s).
• Unclip/remove any plastic clips using a trim clip removal tool.
• Lift out the intake duct/air box as needed to open up space near the transmission side of the engine.

Step 3: Remove the battery and battery tray (if it blocks access)

• Use a 10mm socket and ratchet to remove the battery hold-down hardware.
• Lift the battery straight up and out (keep it level).
• Use a 10mm socket to remove the battery tray fasteners, then remove the tray.

Step 4: Locate the starter motor

• Use a work light to look down toward where the engine meets the transmission (bellhousing area).
• The starter is a small motor with a thicker battery cable attached and a smaller plug connector.

Step 5: Disconnect the starter electrical connections

• Remove the small signal connector by pressing the tab and pulling it off (use needle-nose pliers only if needed; don’t crush it).
• Remove the protective rubber boot on the main power terminal by hand.
• Use a 12mm socket and ratchet to remove the nut holding the main battery cable to the starter terminal, then move the cable aside.
• Apply a small amount of dielectric grease to the connector seal (not on the metal contact).

Step 6: Remove the starter mounting bolts

• Use a 14mm socket, ratchet, and extension set (and a wobble extension if needed) to remove the two starter mounting bolts.
• Support the starter with your free hand as the last bolt comes out so it doesn’t drop.

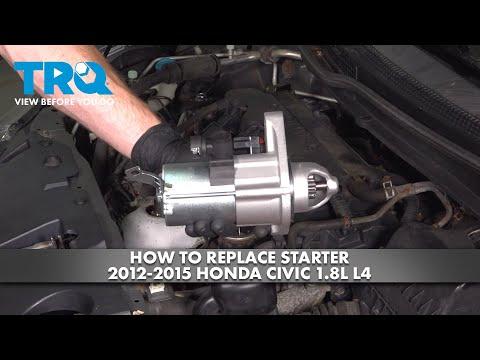

Step 7: Remove the starter and compare parts

• Wiggle and lift the starter out of the engine bay.
• Compare the new and old starter: mounting ears, electrical studs, and connector type should match.

Step 8: Install the new starter

• Position the starter into place and start both mounting bolts by hand to avoid cross-threading.
• Use a 14mm socket and ratchet to snug them down evenly.
• Use a torque wrench: Torque to 44 Nm (33 ft-lbs) for the starter mounting bolts.

Step 9: Reconnect the starter wiring

• Install the main battery cable onto the starter terminal and hand-start the nut.
• Use a 12mm socket to tighten the nut, then reinstall the rubber boot.
• Plug in the small signal connector until it clicks.
• Make sure cables don’t rub on sharp edges.

Step 10: Reinstall the battery tray, battery, and intake parts

• Reinstall the battery tray using a 10mm socket.
• Reinstall the battery hold-down using a 10mm socket.
• Reconnect battery terminals: positive (+) first, then negative (−), using a 10mm combination wrench.
• Reinstall the intake duct/air box and tighten clamps using a flathead screwdriver.
• Spray terminals with battery terminal anti-corrosion spray.

---

✅ After Repair

• Start the engine and confirm it cranks strongly and starts normally.
• Verify no warning lights related to loose battery connection are present.
• Recheck that the intake clamps are tight (no whistling/hissing air leak).
• Inspect near the starter for any tools left behind and that wiring is secured away from moving parts.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $140-$320 (parts only)

You Save: $310-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
