Silverado 1500 - Starter Motor Replacement 🔧

Got it—you want to replace the starter on your Silverado. I’ll walk you through it step by step in simple language.

Quick check first: Is your truck lifted or stock height? And do you have basic tools (socket set, jack, jack stands)? This helps me tailor a couple of tips, but I’ll still give you the full procedure below.

Safety First ⚠️

• 🛑 Disconnect the battery before touching the starter. The starter cable is directly connected to the battery and can spark badly if it touches metal.
• 🛑 Support the truck with jack stands, never rely only on a jack.
• 🛑 Let the exhaust cool if the truck was just running; the starter is close to it.

Tools & Supplies Needed 🧰

• 🧰 Floor jack and jack stands (to safely lift and support the truck)
• 🧰 Wheel chocks (blocks behind wheels so the truck can’t roll)
• 🧰 Socket set:
  • 10 mm (battery terminals)
  • 13 mm (starter electrical nut, common size)
  • 15 mm (starter mounting bolts, common size)
• 🧰 Ratchet and extensions (extensions help reach bolts from a better angle)
• 🧰 Torque wrench (tool that lets you tighten bolts to a specific force)
• 🧰 Flat screwdriver or trim tool (to release any clips on wiring)
• 🧰 Safety glasses and mechanic gloves
• 🧰 Dielectric grease (optional, helps protect electrical connections from corrosion)

Parts You’ll Need 📦

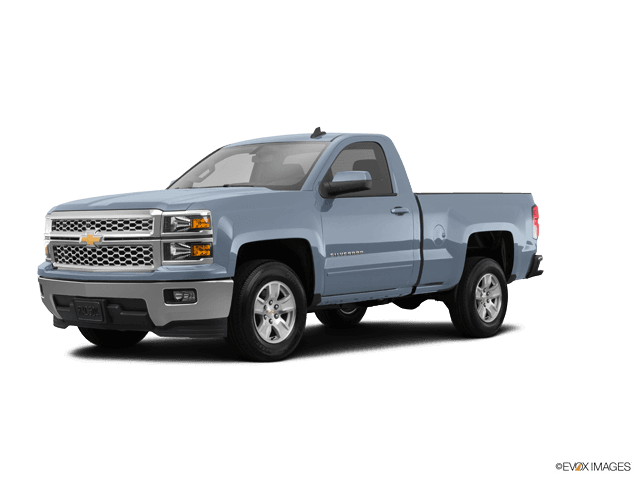

• 🧰 Starter motor assembly for your 2015 Silverado 1500 5.3L 4WD LT
• 🧰 New starter mounting bolts (recommended; GM often specifies replacing torque-to-yield bolts)

Where the Starter Is Located 📍

The starter on your Silverado is mounted on the passenger side of the engine, low down, where the engine meets the transmission (bellhousing area). You access it from underneath the truck.

Step 1 – Prepare the Truck 🧱

• 🧰 Park on a flat surface, set the parking brake, and put the shifter in PARK.
• 🧰 Place wheel chocks behind the rear wheels.
• 🧰 Open the hood.

Step 2 – Disconnect the Battery 🔋

• 🧰 Use a 10 mm socket to loosen the negative (-) battery terminal clamp.
• 🧰 Remove the negative cable and tuck it aside so it cannot spring back and touch the terminal.
• Always remove negative first to reduce the risk of short circuits.

Step 3 – Raise and Support the Truck 🚗

• 🧰 Position the floor jack under a solid front frame point (not under thin sheet metal).
• 🧰 Lift the front of the truck high enough to work comfortably underneath.
• 🧰 Place jack stands under the frame rails on both sides and gently lower the truck onto them.
• 🧰 Give the truck a small shake to confirm it’s stable.

Step 4 – Locate the Starter 🔎

• 🧰 Slide under from the passenger side.
• 🧰 Look where the engine meets the transmission. The starter is a cylindrical motor with a smaller cylinder (solenoid) attached and thick battery cable going to it.

Step 5 – Disconnect Starter Wiring 🔌

Do this before removing the starter bolts so the wiring isn’t under tension.

• 🧰 On the starter solenoid, you’ll see:
  • A large cable from the battery (on a stud with a nut).
  • A smaller control wire (usually on a smaller stud or a plug-in connector).
• 🧰 If there is a plastic cover over the large terminal, pop it off gently.
• 🧰 Use a 13 mm socket (size may vary slightly) to remove the nut holding the large battery cable. Pull the cable off and set it aside.
• 🧰 For the small wire:
  • If it’s on a stud, remove the small nut (often 8–10 mm) and slide the wire off.
  • If it’s a plug, press the tab and pull it straight off.

Step 6 – Remove Starter Mounting Bolts 🔩

• 🧰 The starter is held to the engine block by two long bolts going through the starter nose into the block.
• 🧰 Use a 15 mm socket with a ratchet and extension to remove the rear (upper) bolt first.
• 🧰 Support the starter with one hand while you loosen the front (lower) bolt so it doesn’t drop.
• 🧰 Remove the lower bolt and carefully lower the starter out of the truck.

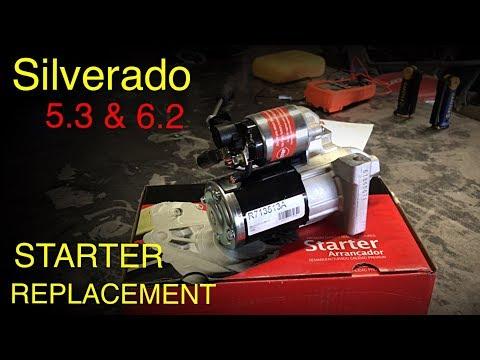

Step 7 – Compare Old and New Starter 🔍

• 🧰 Place the old and new starters side by side.
• 🧰 Check:
  • Mounting holes line up.
  • Electrical terminals in the same locations.
  • Gear (pinion) size and position match.
• If anything looks different, stop and confirm the part number before installing.

Step 8 – Install the New Starter 🆕

• 🧰 Lift the new starter into position, aligning the nose into the opening in the bellhousing.
• 🧰 Start the lower bolt by hand first to hold the starter in place. Do not tighten fully yet.
• 🧰 Install the upper bolt by hand.
• 🧰 Once both bolts are threaded in by hand (to avoid cross-threading), tighten them with the ratchet.

Step 9 – Torque the Starter Bolts 🔧

GM spec for the 5.3L starter mounting bolts on this generation is typically:

• 🧰 Starter mounting bolts: 37 lb-ft (50 N·m)

Use a torque wrench if you have one; it helps avoid over-tightening or under-tightening.

Step 10 – Reconnect Starter Wiring 🔌

• 🧰 Reinstall the large battery cable onto the big stud on the solenoid.
• 🧰 Install the nut and tighten snugly (do not overtighten; you don’t want to crack the stud). Typical torque is around 80–106 in-lb (9–12 N·m).
• 🧰 Reconnect the small control wire:
  • On a stud: reinstall the small nut and snug it.
  • On a plug: push it on until it clicks.
• 🧰 If there was a plastic terminal cover, snap it back in place.
• 🧰 Optional: apply a small amount of dielectric grease to exposed terminals to help prevent corrosion.

Step 11 – Lower the Truck 🧱

• 🧰 Slide out from under the truck.
• 🧰 Use the jack to lift the truck slightly off the jack stands.
• 🧰 Remove the jack stands and lower the truck to the ground.

Step 12 – Reconnect the Battery & Test 🔄

• 🧰 Reconnect the negative (-) battery terminal and tighten the 10 mm nut.
• 🧰 Get in the truck and turn the key to START (or press the button if equipped).
• 🧰 Listen:
  • Strong crank and engine starts = success.
  • Click but no crank = recheck battery connections and starter wiring.
  • No sound at all = check fuses and that the small control wire is fully seated.

Tips & Common Beginner Mistakes 💡

• 🧰 Don’t skip the battery disconnect. This is the most important safety step.
• 🧰 Start bolts by hand. If a bolt feels tight right away, back it out and try again to avoid cross-threading.
• 🧰 Take pictures of the wiring before removal so you can match it on reassembly.
• 🧰 If the starter grinds after install, the alignment or bolts may be loose—shut it off immediately and recheck.
