🔧 Cruze - Starter Motor Replacement

Your Cruze’s starter motor cranks the engine when you turn the key. If it’s failing, you may hear a single click, slow cranking, or no crank at all even with a good battery.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: Access and fastener types can vary slightly; follow OEM torque specs for your exact build.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before any starter work (the main starter cable is always “hot” otherwise).
• ⚠️ Support the car with jack stands on a solid, level surface; never work under a car held only by a jack.
• ⚠️ Let the engine/exhaust cool; the turbo and exhaust area can burn you.
• ⚠️ Keep the key out of the ignition so nobody cranks the engine while your hands are near the starter.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Metric socket set 8mm-19mm
• 13mm socket
• 15mm socket
• E-Torx socket set E10-E14
• Ratchet (3/8" drive)
• Long extensions (3/8" drive)
• Universal joint adapter (3/8" drive)
• Torque wrench (3/8" drive)
• Flat trim tool
• Flathead screwdriver
• Pliers
• Work light
• Battery terminal puller (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter mounting bolts - Qty: 2
• Starter solenoid terminal nut - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Open the hood and make sure the ignition is OFF and the key is away from the car.
• Disconnect the battery: use a 10mm socket to remove the negative battery cable and isolate it so it can’t spring back.
• Raise the front of the car with a floor jack and support it securely on jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower splash shield (if equipped)

• Use an 8mm socket and a flat trim tool to remove the fasteners holding the lower shield.
• Set the shield and fasteners aside in a small container.

Step 2: Create access from the top

• Loosen the intake hose clamp(s) using a flathead screwdriver (a clamp is the metal band that tightens around a hose).
• Release any intake clips with a flat trim tool, then lift out the intake duct/resonator as needed.
• Take a quick photo first for reassembly.

Step 3: Locate the starter and identify the wires

• The starter sits at the engine-to-transmission area (bellhousing). It will have:
• A thick battery cable on a stud (main power).
• A smaller control wire/connector (the “start” signal).

Step 4: Disconnect the starter electrical connections

• Remove the protective rubber boot from the main power stud by hand.
• Use a 13mm socket to remove the nut for the main battery cable, then lift the cable off and move it aside.
• Disconnect the small control connector by pressing the tab (use pliers gently only if needed).
• Apply a thin film of dielectric grease to the small connector seal during reassembly.

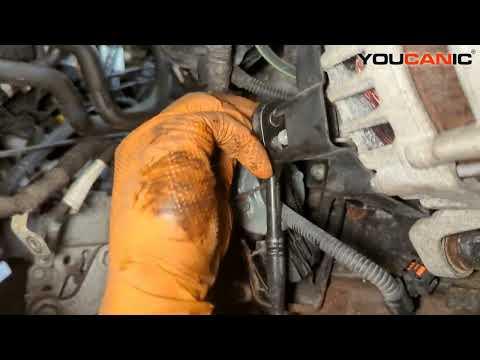

Step 5: Remove the starter mounting bolts

• Support the starter with one hand while loosening the bolts.
• Use an E-Torx socket (E12 or E14) with a ratchet, long extensions, and a universal joint adapter as needed to remove the two starter bolts.
• Lower the starter out carefully—do not let it hang by any wire.

Step 6: Compare the old and new starter

• Make sure the new starter matches the old one: mounting ears, nose length, electrical stud position, and connector style.
• If a heat shield/bracket transfers over, move it to the new starter using the appropriate socket.

Step 7: Install the new starter

• Position the starter into place by hand.
• Start both mounting bolts by hand first to avoid cross-threading.
• Tighten with an E-Torx socket and torque wrench: Torque to OEM specification.

Step 8: Reconnect the starter wiring

• Install the main battery cable onto the stud and start the nut by hand.
• Tighten with a 13mm socket and torque wrench: Torque to OEM specification.
• Reinstall the rubber boot over the main stud.
• Reconnect the small control connector until it clicks.

Step 9: Reinstall intake parts and the lower splash shield

• Reinstall the intake duct/resonator and tighten hose clamps using a flathead screwdriver.
• Reinstall the lower splash shield using an 8mm socket and flat trim tool.

Step 10: Reconnect the battery and lower the car

• Reconnect the negative battery cable using a 10mm socket and tighten securely.
• Remove jack stands and lower the car with the floor jack.

---

✅ After Repair

• Start the engine and listen for a strong, smooth crank with no clicking or grinding.
• With the engine running, check that no warning lights appear related to low voltage.
• Recheck the starter area for any loose wiring and ensure the rubber boot fully covers the main power stud.
• If it only clicks, recheck battery connections first.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $150-$400 (parts only)

You Save: $300-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
