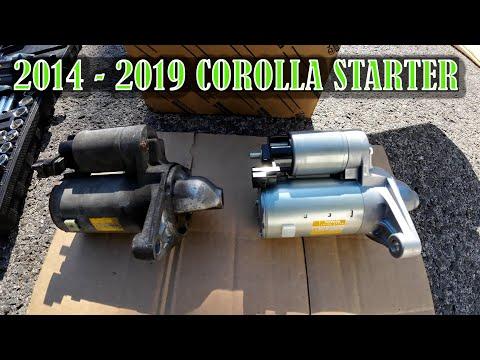

🔧 Starter Motor - Replacement

The starter motor spins the engine during startup. If you get a single click, slow cranking, or no crank with a charged battery, replacing the starter on your Corolla is the next logical fix.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting. The starter has constant battery power.
• Keep metal tools away from the battery positive cable and starter terminals.
• Let the engine cool if it has been running. The exhaust and transaxle area can be hot.
• Use jack stands if you raise the front of the vehicle. Never rely on a jack alone.
• Your Corolla does not need EPB or ADAS service mode for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm wrench
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8-inch ratchet
• 3-inch extension
• 6-inch extension
• Socket wrench with swivel adapter
• Trim clip removal tool
• Flat blade screwdriver
• Torque wrench
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Starter mounting bolts - Qty: 2
• Starter electrical nut washer - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Put the transmission in neutral and chock the rear wheels.
• Disconnect the negative battery cable with a 10mm wrench.
• If equipped, remove the engine cover before you start.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm wrench to loosen the negative battery terminal.
• Move the cable aside so it cannot touch the battery post.
• Wrap the cable end with a rag.

Step 2: Remove the battery and intake parts

• Use a 10mm socket to remove the battery hold-down and battery tray hardware.
• Lift the battery out carefully. It is heavy.
• Use a 10mm socket and flat blade screwdriver to remove the air cleaner duct and any intake brackets blocking access.

Step 3: Locate the starter

• Find the starter on the transaxle bellhousing area, near the engine and transmission joint.
• Trace the thick battery cable to the starter terminal.

Step 4: Remove the starter wiring

• Use a 12mm socket to remove the nut from the main power cable at the starter.
• Remove the smaller control connector by hand or with a flat blade screwdriver if needed.
• Keep the wire ends from touching metal.

Step 5: Remove the starter mounting bolts

• Use a 14mm socket, 3-inch extension, and 6-inch extension to remove the two starter bolts.
• Support the starter with one hand while removing the last bolt.
• Pull the starter straight out of the bellhousing.
• Rock it gently; do not pry hard.

Step 6: Install the new starter

• Set the new starter into place by hand.
• Install both mounting bolts first to avoid cross-threading.
• Use a 14mm socket and tighten the bolts to 39 Nm (29 ft-lbs).

Step 7: Reconnect the starter wiring

• Reconnect the small control connector until it clicks.
• Install the main power cable with a 12mm socket.
• Tighten the terminal nut to 9 Nm (80 in-lbs).
• Make sure the cable boot fully covers the terminal.

Step 8: Reinstall the battery and intake parts

• Reinstall the battery tray and hold-down using a 10mm socket.
• Set the battery back in place and reconnect the terminals.
• Reinstall the air cleaner duct and any removed brackets.

Step 9: Restore power and test

• Reconnect the negative battery cable with a 10mm wrench.
• Start the engine and listen for smooth cranking.
• Check for warning lights and confirm no loose wires near the starter.

---

✅ After Repair

• Start the engine 3-4 times to confirm consistent cranking.
• Check the battery terminals and starter cables for heat or looseness.
• If the engine still does not crank, test the battery, starter relay, and clutch start switch.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $140-$320 (parts only)

You Save: $310-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
