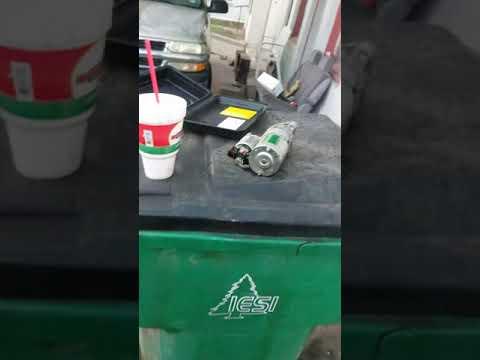

🔧 Cadenza - Starter Motor Replacement

The starter motor spins your engine to start it. If it’s failing, you may hear a single click, slow cranking, or nothing at all. This job is mostly access + careful wiring removal, then swapping the starter.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: Starter is accessed from underneath with under-cover removed.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a short.
• ⚠️ Support the car on jack stands; never rely on a floor jack.
• ⚠️ Let the exhaust/engine cool before working underneath.
• ⚠️ Keep the key/fob away from the car while working.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Flashlight
• Trim clip remover
• Ratchet (3/8" drive)
• Socket set: 10mm, 12mm, 14mm, 17mm
• Wrench set: 10mm, 12mm, 14mm
• Extension set (3", 6", 12")
• Universal joint adapter (3/8" drive)
• Torque wrench (10–100 Nm range)
• Flathead screwdriver
• Needle-nose pliers
• Battery terminal puller (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Battery terminal anti-corrosion washers - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and make sure all accessories are off.
• Disconnect the battery: use a 10mm wrench to remove the negative (-) terminal first, then isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower engine cover (undertray)

• Raise the front of the car with a floor jack (rated 3-ton minimum) and support it with jack stands (rated 3-ton minimum).
• Use a trim clip remover and 10mm socket to remove the clips/bolts holding the undertray.
• Set the undertray and fasteners aside in a small pile. Keep clips grouped by location.

Step 2: Locate the starter motor

• Use a flashlight to find the starter where the engine and transmission meet (bellhousing area).
• The starter is a small cylinder with a smaller “solenoid” attached (the solenoid is the small switching motor on top/side of the starter).

Step 3: Remove the starter electrical connections

• Remove any plastic splash shield in the way using a trim clip remover and 10mm socket (if equipped).
• Pull off the small control-wire connector by depressing the lock tab (use needle-nose pliers gently if tight).
• Remove the main battery cable nut on the starter using a 12mm socket (commonly 12mm).
• Lift the cable off the stud and tuck it safely aside so it can’t touch metal.
• Optional: apply a thin film of dielectric grease to connector seals only (not the metal contact faces).

Step 4: Remove the starter mounting bolts

• Use a 14mm socket, ratchet (3/8" drive), and extension set (3", 6", 12") to remove the starter mounting bolts.
• If bolt access is angled, add a universal joint adapter (3/8" drive) (this lets the socket bend slightly).
• Support the starter with one hand as you remove the last bolt so it doesn’t drop.

Step 5: Remove the starter motor

• Wiggle the starter free from the bellhousing and guide it out carefully.
• If it feels stuck, gently rock it side-to-side by hand—don’t pry hard on aluminum surfaces.

Step 6: Install the new starter motor

• Compare old vs new starter (same mounting ears, same connector/stud positions).
• Position the new starter and start the mounting bolts by hand using a 14mm socket to prevent cross-threading.
• Tighten the starter mounting bolts using a torque wrench (10–100 Nm range): Torque to 50 Nm (37 ft-lbs).

Step 7: Reconnect the starter wiring

• Install the main battery cable onto the starter stud and tighten the nut using a 12mm socket: Torque to 12 Nm (9 ft-lbs).
• Reconnect the small control-wire connector until it clicks.
• Double-check the cable is routed away from exhaust and moving parts.

Step 8: Reinstall covers and lower the car

• Reinstall any splash shield using a 10mm socket and trim clip remover.
• Reinstall the undertray using a 10mm socket.
• Lift slightly with the floor jack (rated 3-ton minimum), remove jack stands (rated 3-ton minimum), and lower the car.

Step 9: Reconnect the battery

• Clean and reinstall terminals if needed, then reconnect the negative (-) battery terminal using a 10mm wrench.
• Install battery terminal anti-corrosion washers if you’re using them.

---

✅ After Repair

• Start the engine and confirm it cranks strongly with no clicking.
• Check for any warning lights and listen for abnormal grinding noises.
• With the engine running, verify no smoke/odor near the starter wiring area.
• Recheck under the car for any loose clips/fasteners after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $330-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
