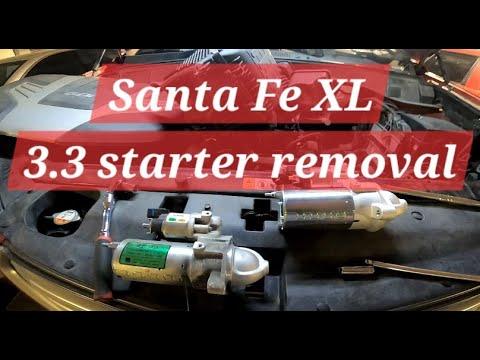

🔧 Santa Fe - Starter Motor Replacement

The starter motor cranks your Santa Fe’s engine when you turn the key/button. Replacing it involves disconnecting the battery, removing the electrical connections, unbolting the starter from the transmission bellhousing, and installing the new unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: 3.3L V6 starter is accessed from underneath near the transmission bellhousing; if access is tight, a top-access path is included.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable first to prevent a short (starter cable is always “hot”).
• ⚠️ Support the SUV with jack stands on solid ground; never work under a vehicle held only by a jack.
• ⚠️ Let the exhaust and engine cool before reaching near the rear of the engine.
• ⚠️ Keep keys/fob away from the vehicle while working to prevent accidental cranking.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive extension set (3", 6", 12")
• Universal joint adapter
• Torque wrench (10-100 ft-lbs range)
• Trim clip remover
• Flat screwdriver
• Needle-nose pliers
• Work light
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor (3.3L V6, AWD fitment) - Qty: 1
• Starter mounting bolts - Qty: 2 (recommended if corroded)
• Battery terminal anti-corrosion pads - Qty: 1 set

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, set the parking brake, and chock the rear wheels.
• 🔑 Keep the key/fob at least 10 feet away from the SUV.
• 🔋 Open the hood and plan to disconnect the battery. You will remove the negative terminal first.
• 🧰 Lay out a tray for bolts so nothing gets lost.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative (-) battery terminal clamp and remove it.
• Wrap the terminal with a rag and position it so it cannot spring back onto the post.

Step 2: Raise and support the vehicle

• Use a floor jack (rated 3-ton minimum) to lift the front of the SUV at the proper front jacking point.
• Set the SUV onto jack stands (rated 3-ton minimum) and give the vehicle a firm push to confirm it’s stable.

Step 3: Remove the lower engine cover (if equipped)

• Use a trim clip remover and flat screwdriver to remove plastic clips/screws holding the under cover.
• Lower the cover and set it aside.

Step 4: Locate the starter

• Use a work light and look where the engine meets the transmission (bellhousing area).
• The starter is a small motor with a thicker battery cable and a smaller control wire going to it.

Step 5: Disconnect the starter electrical connections

• Remove any protective rubber boot over the large cable stud by hand or with needle-nose pliers.
• Use a 12mm socket to remove the nut for the main battery cable from the starter stud, then move the cable aside.
• Disconnect the small starter signal connector by pressing the lock tab and pulling it straight off.
• Tip: Take a quick photo before removal.

Step 6: Remove the starter mounting bolts

• Support the starter with one hand.
• Use a 14mm socket, 3/8" drive ratchet, and a 3/8" drive extension set (3", 6", 12") to remove the starter mounting bolts.
• If the angle is awkward, add the universal joint adapter (this is a pivoting adapter that helps the socket bend around obstacles).
• Remove the starter from the bellhousing area.

Step 7: Compare parts and transfer items (if needed)

• Compare the old and new starter: mounting ears, electrical stud location, and connector style should match.
• If your new starter does not include a heat shield/bracket that your old one has, transfer it using the same fasteners and the 12mm socket or 14mm socket as applicable.

Step 8: Install the new starter

• Position the starter into place by hand.
• Start the mounting bolts by hand first to avoid cross-threading.
• Use a 14mm socket and 3/8" drive ratchet to snug the bolts.
• Use a torque wrench (10-100 ft-lbs range) to tighten starter mounting bolts: Torque to 44 Nm (32 ft-lbs).

Step 9: Reconnect the starter wiring

• Reconnect the small signal connector until it clicks (push straight on).
• Install the main battery cable onto the starter stud and thread the nut by hand.
• Use a 12mm socket and torque wrench to tighten the main cable nut: Torque to 10 Nm (7 ft-lbs).
• Re-seat the rubber boot over the main cable stud.

Step 10: Reinstall the lower engine cover

• Reinstall the under cover using the original clips/screws with the trim clip remover and flat screwdriver.

Step 11: Lower the vehicle and reconnect the battery

• Use the floor jack (rated 3-ton minimum) to lift slightly, remove the jack stands, then lower the SUV.
• Reconnect the negative (-) battery terminal and tighten using a 10mm socket.
• Tip: Snug is good—don’t crush the terminal.

Optional Step A (If access is too tight from below): Top-access clearance

• Remove the engine cover by pulling upward (no tools).
• Use a flat screwdriver to loosen the intake hose clamp(s) and move the intake tube/air ducting aside for extra hand room.
• Then perform Steps 4–9 from above using the same sockets and extensions.

---

✅ After Repair

• ✅ Start the engine and confirm it cranks strongly with no clicking or grinding noises.
• ✅ Check that no warning lights appear related to low voltage.
• ✅ With the engine running, recheck the starter main cable area for any rubbing wires and ensure the rubber boot is fully seated.
• ✅ Take a short test drive, then do a final quick visual check for loose fasteners.

---

💰 DIY vs Shop Cost

Shop Cost: $500-$900 (parts + labor)

DIY Cost: $150-$400 (parts only)

You Save: $350-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
