Assumption: Your NX200t has the factory 2.0L turbo (8AR-FTS) and the starter is accessed mainly from the top, with possible access help from below for one fastener.

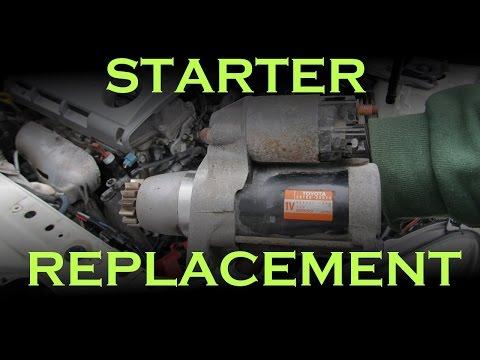

🔧 NX - Starter Motor Replacement

The starter motor cranks the engine when you press Start. If it’s failing, you may hear a single click, slow cranking, or no crank at all. This job is mostly careful disassembly, plus making sure the battery power is safely disconnected.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a short (the starter cable is always “hot”).
• ⚠️ Let the engine cool before working near the turbo/intake area.
• ⚠️ If you raise the vehicle, support it with jack stands; never rely on a floor jack.
• ⚠️ Keep tools away from the positive terminal and starter B+ stud.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-80 Nm range)
• 6" extension
• 12" extension
• Universal joint adapter
• Trim clip removal tool
• Flat-blade screwdriver
• Needle-nose pliers
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Work gloves
• Safety glasses
• Magnetic pickup tool
• Shop light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter electrical terminal nut (if damaged) - Qty: 1
• Dielectric grease (small packet) - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• 🧱 Place wheel chocks behind the rear wheels.
• 🔋 Open the hood and be ready to disconnect the battery (negative cable first).
• 💡 Set out a shop light so you can clearly see the wiring on the starter.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal clamp.
• Lift the negative cable off and tuck it aside so it can’t spring back.
• Wait 2 minutes before unplugging connectors.

Step 2: Remove the engine cover and air intake ducting

• Pull up to remove the engine cover by hand.
• Use a flat-blade screwdriver to loosen the intake hose clamps.
• Use a trim clip removal tool to pop any intake snorkel clips, then remove the intake duct pieces.

Step 3: Create working room at the top of the transmission/engine area

• Use a 10mm socket to remove any small brackets or harness retainers that block access (set bolts aside in order).
• If a connector lock tab is present, release it with needle-nose pliers gently (do not yank on wires).

Step 4: Locate the starter and identify the two electrical connections

• The starter has a large battery cable on a stud (B+), and a smaller plug for the solenoid signal.
• Position your shop light to clearly see both connections before loosening anything.

Step 5: Remove the starter wiring (power first, then signal)

• Remove the protective rubber boot off the large starter terminal by hand.
• Use a 12mm socket to remove the nut on the large cable terminal, then lift the cable off the stud.
• Unplug the small solenoid connector by releasing the tab with a flat-blade screwdriver and pulling the connector straight off.
• If reusing the nut, store it immediately (a magnetic pickup tool helps if dropped).

Step 6: Raise the front (if needed for access)

• Place a floor jack (rated 2-ton minimum) under the front center jack point and lift the vehicle.
• Set the vehicle on jack stands (rated 2-ton minimum) at the proper support points.
• Keep the wheel chocks in place.

Step 7: Remove the starter mounting bolts

• Use a 14mm socket with a 12" extension to remove the first starter mounting bolt.
• Use a 14mm socket with a universal joint adapter and 6" extension to remove the second bolt if access is tight.
• Support the starter with your free hand as the last bolt comes out.

Step 8: Remove the starter motor

• Wiggle the starter straight out from the bellhousing area by hand.
• If it feels stuck, gently reposition it—do not pry hard on aluminum surfaces.

Step 9: Install the new starter and torque the mounting bolts

• Place the new starter into position by hand, ensuring it sits flush.
• Start both mounting bolts by hand (this prevents cross-threading).
• Use a 14mm socket and torque wrench to tighten both bolts: Torque to 39 Nm (29 ft-lbs).

Step 10: Reconnect the wiring and reassemble intake components

• Install the large cable terminal on the starter stud and thread the nut by hand.
• Use a 12mm socket and torque wrench to tighten the terminal nut: Torque to 9 Nm (80 in-lbs).
• Apply a small amount of dielectric grease to the connector seal, then plug in the solenoid connector until it clicks.
• Reinstall any brackets/retainers using a 10mm socket and snug them firmly.
• Reinstall the intake ducting and tighten hose clamps with a flat-blade screwdriver.
• Reinstall the engine cover by pressing it into place.

Step 11: Reconnect the battery

• Reinstall the negative battery terminal and tighten with a 10mm socket: Torque to 5 Nm (44 in-lbs).

---

✅ After Repair

• 🔁 Press Start and confirm the engine cranks strongly and starts normally.
• 🔎 Check that no warning lights appear related to disconnected sensors.
• 🔊 Listen for abnormal noises near the starter area (grinding usually means misalignment or loose bolts).
• 🧰 Recheck the starter mounting bolts and battery terminal tightness after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$1,050 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $370-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
