🔧 Rio - Starter Motor Replacement

The starter motor cranks your engine when you turn the key. If it’s failed (clicking, no-crank, or intermittent crank), replacement restores reliable starting.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: Stock 1.6L/manual starter layout and hardware.

---

⚠️ Safety & Precautions

• 🛑 Disconnect the battery negative cable first to prevent short circuits at the starter power cable.
• 🛑 Support the car with jack stands; never work under a car held only by a jack.
• 🛑 Keep metal tools away from the starter’s main power stud; it’s direct battery power.
• 🛑 Work on a cool engine/exhaust to avoid burns.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Metric socket set 8mm-19mm
• Metric wrench set 8mm-19mm
• Ratchet
• 3/8" drive torque wrench (10-100 Nm) (specialty)
• 6" socket extension
• 12" socket extension
• Universal joint socket adapter
• Phillips screwdriver
• Flat trim tool
• Needle-nose pliers
• Small wire brush
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter electrical terminal nut kit - Qty: 1
• Battery terminal anti-corrosion washers - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• 🧰 Park on level ground, put the transmission in neutral, and set the parking brake.
• 🧰 Chock the rear wheels with wheel chocks.
• 🧰 Open the hood and locate the battery.
• 🧰 If you’re new to it: a torque wrench is a tool that tightens bolts to an exact setting so you don’t strip or break them.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative (-) battery terminal clamp and remove it from the battery post.
• Move the cable aside so it cannot spring back onto the battery.
• When reinstalling later: Torque to 5 Nm (44 in-lbs)

Step 2: Raise and support the front of the car

• Use a floor jack (rated 2-ton minimum) to lift the front of the car at the proper front jacking point.
• Set the car down onto jack stands (rated 2-ton minimum).
• Confirm stability with a gentle push before you go underneath.

Step 3: Remove any lower splash shield (if equipped)

• Use a 10mm socket and Phillips screwdriver to remove the fasteners.
• Use a flat trim tool to pop plastic clips without breaking them.
• When reinstalling later: Torque to 8 Nm (71 in-lbs)

Step 4: Create access from the top (air duct/air box area)

• Use a flat trim tool and Phillips screwdriver to loosen/remove the intake snorkel/duct as needed.
• Use an 8mm socket to loosen hose clamps if your intake tube uses worm clamps.
• Take a photo before removing anything.

Step 5: Locate the starter and label the wires

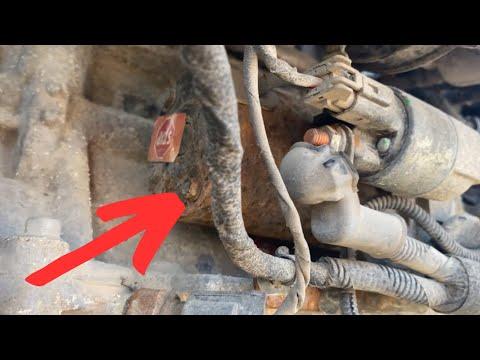

• The starter is mounted to the transmission bellhousing where the engine and transmission meet.
• Use a work light and identify: the thick battery cable on the large stud, and the small signal wire on the solenoid.
• Use needle-nose pliers to release any wire clips/retainers so the harness isn’t pulled tight.

Step 6: Disconnect the starter electrical connections

• Use a 10mm socket (typical) to remove the nut for the small solenoid terminal, then pull the connector off.
• Use a 12mm socket (typical) to remove the nut for the main battery cable on the large stud.
• Use a work light and keep hardware organized.
• When reinstalling later: small terminal nut Torque to 7 Nm (62 in-lbs)
• When reinstalling later: main terminal nut Torque to 12 Nm (106 in-lbs)

Step 7: Remove the starter mounting bolts

• Support the starter with one hand.
• Use a ratchet, 14mm socket, and a 6" socket extension (and universal joint socket adapter if needed) to remove the starter mounting bolts.
• Pull the starter straight out from the bellhousing.
• When reinstalling later: starter mounting bolts Torque to 49 Nm (36 ft-lbs)

Step 8: Compare the old and new starter

• Check mounting holes, nose length, electrical stud positions, and connector style match.
• Use a small wire brush to clean the cable ring terminals if they’re dirty.

Step 9: Install the new starter

• Position the starter into the bellhousing and start the mounting bolts by hand to avoid cross-threading.
• Use a ratchet to snug the bolts evenly.
• Use a 3/8" drive torque wrench (10-100 Nm) (specialty): Torque to 49 Nm (36 ft-lbs)

Step 10: Reconnect the electrical connections

• Apply a thin film of dielectric grease to the small connector seal area (not on the stud threads).
• Install the main battery cable onto the large stud and tighten using a 12mm socket: Torque to 12 Nm (106 in-lbs)
• Install the small signal wire and tighten using a 10mm socket: Torque to 7 Nm (62 in-lbs)
• Re-attach any harness clips using needle-nose pliers so wiring can’t rub or hang.

Step 11: Reinstall intake/splash shield and lower the car

• Reinstall the intake ducting using an 8mm socket and Phillips screwdriver (snug clamps; do not overtighten).
• Reinstall the lower splash shield using a 10mm socket and Phillips screwdriver: Torque to 8 Nm (71 in-lbs)
• Use the floor jack (rated 2-ton minimum) to lift slightly, remove jack stands (rated 2-ton minimum), and lower the car.

Step 12: Reconnect the battery and test

• Install the negative (-) battery terminal and tighten using a 10mm socket: Torque to 5 Nm (44 in-lbs)
• Start the engine and listen for a strong, consistent crank.
• If you hear grinding: shut off immediately and re-check starter seating and bolt torque.

---

✅ After Repair

• 🧪 Start the engine 5-10 times over a day to confirm consistent operation.
• 🧪 Check that no cables are loose and nothing is touching the exhaust or moving parts.
• 🧪 If the battery was weak, consider charging/testing it—low voltage can mimic starter problems.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $230-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
