🔧 Expedition - Starter Motor Replacement

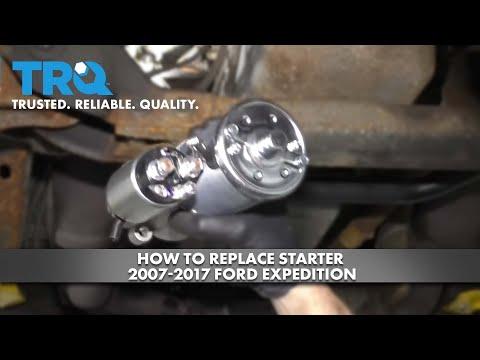

The starter motor is the electric motor that cranks your engine when you turn the key/start button. If it’s failing, you may hear a single click, slow cranking, or no crank at all. On your Expedition, the starter is mounted to the transmission bellhousing and is typically accessed from underneath.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🛑 Disconnect the negative battery cable before touching starter wiring (prevents short circuits).
• 🧯 Let the exhaust cool fully; the starter area can be near hot components.
• 🧱 Support the vehicle with jack stands; never rely on a floor jack alone.
• 🧤 Keep metal tools away from the starter B+ terminal; it can arc if the battery is connected.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 3/8" drive ratchet
• 3/8" drive extension set (3", 6", 12")
• 3/8" drive universal swivel adapter
• Torque wrench (10-100 ft-lbs)
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• Flat-blade screwdriver
• Trim clip removal tool
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Starter mounting bolts - Qty: 2 (replace if supplied/required)
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Disconnect the battery: use a 10mm socket to remove the negative (-) terminal and isolate it so it can’t spring back. Wrap with a rag for safety.
• Assumption (for DIY guidance): starter access is from underneath with the right-side splash shield removed; minor fastener sizes can vary by shield/aftermarket parts.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and secure the front of the Expedition

• Place wheel chocks behind the rear tires.
• Lift the front using a floor jack (rated 3-ton minimum) at the front jacking point.
• Set the frame on jack stands (rated 3-ton minimum) and gently rock the vehicle to confirm it’s stable.

Step 2: Remove the lower splash shield (as needed for access)

• Use an 8mm socket to remove small bolts/screws in the shield.
• Use a trim clip removal tool (a forked pry tool that pops plastic clips out) to remove plastic push pins.
• Use a work light to locate the starter at the transmission bellhousing area.

Step 3: Label and disconnect the starter wiring

• On the starter solenoid, locate the small control connector and the large battery cable (B+).
• Disconnect the small connector by releasing the tab with a flat-blade screwdriver, then pull it straight off.
• Remove the nut on the large B+ cable using a 13mm socket, then lift the cable off the stud.
• Apply a tiny amount of dielectric grease to the connector seal during reassembly. Keep grease off the metal contact surfaces.

Step 4: Remove the starter mounting bolts

• Support the starter with one hand (it’s heavier than it looks).
• Use a 15mm socket with a 3/8" drive extension set (3", 6", 12") and 3/8" drive universal swivel adapter to remove the starter mounting bolts.
• Lower the starter out carefully and note its orientation.

Step 5: Compare the new starter to the old one

• Match the mounting ears, electrical studs/connectors, and overall length.
• If your new starter includes new bolts, plan to use them.

Step 6: Install the new starter

• Position the starter into place by hand.
• Start both mounting bolts by hand first (prevents cross-threading).
• Tighten with a 15mm socket, then final-tighten using a torque wrench (10-100 ft-lbs).
• Torque to 35 Nm (26 ft-lbs) for starter mounting bolts (common Ford spec; verify if you have OEM service info for your exact fastener set).

Step 7: Reconnect the starter wiring

• Install the large B+ cable onto the stud and tighten the nut using a 13mm socket.
• Torque to 13 Nm (115 in-lbs) for the B+ terminal nut (do not over-tighten; stud can break).
• Reconnect the small control connector until it clicks into place.
• Double-check that wiring is routed away from sharp edges and hot exhaust parts.

Step 8: Reinstall the splash shield

• Reinstall push pins using a trim clip removal tool to align them, then push to lock.
• Reinstall screws/bolts using an 8mm socket.

Step 9: Reconnect the battery and lower the vehicle

• Reconnect the negative battery terminal using a 10mm socket.
• Remove the jack stands and lower the vehicle using a floor jack (rated 3-ton minimum).

---

✅ After Repair

• 🔍 Start the engine and confirm it cranks strongly with no clicking or grinding noises.
• 🔌 Check for warning lights; if any appear, re-check all electrical connections at the starter and battery.
• 🧪 With the engine running, verify there’s no burning smell or smoke near the starter wiring (sign of a loose/dirty connection).

---

💰 DIY vs Shop Cost

Shop Cost: $550-$950 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $370-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
