🔧 Canyon - Starter Motor Replacement

The starter motor spins your engine so it can start. When it fails, you’ll often get a single click, slow cranking, or no crank at all even with a good battery.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

Assumption: 3.6L V6, RWD, stock exhaust/underbody shields.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a short (starter cable is always “hot”).
• ⚠️ Support your Canyon with jack stands on the frame; never rely on a floor jack.
• ⚠️ Let the exhaust cool fully; the starter sits near hot components.
• ⚠️ Keep the key away from the truck while working (prevents accidental crank).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Ratchet (3/8" drive)
• Ratchet (1/2" drive)
• Socket set metric 8mm-18mm
• 10mm socket
• 13mm socket
• 15mm socket
• Extension set 3"-12" (3/8" drive)
• Universal joint adapter (3/8" drive)
• Wrench set metric 10mm-15mm
• Trim clip tool
• Flat screwdriver
• Torque wrench 10-200 Nm (7-150 ft-lbs)
• Battery terminal puller (specialty)
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Starter mounting bolts - Qty: 2
• Dielectric grease - Qty: 1
• Battery terminal anti-corrosion pads - Qty: 2

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and make sure the key is out of the vehicle.
• Plan your work area lighting from underneath (starter is easiest from below).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative (-) battery terminal and remove it.
• If the terminal is stuck, use a battery terminal puller (specialty) (it lifts the clamp off without damage).
• Tuck the cable aside so it cannot spring back onto the battery post.

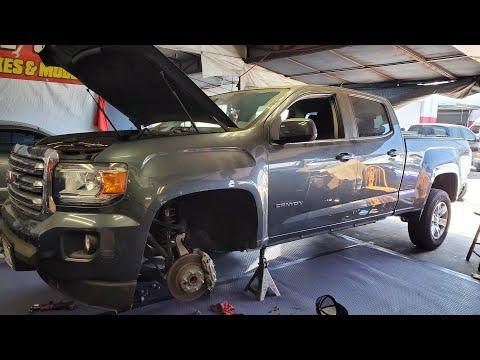

Step 2: Raise and support the truck

• Place wheel chocks behind the rear tires.
• Lift the front with a floor jack (rated 3-ton minimum) at a proper front jacking point.
• Set it down on jack stands (rated 3-ton minimum) under the frame.
• Give the truck a firm shake to confirm it’s stable before going underneath.

Step 3: Remove any lower shield (if equipped)

• Use a trim clip tool and flat screwdriver to remove any plastic push-clips.
• Use your socket set metric 8mm-18mm to remove any small bolts holding the shield.
• Set the shield and fasteners aside in a small pile so nothing gets lost.

Step 4: Locate the starter and label the wires

• The starter is mounted at the rear/side of the engine where it meets the transmission (bellhousing area).
• Use a work light to clearly see the solenoid (small cylinder on the starter) and the wiring.
• Tip: Take a photo before unplugging anything.

Step 5: Disconnect the starter electrical connections

• Remove the main battery cable nut on the starter solenoid using a 13mm socket or 13mm wrench (size may vary slightly by starter brand).
• Pull the heavy cable off and move it aside so it can’t touch metal.
• Disconnect the small “signal” wire connector (often a push-on or small nut) using a flat screwdriver (for a locking tab) or a 10mm socket (if it uses a nut).
• Apply a thin film of dielectric grease to the small connector on reassembly (helps prevent corrosion).

Step 6: Remove the starter mounting bolts

• Support the starter with one hand (it’s heavier than it looks).
• Use a 15mm socket with a ratchet (1/2" drive), plus a extension set 3"-12" (3/8" drive) as needed to reach the bolts.
• If access is tight, add a universal joint adapter (3/8" drive) to angle the socket.
• Remove the bolts and lower the starter out carefully.

Step 7: Compare parts and transfer any heat shield/bracket (if present)

• Set the old and new starter side-by-side and verify the mounting holes and electrical studs match.
• If the old starter has a heat shield or small bracket, move it to the new starter using the appropriate socket from your socket set metric 8mm-18mm.

Step 8: Install the new starter

• Position the new starter and start both mounting bolts by hand to avoid cross-threading.
• Tighten the mounting bolts with a ratchet (1/2" drive) and 15mm socket.
• Final-tighten with a torque wrench 10-200 Nm (7-150 ft-lbs) to Torque to OEM specification for your Canyon’s starter mounting bolts.
• Tip: Hand-starting bolts prevents expensive thread damage.

Step 9: Reconnect the electrical connections

• Reinstall the small signal wire connector until it clicks/locks, or tighten its nut using a 10mm socket if equipped.
• Install the main battery cable onto the solenoid stud and tighten the nut using a 13mm socket.
• Final-tighten electrical fasteners with a torque wrench 10-200 Nm (7-150 ft-lbs) to Torque to OEM specification (do not overtighten—studs can break).
• Route wiring exactly like it was so it cannot touch the exhaust or steering components.

Step 10: Reinstall any lower shield and lower the truck

• Reinstall the shield using your socket set metric 8mm-18mm and any clips with the trim clip tool.
• Raise slightly with the floor jack (rated 3-ton minimum), remove jack stands (rated 3-ton minimum), and lower the truck.

Step 11: Reconnect the battery

• Install battery terminal anti-corrosion pads if you’re using them.
• Reconnect the negative (-) battery terminal and tighten using a 10mm socket.
• Final-tighten using a torque wrench 10-200 Nm (7-150 ft-lbs) to Torque to OEM specification.

---

✅ After Repair

• Start the engine and confirm it cranks strongly with no clicking or grinding noises.
• With the engine running, check underneath for any loose wiring near the starter.
• Turn the engine off and recheck the battery terminal is snug.
• If you get a no-crank after install, recheck the small signal wire connection first (it’s easy to miss).

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $300-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
