🔧 Highlander - Starter Motor Replacement

On your Highlander’s V6, the starter sits in the “valley” of the engine under the upper intake manifold. To replace it, you’ll remove the intake ducting and upper intake manifold, swap the starter, then reinstall everything with new gaskets so you don’t create a vacuum leak.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

Assumption: V6 starter is under the upper intake manifold (typical layout).

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before touching the starter wiring (prevents short circuits).
• ⚠️ Work on a cool engine; the intake area can burn you if hot.
• ⚠️ Keep bolts/tools out of the intake ports; cover openings with clean rags.
• ⚠️ Do not pry on plastic intake parts; they crack easily with age.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm wrench
• 8mm socket
• 10mm socket
• 12mm socket
• 14mm socket
• 1/4" drive ratchet
• 3/8" drive ratchet
• 3/8" drive extension set (3", 6", 10")
• 3/8" drive wobble extension (specialty)
• Torque wrench (10–100 Nm range)
• Flathead screwdriver
• Pliers
• Trim clip removal tool (specialty)
• Magnetic pickup tool (specialty)
• Shop towels
• Masking tape
• Paint marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Upper intake manifold gasket set - Qty: 1
• Throttle body gasket - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the hood and remove the plastic engine cover (pull up firmly if it’s on ball-studs).
• Use masking tape to label any vacuum hoses and electrical connectors you unplug.
• Disconnect the negative battery cable using a 10mm wrench and isolate it so it can’t spring back. This is required.
• A torque wrench is used to tighten bolts to the correct tightness so you don’t strip threads or cause leaks.
• A wobble extension is an extension that “bends” slightly to reach awkward bolts without rounding them.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the air intake ducting

• Loosen the intake hose clamps using an 8mm socket or flathead screwdriver.
• Unplug the intake/airbox sensor connectors by hand (press the tab first).
• Remove the intake tube/air duct and set it aside.

Step 2: Disconnect the throttle body connections

• Unplug the throttle body electrical connector by hand.
• If equipped with small coolant hoses at the throttle body, use pliers to slide the hose clamps back and carefully pull the hoses off (have shop towels ready).

Step 3: Remove the throttle body

• Remove the throttle body mounting bolts using a 10mm socket.
• Remove the throttle body and old gasket.
• Cover the opening with a clean towel to keep debris out.
• During reassembly: Torque to 10 Nm (89 in-lbs).

Step 4: Remove the upper intake manifold (plenum)

• Disconnect the PCV/vacuum hoses and EVAP line connections using pliers and your hands (use your tape labels).
• Unplug any remaining electrical connectors attached to the upper intake manifold by hand.
• Remove the upper intake manifold bolts/nuts using a 12mm socket with a 3/8" drive ratchet and extensions.
• Lift the upper intake manifold straight up and out.
• Immediately stuff clean shop towels into the exposed intake ports.
• During reassembly: Torque to 21 Nm (15 ft-lbs).

Step 5: Access the starter and disconnect the wiring

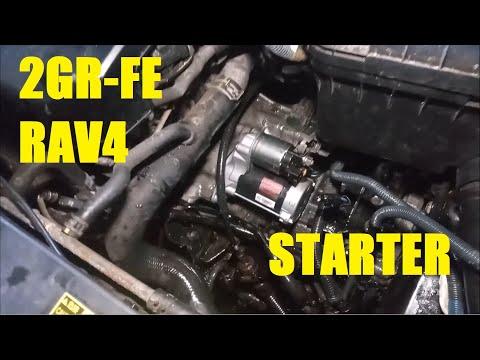

• Locate the starter in the engine valley.
• Remove the small starter signal wire connector by hand (press the lock tab).
• Remove the main battery cable nut on the starter using a 12mm socket, then pull the cable off.
• Apply a thin coat of dielectric grease to the terminal boot area during reassembly.

Step 6: Remove the starter mounting bolts and remove the starter

• Remove the starter mounting bolts using a 14mm socket, 3/8" drive ratchet, and a wobble extension (specialty) as needed.
• Lift the starter out carefully. Use a magnetic pickup tool (specialty) if a bolt tries to fall into the valley.
• During reassembly: Torque to 39 Nm (29 ft-lbs).

Step 7: Install the new starter

• Set the new starter into place by hand.
• Start both mounting bolts by hand first (prevents cross-threading).
• Tighten using a 14mm socket, then finish with a torque wrench: Torque to 39 Nm (29 ft-lbs).
• Reconnect the main battery cable using a 12mm socket, then reconnect the small signal wire connector by hand until it clicks.

Step 8: Reinstall the upper intake manifold with new gaskets

• Remove the towels from the intake ports.
• Install the new upper intake manifold gaskets onto the manifold.
• Set the upper intake manifold in place carefully.
• Thread bolts/nuts by hand, then tighten evenly using a 12mm socket.
• Final tighten with a torque wrench: Torque to 21 Nm (15 ft-lbs).

Step 9: Reinstall throttle body and intake ducting

• Install a new throttle body gasket.
• Reinstall the throttle body using a 10mm socket.
• Final tighten with a torque wrench: Torque to 10 Nm (89 in-lbs).
• Reconnect coolant hoses (if equipped) using pliers to position clamps.
• Reconnect all electrical connectors by hand (listen/feel for the click).
• Reinstall the intake tube and tighten clamps using an 8mm socket or flathead screwdriver.

Step 10: Reconnect the battery

• Reconnect the negative battery cable using a 10mm wrench.
• Make sure the terminal is fully seated and secure.

---

✅ After Repair

• Start the engine and confirm it cranks strongly and starts normally.
• Let it idle for a few minutes and listen for hissing (a hiss can mean a vacuum leak at the intake manifold gasket).
• Check the dash for a check-engine light. If it appears, recheck every connector you unplugged (especially throttle body).
• Take a short test drive, then recheck for any fuel smell, odd idle, or warning lights.

---

💰 DIY vs Shop Cost

Shop Cost: $700-$1,200 (parts + labor)

DIY Cost: $200-$450 (parts only)

You Save: $500-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
