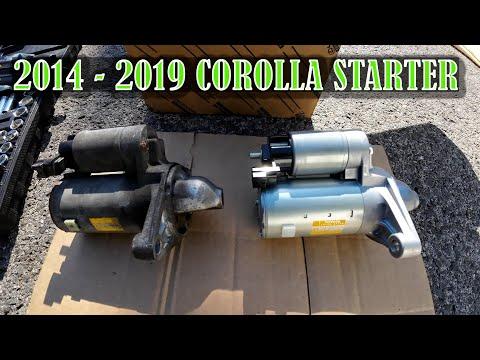

🔧 Corolla - Starter Motor Replacement

The starter motor cranks your engine when you turn the key/start button. If it’s failing, you may get a click/no-crank, slow cranking, or intermittent starting. This job is mostly access and careful handling of the electrical connections.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: Steps below match the 1.8L layout; minor access differences can exist by equipment.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent sparks/shorts.
• ⚠️ Never let a tool bridge the starter power stud to metal (it can arc like welding).
• ⚠️ Support the car with jack stands if you go underneath; never rely on a jack.
• ⚠️ Work on a cool engine; the exhaust area can burn you.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive extensions (3" and 6")
• 3/8" drive wobble extension
• Torque wrench (10-80 ft-lbs)
• 10mm combination wrench
• Needle-nose pliers
• Trim clip tool
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Battery terminal anti-corrosion washers - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Use wheel chocks behind the rear wheels.
• Open the hood and keep your keys away from the car while working.
• Plan your access: you may reach the starter from above, but lifting the front can make removal easier.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket (or 10mm combination wrench) to loosen the negative battery terminal and remove it.
• Tuck the cable aside so it can’t spring back onto the battery post.
• Tip: Remove negative first, install negative last.

Step 2: Remove the air intake ducting for access

• Use a 10mm socket to loosen the hose clamp(s) on the intake tube.
• Unclip/remove any small hoses or clips using needle-nose pliers and a trim clip tool.
• Lift out the intake tube/air ducting and set it aside.
• Definition: A hose clamp is the metal band that tightens a hose to a fitting.

Step 3: Raise the front of the car (recommended)

• Place wheel chocks, then lift the front with a floor jack at the front center jack point.
• Set the car down onto jack stands at the proper support points.
• Give the car a gentle shake to confirm it’s stable before going underneath.

Step 4: Locate the starter

• Use a work light to find the starter where the engine meets the transmission (bellhousing area).
• You’ll see a small cylinder with a thicker cable on a stud (battery power) and a smaller trigger wire connector.

Step 5: Remove the starter electrical connections

• Remove the rubber boot covering the starter power stud by hand.
• Use a 12mm socket to remove the nut holding the main battery cable to the starter stud, then lift the cable off.
• Disconnect the small trigger-wire connector by releasing the tab (use needle-nose pliers gently if needed).
• Tip: Pull on the connector body, not the wire.
• Torque (reinstall): Torque to 9 Nm (80 in-lbs) for the main cable nut (do not over-tighten the stud).

Step 6: Remove the starter mounting bolts

• Support the starter with one hand.
• Use a 14mm socket with a 3/8" drive ratchet and extensions (add a wobble extension if needed) to remove the starter mounting bolts.
• Remove the starter from the bellhousing and maneuver it out carefully.
• Torque (reinstall): Torque to 39 Nm (29 ft-lbs) for the starter mounting bolts.
• Definition: A wobble extension allows slight angle to reach tight bolts.

Step 7: Install the new starter

• Position the new starter in place by hand.
• Start both mounting bolts by hand first (prevents cross-threading).
• Use a 14mm socket to snug them, then use a torque wrench (10-80 ft-lbs) to finish: Torque to 39 Nm (29 ft-lbs).

Step 8: Reconnect the starter wiring

• Reconnect the small trigger-wire connector until it clicks.
• Install the main battery cable onto the stud and tighten with a 12mm socket: Torque to 9 Nm (80 in-lbs).
• Reinstall the rubber boot over the power stud.

Step 9: Reinstall the intake ducting

• Refit the intake tube/ducting in the same position as removed.
• Use a 10mm socket to tighten the hose clamp(s).
• Reconnect any hoses/clips removed earlier.

Step 10: Lower the car and reconnect the battery

• Lift slightly with the floor jack, remove jack stands, then lower the car.
• Reconnect the negative battery terminal using a 10mm socket.

---

✅ After Repair

• Start your Corolla and confirm it cranks strongly and starts normally.
• Listen for abnormal grinding; if heard, shut off and recheck starter seating/bolts.
• Verify no warning lights are on; if a light appears, recheck connectors and battery terminal tightness.
• Check that the intake tube is fully seated (a loose intake can cause rough idle).

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $330-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
